STDatasheet (PDF)

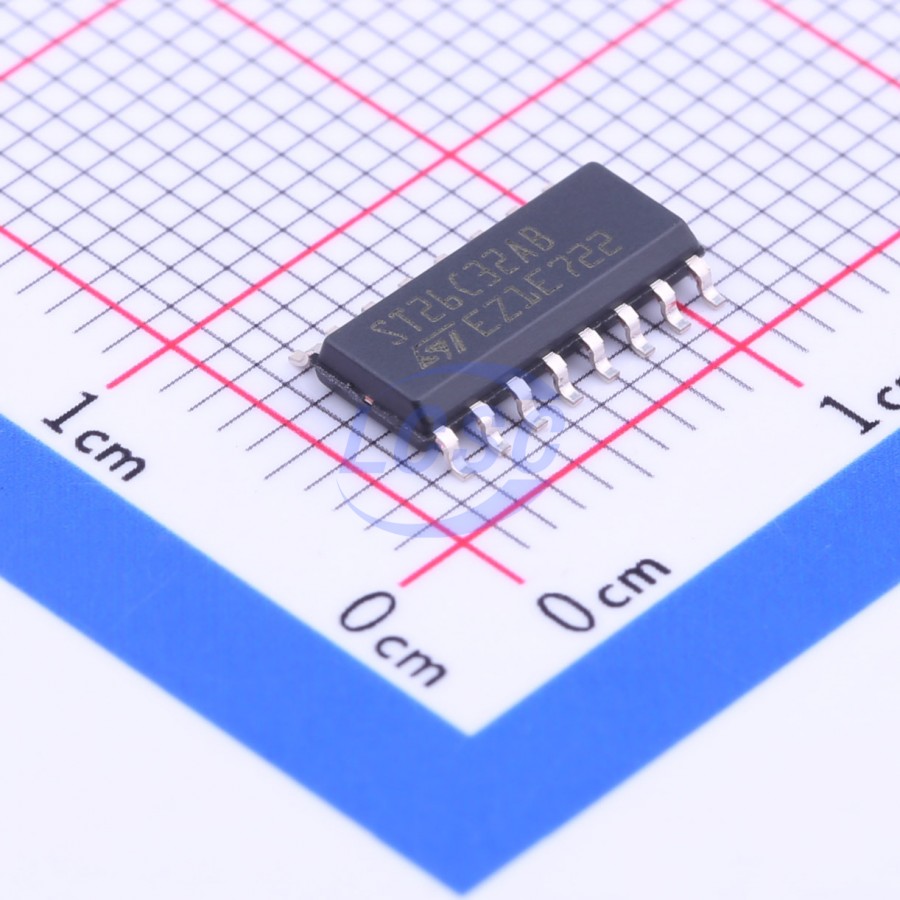

ST26C32ABDR
4.5V~5.5V Receiver 20Mbps SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS3 CompliantActive
CMOS quad 3-state differential line receiver
- Manufacturer
- ST
- Manufacturer part #
- ST26C32ABDR
- Store part #
- C157432
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,794 in stock
#C157432
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.75 | ₹80.75 |
| 10+ | ₹63.23 | ₹632.30 |
| 30+ | ₹55.64 | ₹1,669.20 |
| 100+ | ₹46.43 | ₹4,643.00 |
| 500+ | ₹42.27 | ₹21,135.00 |
| 1,000+ | ₹39.74 | ₹39,740.00 |
1 × ₹80.75
₹80.75
excl. GST
₹95.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST26C32ABDR
₹80.75 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Receiver
- Data Rate
- 20Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Drivers
- 0
- Features
- Enable shutdown
- Number of Receivers
- 4
- Quiescent Supply Current
- 16mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.284 g
Overview
The ST26C32AB is a quad differential line receiver designed to meet the RS- 422,RS- 423 standards for balanced and unbalanced digital data transmission, while retaining the low power characteristics of CMOS. The ST26C32AB has an input sensitivity of 200 mV over the common mode input voltage range of ± 7V. The ST26C32AB features internal pull- up and pull- down resistors which prevent output oscillation on unused channels.The ST26C32AB provides an enable and disable function to all four receivers and features 3- state output with 6 mA source and sink capability.
Key features
- CMOS design for low power
- ± 0.2V sensitivity over input common mode voltage range
- Typical propagation delay: 19 ns
- Typical input hysteresis: 60 mV
- Input will not load line when VCC = 0V
- Meets the requirements of EIA standard RS- 422,RS- 423
- 3- state outputs for connection to system buses
- Available in surface mount
