STDatasheet (PDF)

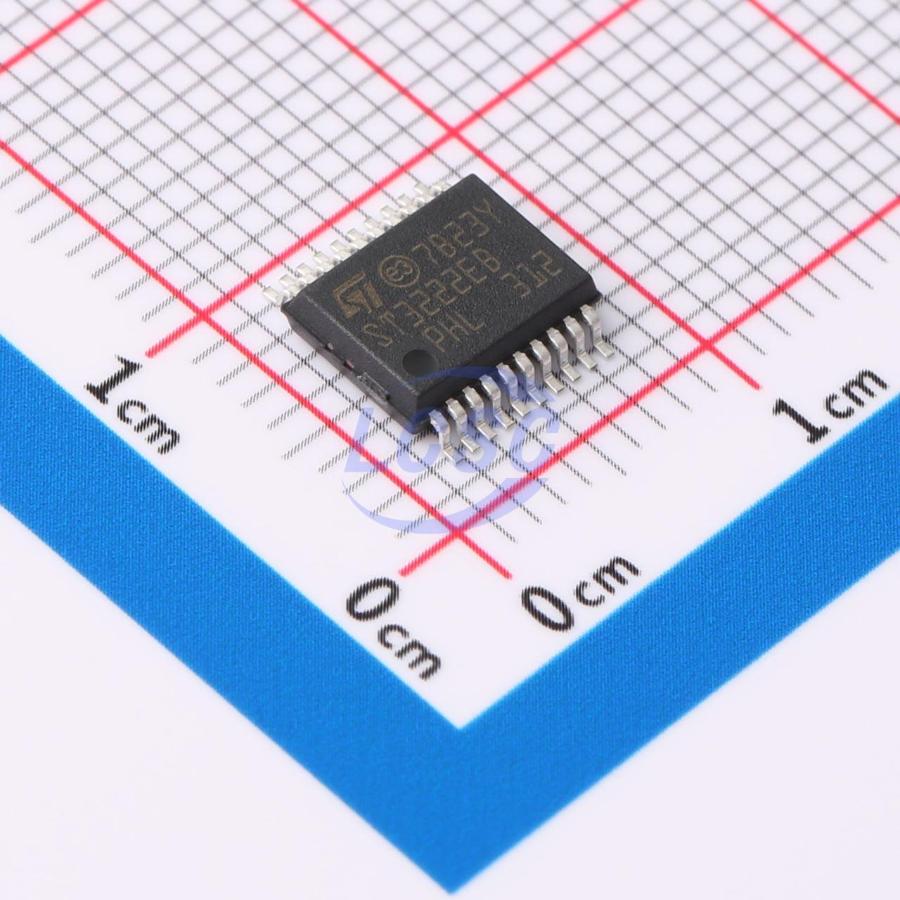

ST3222EBPR
Transceiver 3V~5.5V 250Kbps SSOP-20 Drivers, Receivers, Transceivers RoHS
SSOP-20ROHS3 CompliantActive
ST3222E 3 V powered EIA/TIA-232 and V.28/V.24 communications interface
- Manufacturer
- ST
- Manufacturer part #
- ST3222EBPR
- Store part #
- C2970316
- Package / case
- SSOP-20
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,507 in stock
#C2970316
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.33 | ₹174.33 |
| 10+ | ₹143.23 | ₹1,432.30 |
| 30+ | ₹126.37 | ₹3,791.10 |
| 100+ | ₹107.15 | ₹10,715.00 |
| 500+ | ₹98.51 | ₹49,255.00 |
| 1,350+ | ₹94.62 | ₹1,27,737.00 |
1 × ₹174.33
₹174.33
excl. GST
₹205.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,350 per reel
ST3222EBPR
₹174.33 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,350 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
The ST3222E is a 3 V powered EIA/TIA - 232 and V.28/V.24 communications interface with low power requirement, high data - rate capabilities and enhanced ±15 kV static discharge (ESD) protection to ± 8 kV using IEC1000 - 4 - 2 Contact Discharge and ±15 kV using the Human Body Model. ST3222E has 5 V proprietary low dropout transmitter output stage providing true RS - 232 performance from 3 to 5 V supplies with a dual charge pump. The charge pump requires only four small 0.1 mF external capacitors for operation from 3 V supply. The device has two receivers and two drivers. The ST3222E features a 1 mA shutdown mode that reduces power consumption and extends battery life in portable systems. Its receivers can remain active in shutdown mode, allowing external devices such as modems to be monitored using only 1 mA supply current.
Applications
- Notebook
- Sub - notebook
- Palmtop
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ICL3222EIAZ-T#C2671927RENESAS · SSOP-20-208mil | RENESAS | SSOP-20-208mil | 9 | ₹256.20 · 9 in stock | View |
 | SN65C3223EDBR#C2671417TI · SSOP-20-208mil | TI | SSOP-20-208mil | 9 | ₹715.78 · 9 in stock | View |
 | MAX3222EEAP+T#C407907MAXIM · SSOP-20-208mil | MAXIM | SSOP-20-208mil | 342 | ₹416.12 · 342 in stock | View |
| MAX3223ECDBR#C2671159TI · SSOP-20-208mil | TI | SSOP-20-208mil | 5 | ₹492.45 · 5 in stock | View | |
 | TRS3223ECDBR#C2671375TI · SSOP-20-208mil | TI | SSOP-20-208mil | 10 | ₹679.72 · 10 in stock | View |
