STDatasheet (PDF)

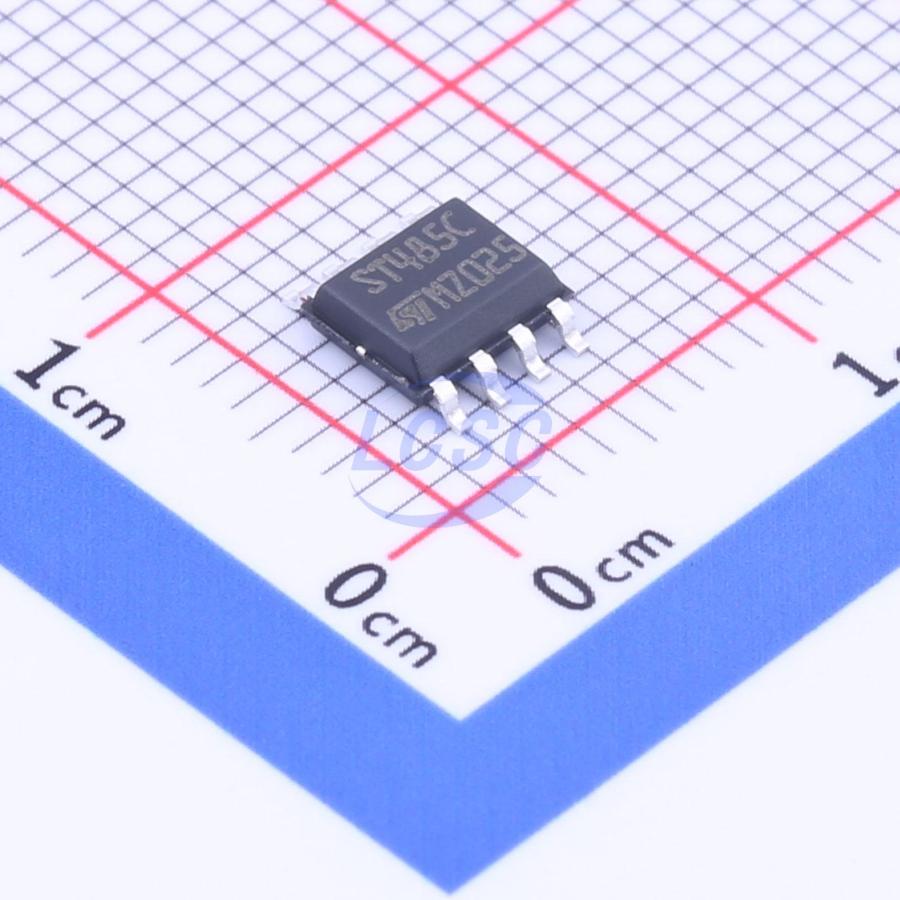

ST485CDR
4.75V~5.25V Transceiver 2.5Mbps 64 SO-8 Drivers, Receivers, Transceivers RoHS
SO-8ROHS3 CompliantActive
Low power RS-485/RS-422 transceiver
- Manufacturer
- ST
- Manufacturer part #
- ST485CDR
- Store part #
- C970563
- Package / case
- SO-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,065 in stock
#C970563
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.82 | ₹87.82 |
| 10+ | ₹72.21 | ₹722.10 |
| 30+ | ₹64.18 | ₹1,925.40 |
| 100+ | ₹56.37 | ₹5,637.00 |
| 500+ | ₹44.89 | ₹22,445.00 |
| 1,000+ | ₹42.51 | ₹42,510.00 |
1 × ₹87.82
₹87.82
excl. GST
₹103.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST485CDR
₹87.82 for 1 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Number of Nodes
- 64
- Operating Temperature
- 0℃~+70℃
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 300uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.269 g
Overview
The ST485 is a low power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. This transceiver consumes 300 μA current when unloaded and typically less when loaded. It operates on a single 5 V supply. Driver is short-circuit current limited and is protected against excessive power dissipation by thermal shutdown circuitry that places the unused outputs in a high-impedance state. The ST485 is designed for bidirectional (half-duplex applications).
Key features
- 300 μA
- Operate from a single 5 V
- Current limiting and thermal shutdown
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ST485ERBDR#C495230ST · SO-8 | ST | SO-8 | 1,042 | ₹150.58 · 1,042 in stock | View |
 | ST485BDR#C91197ST · SOIC-8 | ST | SOIC-8 | 25,535 | ₹64.95 · 25,535 in stock | View |
 | ST485CDR-TUDI#C54741413Tudi · SOP-8 | Tudi | SOP-8 | 190 | ₹38.92 · 190 in stock | View |
 | ST485BDR-TUDI#C54741412Tudi · SOP-8 | Tudi | SOP-8 | 100 | ₹38.92 · 100 in stock | View |
 | SN65HVD485EDR#C27899TI · SOIC-8 | TI | SOIC-8 | 6,468 | ₹73.66 · 6,468 in stock | View |
