TDSEMICDatasheet (PDF)

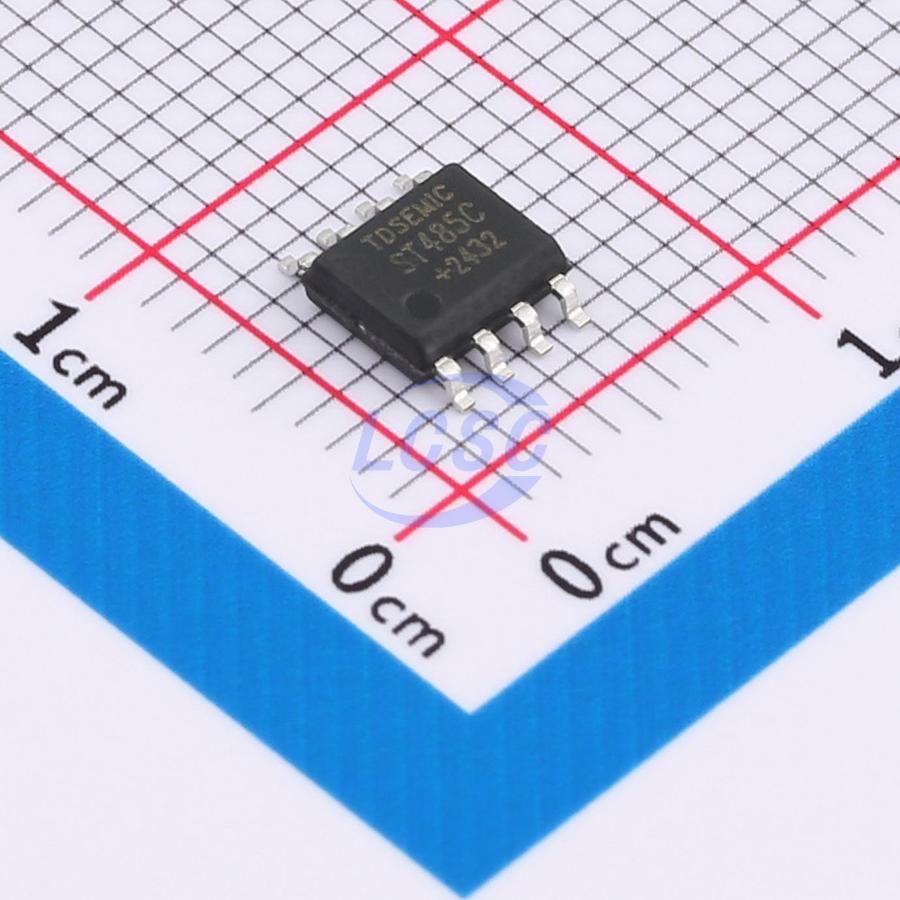

ST485CDR-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
ST485CDR Low Power RS-485 Transceiver
- Manufacturer
- TDSEMIC
- Manufacturer part #
- ST485CDR-TD
- Store part #
- C41369857
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,140 in stock
#C41369857
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.42 | ₹117.10 |
| 50+ | ₹20.45 | ₹1,022.50 |
| 150+ | ₹19.18 | ₹2,877.00 |
| 500+ | ₹17.60 | ₹8,800.00 |
| 2,500+ | ₹16.88 | ₹42,200.00 |
| 5,000+ | ₹16.46 | ₹82,300.00 |
5 × ₹23.42
₹117.10
excl. GST
₹138.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST485CDR-TD
₹117.10 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V;5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±1.5kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
The ST485CDR is a transceiver IC for RS-485 and RS-422 communication systems. The IMN485 supports data transmission rates up to 2.5Mbps for both transmit and receive. The 485 operates in half-duplex mode. In addition, the 485 features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both driver and receiver outputs are high-impedance. The ST485CDR incorporates fail-safe protection. When in receive mode, the receiver output remains high when the input is open-circuited or short-circuited.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level shifting
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD protection: ±1500V - Human Body Model (HBM)
- Three-state output half-duplex bus supports up to 128 transceivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TD485DR#C46614322TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,750 | ₹16.01 · 3,750 in stock | View |
 | MAX485ESA-TD#C41369783TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 9,030 | ₹31.71 · 9,030 in stock | View |
 | MAX487CSA-TD#C41369784TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,130 | ₹34.99 · 2,130 in stock | View |
 | MAX487ECSA-TD#C41369785TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,385 | ₹45.33 · 2,385 in stock | View |
 | MAX487ESA-TD#C41369787TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,305 | ₹44.57 · 2,305 in stock | View |
