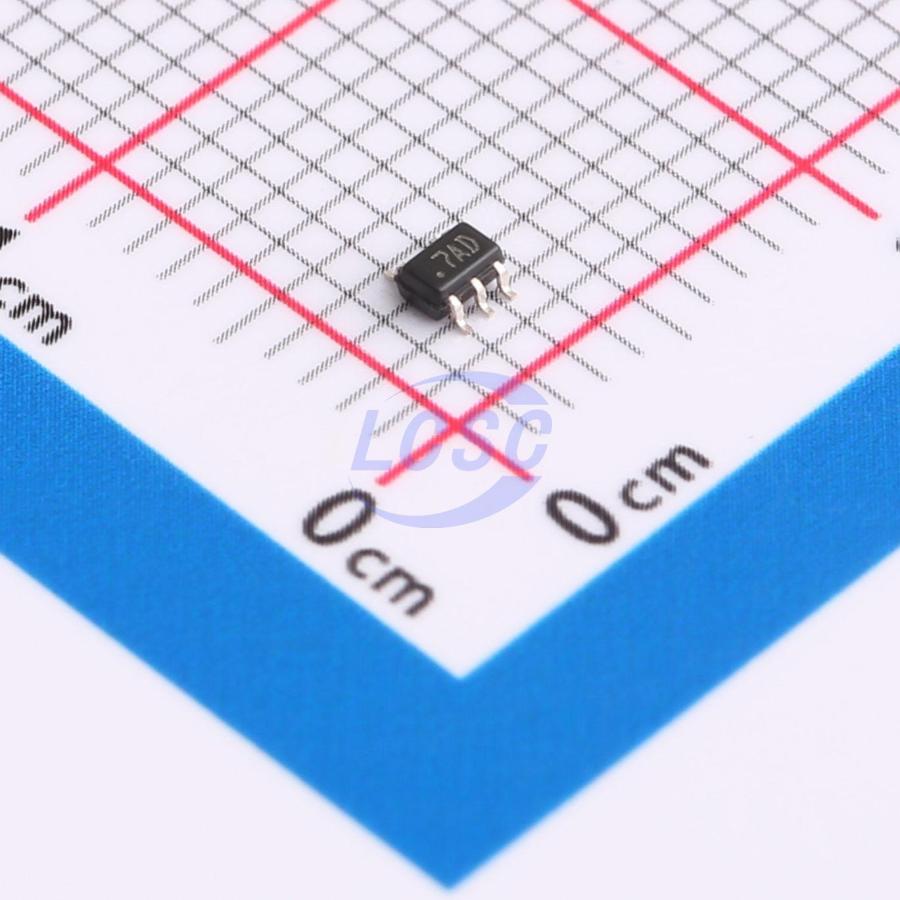

ST715CR

1.2V~5V Positive Adjustable SOT-323-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-323-5ROHS3 CompliantActive

High input voltage, 85 mA LDO linear regulator

Manufacturer: ST
Manufacturer part #: ST715CR
Store part #: C3748933
Package / case: SOT-323-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23 in stock

#C3748933

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹233.79	₹233.79
10+	₹196.00	₹1,960.00
30+	₹172.60	₹5,178.00
100+	₹148.35	₹14,835.00
500+	₹137.39	₹68,695.00
1,000+	₹132.67	₹1,32,670.00

Quantity (min 1)

1 × ₹233.79

₹233.79

excl. GST

₹275.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ST715CR

₹233.79 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V~5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 6.5uA
Output Configuration: Positive
Output Current: 85mA
Operating Voltage: 24V
Features: Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.188 g

Overview

The ST715 is a high voltage, ultra low quiescent current and low drop linear regulator capable of providing 2.5 V to 24 V. It can supply current in excess of 85 mA. The device operates over an input voltage range from 2.5 V to 24 V, and it is stable with output ceramic capacitors. Fault protection includes short-circuit current limitation. The ultra low quiescent current of 3.8 µA at full load makes it highly suitable for low power applications and battery-powered systems. The wide input voltage range makes the ST715 an ideal solution for low power industries.
