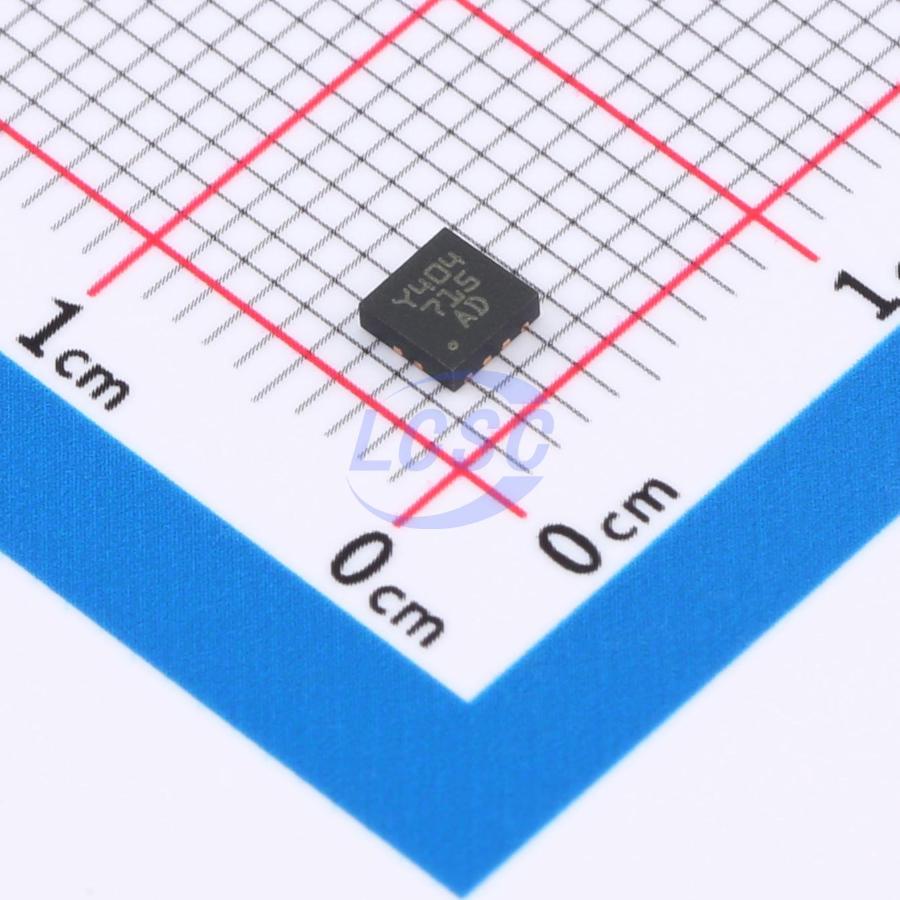

ST715PUR
Positive Adjustable DFN-8-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-8-EP(3x3)ROHS3 CompliantActive
High input voltage, 85 mA LDO linear regulator
- Manufacturer
- ST
- Manufacturer part #
- ST715PUR
- Store part #
- C2970414
- Package / case
- DFN-8-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C2970414
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.20 | ₹146.20 |
| 10+ | ₹121.45 | ₹1,214.50 |
| 30+ | ₹107.88 | ₹3,236.40 |
| 100+ | ₹92.39 | ₹9,239.00 |
| 500+ | ₹85.70 | ₹42,850.00 |
| 1,000+ | ₹82.48 | ₹82,480.00 |
1 × ₹146.20
₹146.20
excl. GST
₹172.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ST715PUR
₹146.20 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.75uA
- Output Configuration
- Positive
- Output Current
- 85mA
- Operating Voltage
- 24V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.081 g
Overview
The ST715 is a high voltage, ultra low quiescent current and low drop linear regulator capable of providing 2.5 V to 24 V. It can supply current in excess of 85 mA. The device operates over an input voltage range from 2.5 V to 24 V, and it is stable with output ceramic capacitors. Fault protection includes short-circuit current limitation. The ultra low quiescent current of 3.8 µA at full load makes it highly suitable for low power applications and battery-powered systems. The wide input voltage range makes the ST715 an ideal solution for low power industries.
Applications
- Mobie phones
- Persona systems
