STDatasheet (PDF)

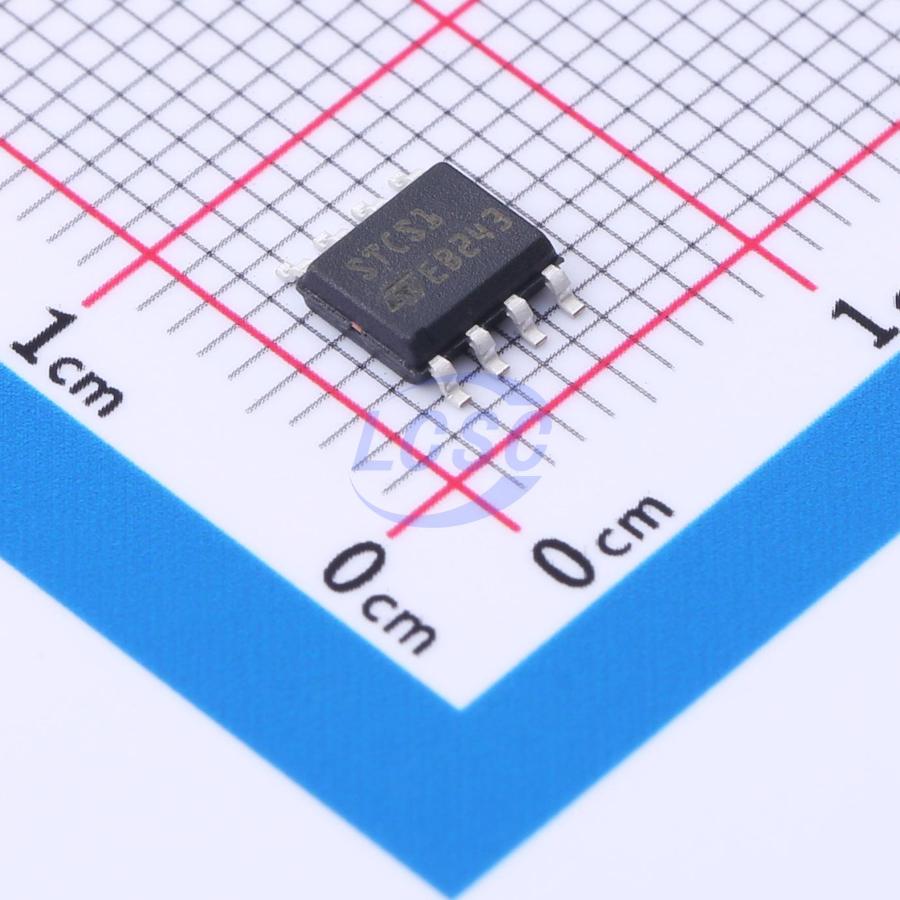

STCS1PHR
50kHz PWM 1 DC-DC 1.5A 4.5V~40V SOIC-8-EP LED Drivers RoHS
SOIC-8-EPROHS3 CompliantActive
Constant current LED driver
- Manufacturer
- ST
- Manufacturer part #
- STCS1PHR
- Store part #
- C2678538
- Package / case
- SOIC-8-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,474 in stock
#C2678538
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹299.86 | ₹299.86 |
| 10+ | ₹251.52 | ₹2,515.20 |
| 30+ | ₹221.38 | ₹6,641.40 |
| 100+ | ₹190.37 | ₹19,037.00 |
| 500+ | ₹176.49 | ₹88,245.00 |
| 1,000+ | ₹170.43 | ₹1,70,430.00 |
1 × ₹299.86
₹299.86
excl. GST
₹353.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STCS1PHR
₹299.86 for 1 + GST
Specifications
- Frequency - Switching
- 50kHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Operating Temperature
- -40℃~+150℃
- Features
- LED open-circuit protection;Over-Temperature Protection (OTP)
- Constant Current Accuracy
- 10%
- Voltage - Input(DC)
- 4.5V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
The STCS1 is a BiCMOS constant current source designed to provide a precise constant current starting from a varying input voltage source. The main target is to replace 5 V, 12 V, 24 V component solution for driving LEDs in low voltage applications.
Applications
- Constant current supply for LEDs with varying input voltage
- Low-voltage lighting
- Small appliance LED lighting
- Automotive LED lighting
Key features
- Input voltage up to 40V
- Voltage overhead less than 0.5V
- Output current up to 1.5A
- PWM dimming pin
- Shutdown pin
- LED open-circuit diagnostic function
- Available in DFN8 (3x3mm) and PowerSO-8 packages
- Current set via external resistor, up to 1.5A, ±10% accuracy
- Current consumption less than 1μA in shutdown mode
- PWM dimming input frequency range from a few Hz to 50kHz
- LED string open-circuit or fault detection with status output via DISC pin
