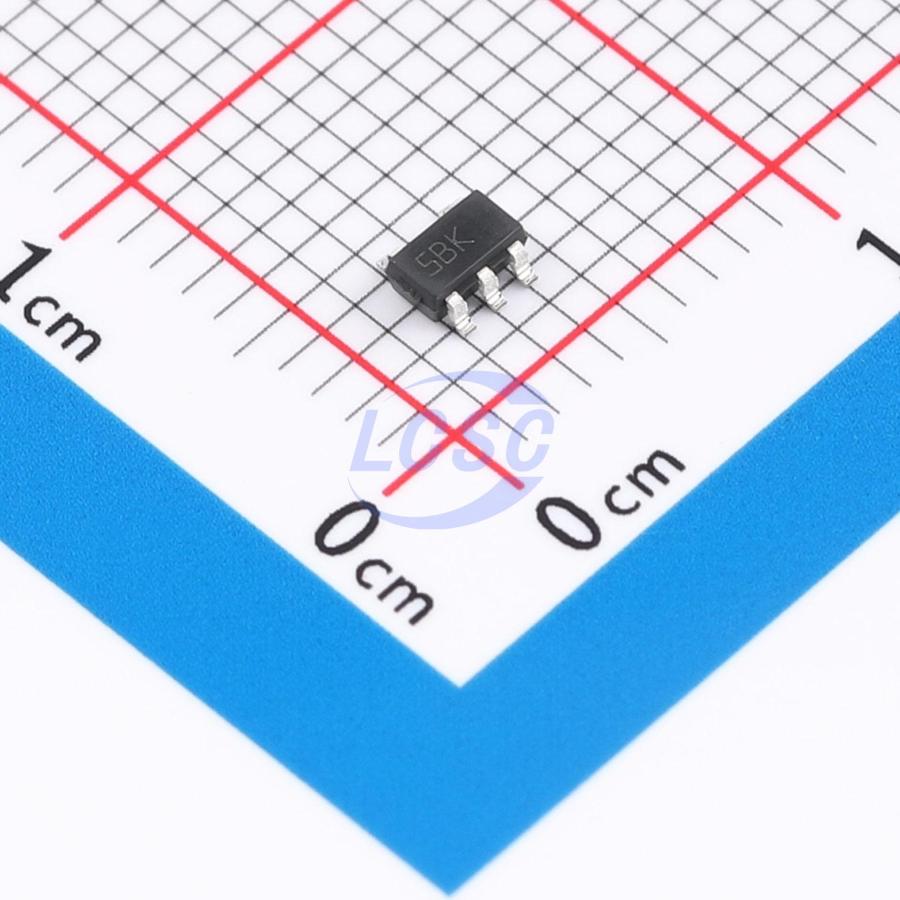

STM6821SWY6F
200ms Manual reset input Active Low 1V~5.5V 1 SOT-23-5 Supervisors RoHS
5-pin supervisor with watchdog timer and push-button reset
- Manufacturer
- ST
- Manufacturer part #
- STM6821SWY6F
- Store part #
- C222203
- Package / case
- SOT-23-5
- Category
- Supervisors
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,390 in stock
#C222203
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.24 | ₹43.24 |
| 10+ | ₹38.19 | ₹381.90 |
| 30+ | ₹35.86 | ₹1,075.80 |
| 100+ | ₹33.15 | ₹3,315.00 |
| 500+ | ₹31.89 | ₹15,945.00 |
| 1,000+ | ₹31.17 | ₹31,170.00 |
1 × ₹43.24
₹43.24
excl. GST
₹51.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STM6821SWY6F
₹43.24 for 1 + GST
Specifications
- Reset Timeout
- 200ms
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Manual reset input
- Reset Active Level
- Active Low
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
The STM6xxx supervisors are self-contained devices which provide microprocessor supervisory functions. A precision voltage reference and comparator monitors the VCC input for an out-of-tolerance condition. When an invalid VCC condition occurs, the reset output (RST) is forced low (or high in the case of RST). These devices also offer a watchdog timer (except for STM6322/6825) and/or a push-button (MR) reset input. These devices are available in a standard 5-pin SOT23 package.
Key features
- Precision VCC monitoring of 5, 3.3, 3, or 2.5 V power supplies
- RST outputs (active low, push-pull or open drain)
- RST outputs (active high, push-pull)
- Reset pulse width of 1.4 ms, 200 ms and 240 ms (typ.)
- Watchdog timeout period of 1.6 s (typ.)
- Manual reset input (MR)
- Low supply current - 3 μA (typ.)
- Guaranteed RST (RST) assertion down to VCC = 1.0 V
- Operating temperature: -40 to +85 °C (industrial grade)
- RoHS compliance
- Lead-free components are compliant with the RoHS directive
