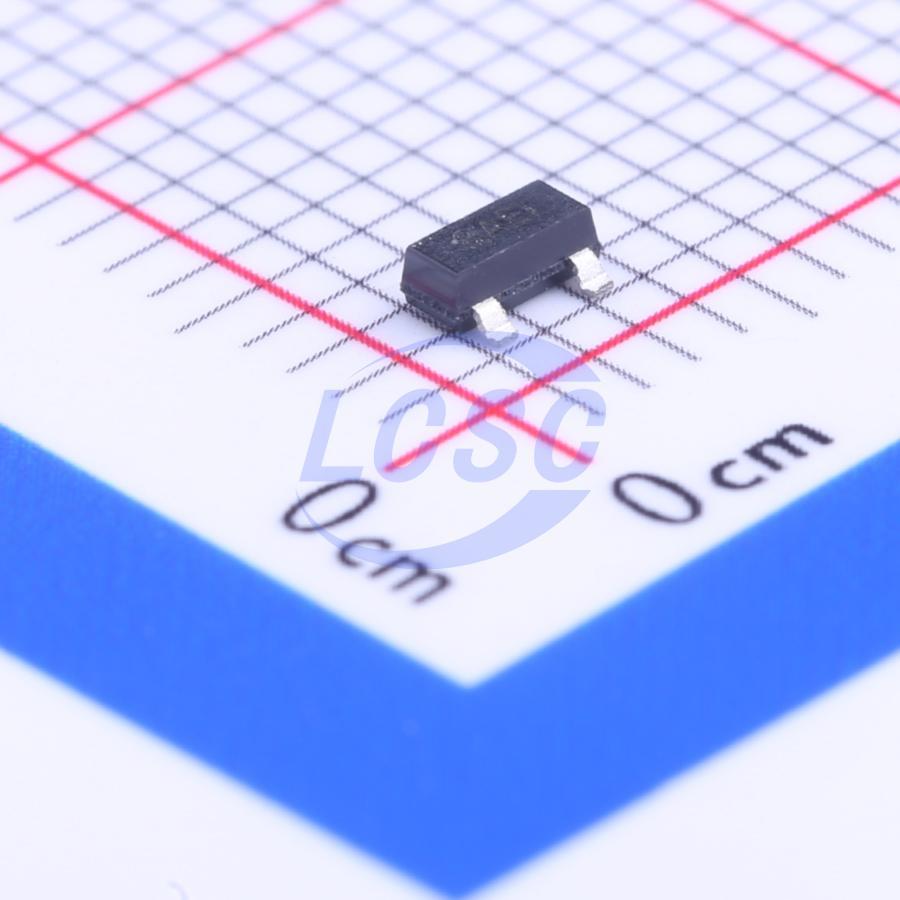

STM809RWX6F
210ms Active Low 1V~5.5V 1 SOT-23 Supervisors RoHS
Reset circuits for precise monitoring of 3V, 3.3V and 5V supply voltages
- Manufacturer
- ST
- Manufacturer part #
- STM809RWX6F
- Store part #
- C79693
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,350 in stock
#C79693
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.83 | ₹214.15 |
| 50+ | ₹33.31 | ₹1,665.50 |
| 150+ | ₹29.23 | ₹4,384.50 |
| 500+ | ₹24.13 | ₹12,065.00 |
| 3,000+ | ₹21.87 | ₹65,610.00 |
| 6,000+ | ₹20.51 | ₹1,23,060.00 |
5 × ₹42.83
₹214.15
excl. GST
₹252.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STM809RWX6F
₹214.15 for 5 + GST
Specifications
- Reset Timeout
- 210ms
- Operating Temperature
- -40℃~+85℃@(TA)
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 5.5uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.38V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
The STM809/810/811/812 microprocessor reset circuits are low-power supervisory devices used to monitor power supplies. They perform a single function: asserting a reset signal whenever the VCC supply voltage drops below a preset value and keeping it asserted until VCC has risen above the preset threshold for a minimum period of time (trec). The STM811/812 also provide a push-button reset input (MR).
Key features
- Precision monitoring of 3 V, 3.3 V, and 5 V supply voltages
- Two output configurations
- Push-pull RST output (STM809/811)
- Push-pull RST output (STM810/812)
- 140 ms reset pulse width (min)
- Low supply current - 6 μA (typ)
- Guaranteed RST/RST assertion down to VCC = 1.0 V
- Operating temperature: -40 °C to 85 °C (industrial grade)
- Lead-free, small SOT23 and SOT143 package
