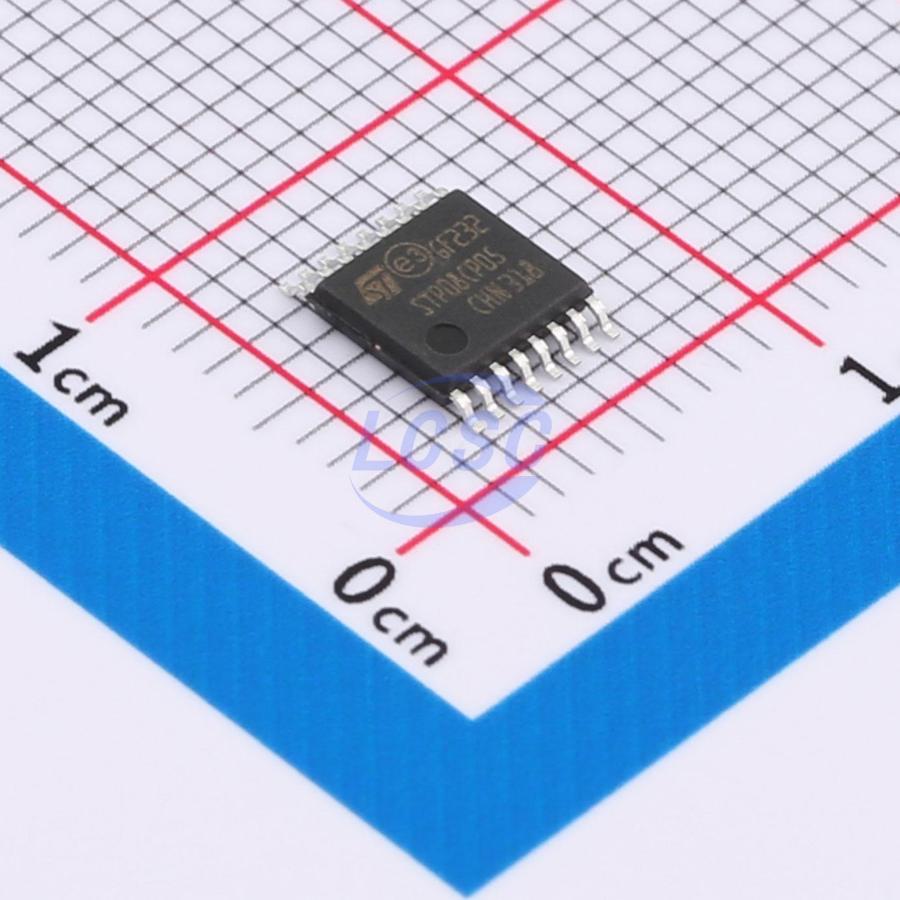

STP08CP05TTR

100mA 30MHz PWM 8 20V 3V~5.5V TSSOP-16 LED Drivers RoHS

TSSOP-16ROHS3 CompliantActive

Low voltage, low current power 8-bit shift register

Manufacturer: ST
Manufacturer part #: STP08CP05TTR
Store part #: C2678539
Package / case: TSSOP-16
Category: LED Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,585 in stock

#C2678539

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
1+	₹109.74	₹109.74
10+	₹84.69	₹846.90
30+	₹72.16	₹2,164.80
100+	₹59.84	₹5,984.00
500+	₹52.28	₹26,140.00
1,000+	₹48.40	₹48,400.00

Quantity (min 1)

1 × ₹109.74

₹109.74

excl. GST

₹129.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

STP08CP05TTR

₹109.74 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Output Current: 100mA
Frequency - Switching: 30MHz
Dimming: PWM
Number of Channels: 8
Switch tube (built-in/external): Built-in
Features: Over-Temperature Protection (OTP)
Output Voltage: 20V
Constant Current Accuracy: 3%
Voltage - Input(DC): 3V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.263 g

Overview

The STP08CP05 is a monolithic, low-voltage, low-current 8-bit shift register designed for LED panel displays. It contains an 8-bit serial-input, parallel-output shift register capable of storing 8 bits of D-type data. In the output stage, eight regulated current sources are designed to provide constant currents of 5-100 mA for driving LEDs. The output current settling time of 5 μs (typical) enhances system performance. The STP08CP05 is backward compatible with the STP8C/L596 in both function and package. Via an external resistor, users can adjust the output current of the STP08CP05 to control LED brightness intensity from 0% to 100%. The STP08CP05 guarantees an output drive capability of 20 V, allowing users to connect multiple LEDs in series. The high clock frequency of 30 MHz also meets system demands for high-volume data transmission. The 3.3 V operating voltage is well-suited for applications interfacing with any 3.3 V microcontroller.
