MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
HXY MOSFETDatasheet (PDF)

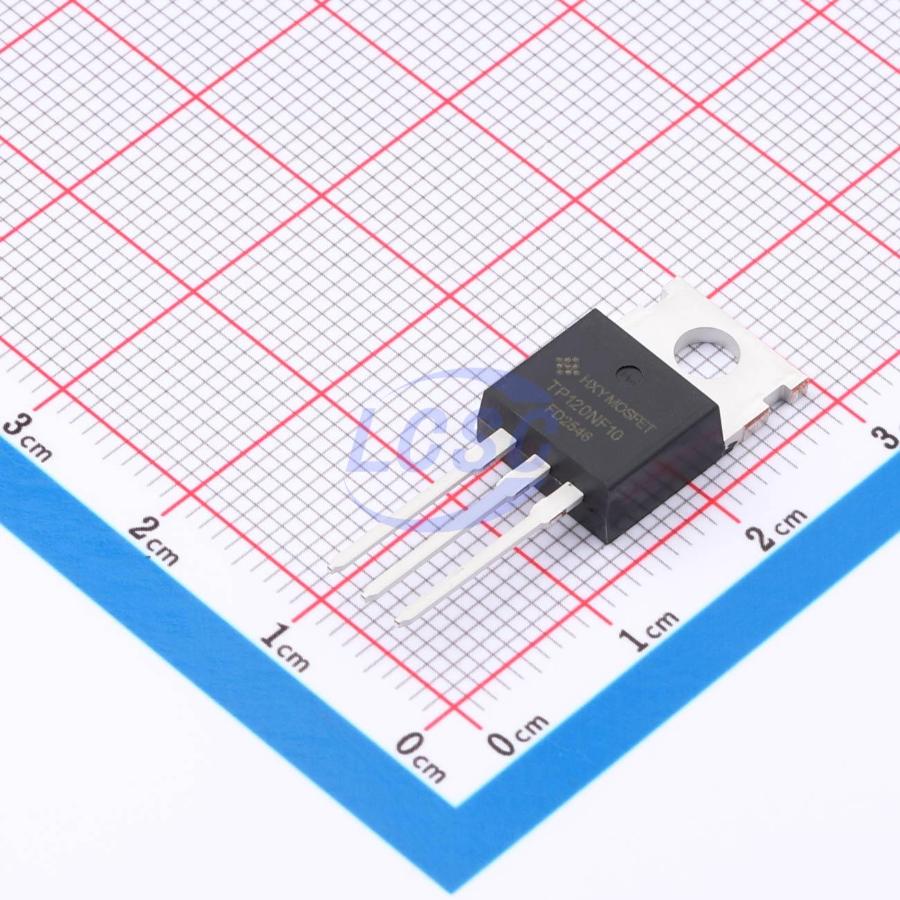

STP120NF10-HXY
100W 100V 70A 8.5mΩ@10V 1 N-channel N-Channel TO-220C Single FETs, MOSFETs
TO-220CRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- STP120NF10-HXY
- Store part #
- C53262905
- Package / case
- TO-220C
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C53262905
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.45 | ₹97.45 |
| 10+ | ₹79.51 | ₹795.10 |
| 50+ | ₹70.66 | ₹3,533.00 |
| 100+ | ₹61.80 | ₹6,180.00 |
| 500+ | ₹56.40 | ₹28,200.00 |
| 1,000+ | ₹53.81 | ₹53,810.00 |
1 × ₹97.45
₹97.45
excl. GST
₹114.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP120NF10-HXY
₹97.45 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 451pF
- Ciss-Input Capacitance
- 1.368nF
- Pd - Power Dissipation
- 100W
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 70A
- Reverse Transfer Capacitance (Crss)
- 12.9pF
- RDS(on)
- 8.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.3nC@50V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.998 g
