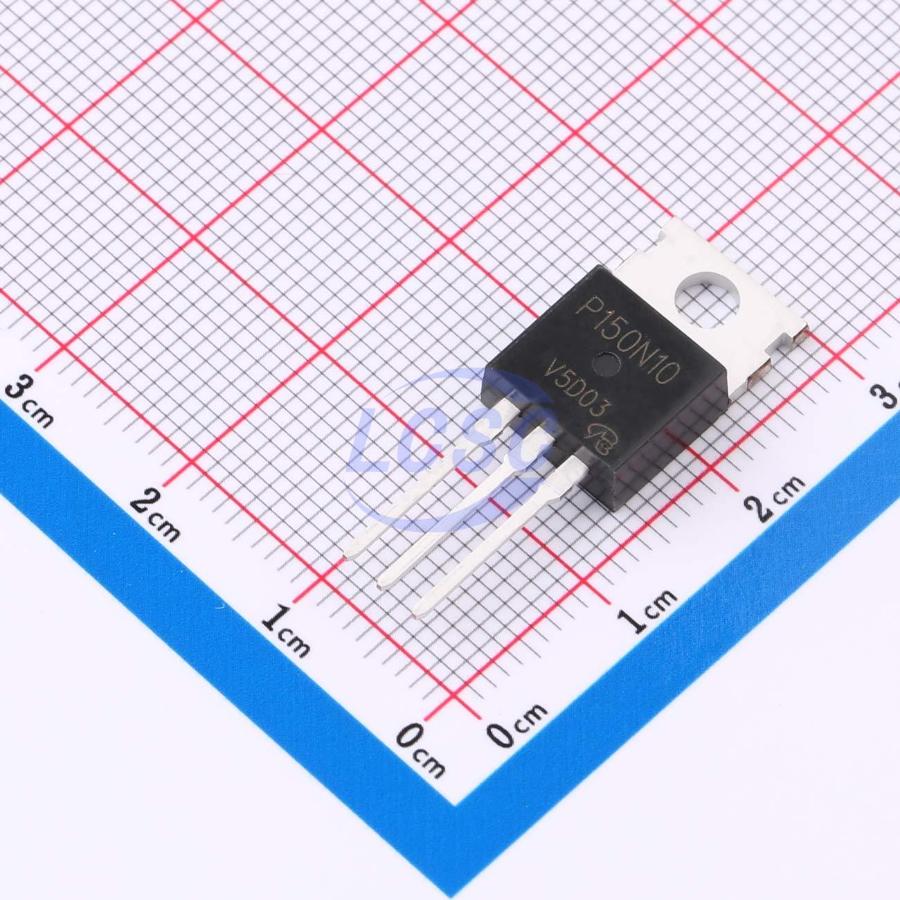

STP150N10F7AG-VB
100V 120A 370W 5mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs
TO-220ABRoHSActive
MOSFET N-CH 100V 120A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP150N10F7AG-VB
- Store part #
- C47993726
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C47993726
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹219.26 | ₹219.26 |
| 10+ | ₹185.58 | ₹1,855.80 |
| 50+ | ₹164.50 | ₹8,225.00 |
| 100+ | ₹142.76 | ₹14,276.00 |
| 500+ | ₹132.99 | ₹66,495.00 |
| 1,000+ | ₹128.86 | ₹1,28,860.00 |
1 × ₹219.26
₹219.26
excl. GST
₹258.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP150N10F7AG-VB
₹219.26 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 120A
- Output Capacitance(Coss)
- 2.025nF
- Ciss-Input Capacitance
- 10nF
- Pd - Power Dissipation
- 370W
- Reverse Transfer Capacitance (Crss)
- 165pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 76nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Key features
- Lightning Power MOSFET
- Maximum junction temperature 175°C
- 100% Rg and UIS testing
- Material category: For compliance definitions, refer to RoHS compliance
- N-channel MOSFET
