VBsemi ElecDatasheet (PDF)

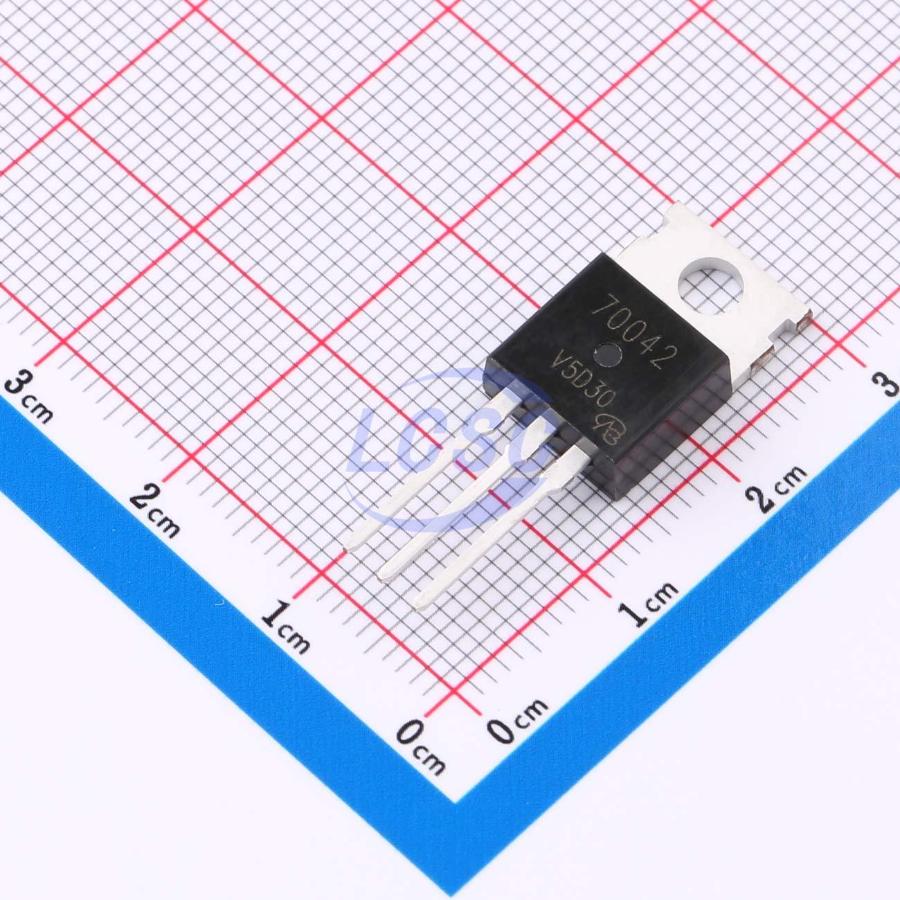

SUP70042E-GE3-VB
100V 120A 370W 5mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs
TO-220ABRoHSActive
MOSFET N-CH 100V 120A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SUP70042E-GE3-VB
- Store part #
- C47993722
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C47993722
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹244.77 | ₹244.77 |
| 10+ | ₹211.40 | ₹2,114.00 |
| 50+ | ₹190.53 | ₹9,526.50 |
| 100+ | ₹169.00 | ₹16,900.00 |
| 500+ | ₹159.32 | ₹79,660.00 |
| 1,000+ | ₹155.21 | ₹1,55,210.00 |
1 × ₹244.77
₹244.77
excl. GST
₹288.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SUP70042E-GE3-VB
₹244.77 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 120A
- Output Capacitance(Coss)
- 2.025nF
- Ciss-Input Capacitance
- 10nF
- Pd - Power Dissipation
- 370W
- Reverse Transfer Capacitance (Crss)
- 165pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 76nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Key features
- Thunder Power MOSFET
- Maximum junction temperature 175°C
- 100% Rg and UIS tested
- N-channel MOSFET
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUP70030E-VB#C18457634VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹224.21 · 10 in stock | View |
 | AP95T10GP-HF-VB#C20755466VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹211.94 · 10 in stock | View |
 | STP110N10F7-VB#C2680810VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹218.45 · 3 in stock | View |
 | SUP70090E-GE3-VB#C47993721VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 6 | ₹244.77 · 6 in stock | View |
 | STP150N10F7AG-VB#C47993726VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹219.26 · 20 in stock | View |
