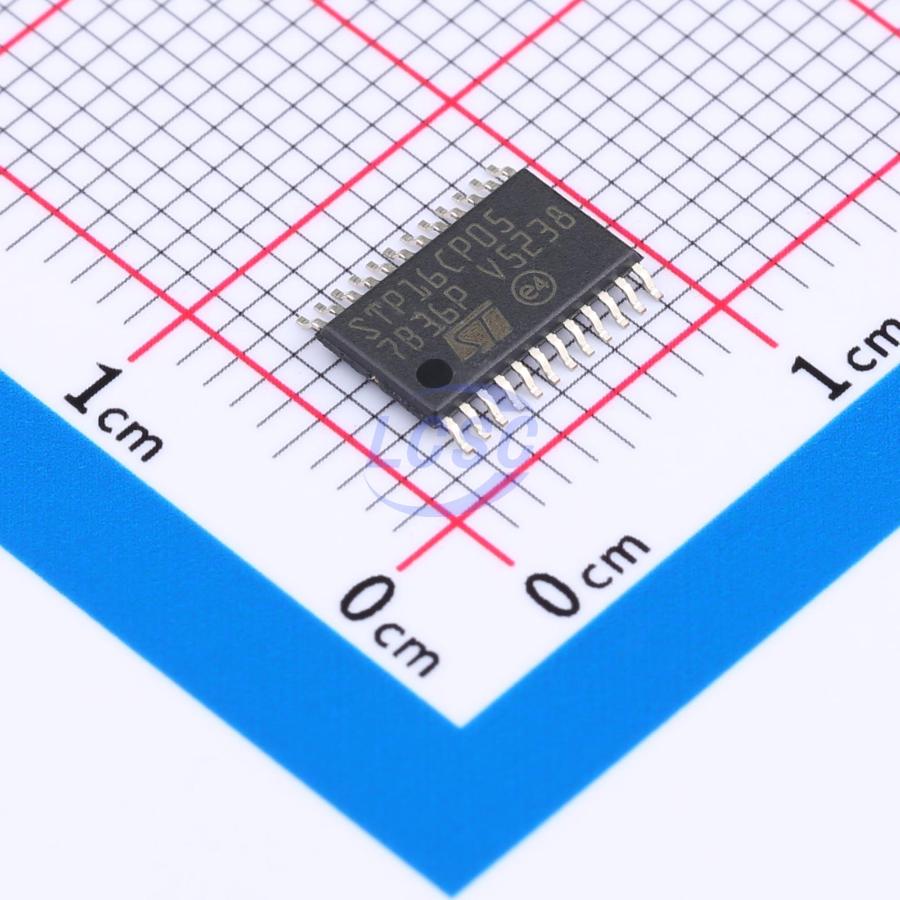

STP16CP05XTTR
100mA 30MHz Analog 16 DC-DC 20V 3V~5.5V TSSOP-24-EP LED Drivers RoHS
16-bit constant current LED sink driver
- Manufacturer
- ST
- Manufacturer part #
- STP16CP05XTTR
- Store part #
- C2969824
- Package / case
- TSSOP-24-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,179 in stock
#C2969824
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹250.71 | ₹250.71 |
| 10+ | ₹215.52 | ₹2,155.20 |
| 30+ | ₹196.19 | ₹5,885.70 |
| 100+ | ₹168.38 | ₹16,838.00 |
| 500+ | ₹158.81 | ₹79,405.00 |
| 1,000+ | ₹154.47 | ₹1,54,470.00 |
1 × ₹250.71
₹250.71
excl. GST
₹295.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STP16CP05XTTR
₹250.71 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Output Current
- 100mA
- Frequency - Switching
- 30MHz
- Dimming
- Analog
- Number of Channels
- 16
- Type
- DC-DC
- Features
- Over-Temperature Protection (OTP)
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 20V
- Topology
- Boost
- Constant Current Accuracy
- 5%
- Voltage - Input(DC)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5 g
Overview
The STP16CP05 is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The STP16CP05 contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bit, D-type storage register. In the output stage, sixteen regulated current sources provide from 5 mA to 100 mA constant current to drive the LEDs. The output current setup time is 40 ns (typ.), thus improving the system performance. The LEDs' brightness can be controlled by using an external resistor to adjust the STP16CP05 output current. The STP16CP05 guarantees a 20V output driving capability, allowing users to connect more LEDs in series. The high clock frequency, 30 MHz, makes the device suitable for high data rate transmission. The 3.3V voltage supply is useful in applications that interface with a 3.3V micro controller.
Key features
- Low voltage power supply down to 3 V
- 16 constant current output channels
- Adjustable output current through external resistor
- Serial data IN/parallel data OUT
- Can be driven by a 3.3 V microcontroller
- Output current: 5 to 100 mA
- Max clock frequency 30 MHz
- ESD protection: 2 kV HBM, 200 V MM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLC5926QPWPRQ1#C2864236TI · HTSSOP-24-EP | TI | HTSSOP-24-EP | 20 | ₹821.07 · 20 in stock | View |
 | TLC5927QPWPRQ1#C702073TI · HTSSOP-24-EP | TI | HTSSOP-24-EP | 10 | ₹363.02 · 10 in stock | View |
 | STP16CPC05XTTR#C443980ST · TSSOP-24-EP | ST | TSSOP-24-EP | 20 | ₹240.73 · 20 in stock | View |
| STP16DPS05XTTR#C2679055ST · TSSOP-24-EP | ST | TSSOP-24-EP | On request | Price on request | Quote | |
