STP16CPC26PTR

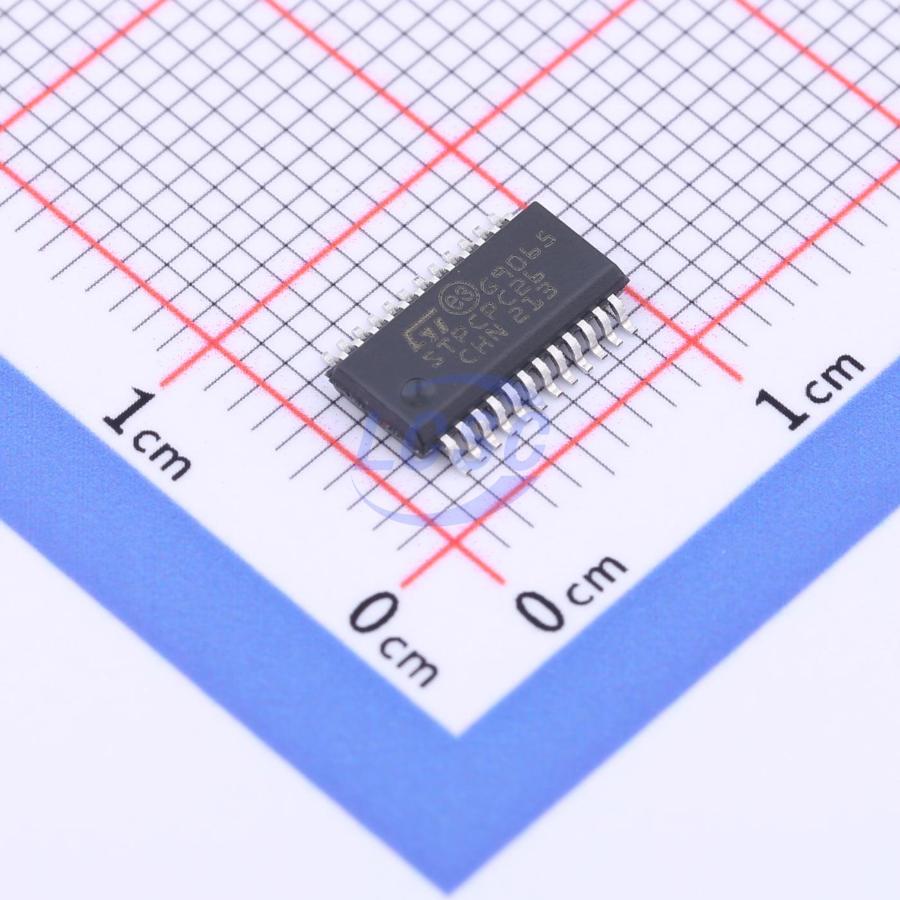

90mA PWM 16 DC-DC 20V 3V~5.5V QSOP-24-150mil LED Drivers RoHS
Low voltage 16-bit constant current LED sink driver
- Manufacturer
- ST
- Manufacturer part #
- STP16CPC26PTR
- Store part #
- C2678802
- Package / case
- QSOP-24-150mil
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,435 in stock
#C2678802
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.50 | ₹164.50 |
| 10+ | ₹135.17 | ₹1,351.70 |
| 30+ | ₹119.08 | ₹3,572.40 |
| 100+ | ₹100.83 | ₹10,083.00 |
| 500+ | ₹92.80 | ₹46,400.00 |
| 1,000+ | ₹89.10 | ₹89,100.00 |
1 × ₹164.50
₹164.50
excl. GST
₹194.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STP16CPC26PTR
₹164.50 for 1 + GST
Specifications
- Output Current
- 90mA
- Operating Temperature
- -40℃~+125℃
- Dimming
- PWM
- Number of Channels
- 16
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Features
- Over-Temperature Protection (OTP)
- Output Voltage
- 20V
- Constant Current Accuracy
- 1%
- Voltage - Input(DC)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
The STP16CPC26 is a monolithic, low voltage, 16-bit constant current LED sink driver. The device contains a 16-bit shift register and data latches, which convert serial input data into parallel output format. In the output stage sixteen regulated current generators provide 5 mA to 90 mA constant current to drive LEDs. The current is externally adjusted through a resistor. LED brightness can be adjusted from 0% to 100% via OE (overline) pin. The STP16CPC26 guarantees a 20 V driving capability, allowing users to connect more LEDs in series to each current source. The high 30 MHz clock frequency makes the device suitable for high data rate transmission. The thermal shutdown (170 ℃ with about 15 ℃ hysteresis) assures protection from overtemperature events. The STP16CPC26 is housed in four different packages: QSOP24, SO-24, TSSOP-24 and HTSSOP-24 (with exposed pad).
Applications
- Video display panel
- LED driver
- Special lighting
Key features
- 16 constant current output channels
- Adjustable output current through external resistor
- Output current: 5 mA to 90 mA
- ±1% typical current accuracy bit to bit
- Max clock frequency: 30 MHz
- 20 V current generators rated voltage
- 3 - 5.5 V power supply
- Thermal shutdown for overtemperature protection
