SilergyDatasheet (PDF)

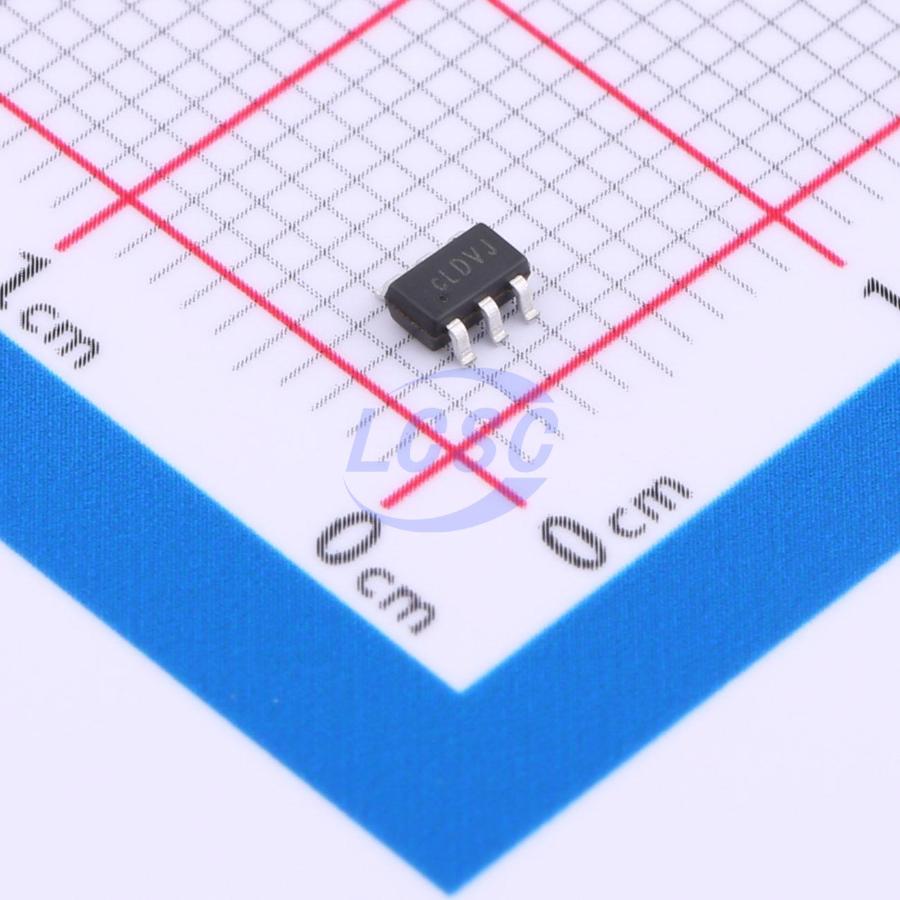

SY6287CABC
1 Active High 2A Load Switch SOT-23-6 Power Distribution Switches, Load Drivers
SOT-23-6RoHSActive
Low Loss Power Distribution Switch with Programmable Current Limit
- Manufacturer
- Silergy
- Manufacturer part #
- SY6287CABC
- Store part #
- C3013652
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,160 in stock
#C3013652
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.46 | ₹72.30 |
| 50+ | ₹14.10 | ₹705.00 |
| 150+ | ₹13.87 | ₹2,080.50 |
| 500+ | ₹13.63 | ₹6,815.00 |
5 × ₹14.46
₹72.30
excl. GST
₹85.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6287CABC
₹72.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Reverse current blocking;Soft-start
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- Operating Voltage
- 2.5V~5.5V
- RDS(on)
- 65mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
SY6287C is an ultra-low RDS(ON) power distribution switch with current limit to protect the power source from over current and short circuit conditions. It incorporates over temperature protection and reverse blocking function.
Applications
- USB 3.1 Application
- USB 3G Data Card
- USB Dongle
- Mini PCI Accessories
- USB Charger
- Public Place Multi-USB Charger
- PC Card Hot Swap Applications
Key features
- Input Voltage: 2.5V to 5.5V
- Extremely Low Power Path Resistance: 65mΩ (Typ.)
- Adjustable Current Limit Up to 2.0A
- Over Temperature Shutdown and Automatic Retry
- Reverse Blocking (No Body Diode)
- Fault Flag (OCB) Output for Over Current and Fault Conditions
- Built-in Soft-start
- Compact Package Minimizes the Board Space: SOT23 - 6/DFN2x2 - 6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SY6288F1ABC#C2875458Silergy · SOT-23-6 | Silergy | SOT-23-6 | 1,620 | ₹23.76 · 1,620 in stock | View |
