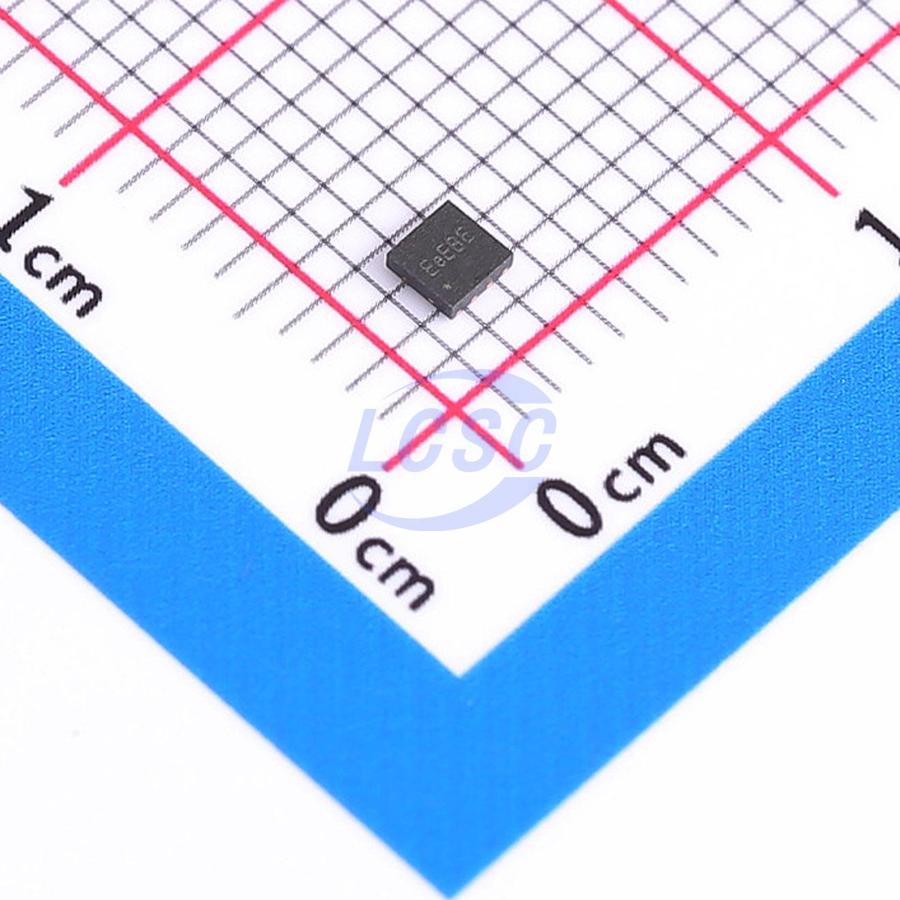

SY6702DFC
WSON-8-EP(2x2) Motor Drivers, Controllers
Low Voltage H-Bridge IC
- Manufacturer
- Silergy
- Manufacturer part #
- SY6702DFC
- Store part #
- C2934680
- Package / case
- WSON-8-EP(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,910 in stock
#C2934680
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.53 | ₹122.65 |
| 50+ | ₹19.17 | ₹958.50 |
| 150+ | ₹16.88 | ₹2,532.00 |
| 500+ | ₹14.01 | ₹7,005.00 |
| 3,000+ | ₹12.73 | ₹38,190.00 |
| 6,000+ | ₹11.97 | ₹71,820.00 |
5 × ₹24.53
₹122.65
excl. GST
₹144.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6702DFC
₹122.65 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 1
- Features
- Overcurrent Protection;Short-Circuit Protection;Under-voltage lockout;Over temperature protection;Built-in charge pump
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Output Current
- 1.8A
- Control Voltage
- 2.5V~16V
- RDS(on)
- 380mΩ
- Motor Drive Voltage(Vm)
- 2.5V~16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
The SY6702 is an H-bridge motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion-control applications. The device can drive one winding of a stepper motor or one brush DC motor. The highly integrated H-bridge driver block consists of two half-bridges with internal logic control, gate drive, over current protection and charge pump circuit. The SY6702 operates with a power-supply voltage range from 2.5V to 16V, and 1.8A maximum output current. To be compatible with industry-standard devices, the SY6702 use the PWM (IN/IN) input interface. The SY6702 provides over current protection, short circuit protection, under voltage lockout and thermal shutdown.
Applications
- Cameras
- DSLR Lenses
- Consumer Products
- Toys
- Robotics
- Medical Devices
Key features
- H-bridge motor driver
- Drives a brush DC motor or one winding of a stepper motor or other loads
- Low MOSFET on-resistance: HS + LS < 380mΩ
- 1.8A maximum drive current
- Power supply voltage range from 2.5V to 16V
- PWM (IN/IN) interface
- Low power sleep mode with 120nA maximum combined supply current
- Low power with less than 120μA supply current
- Internal over current protection, short circuit protection, under voltage lockout and thermal shutdown
- Compact package: DFN2x2-8
