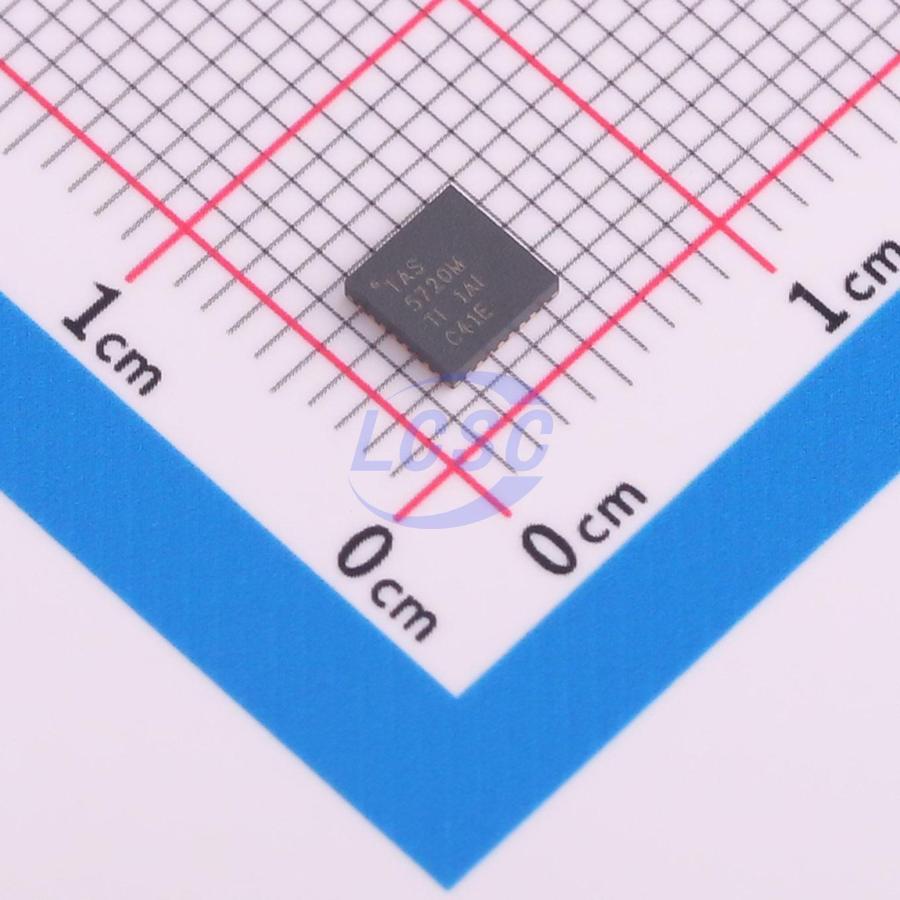

TAS5720MRSMR

4.5V~26.4V 1-Channel 20Wx1@4Ω Class D VQFN-32(4x4) Audio Amplifiers RoHS

VQFN-32(4x4)ROHS3 CompliantActive

Digital input mono Class-D audio amplifier with a TDM interface supporting up to 8 channels

Manufacturer: TI
Manufacturer part #: TAS5720MRSMR
Store part #: C5214961
Package / case: VQFN-32(4x4)
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,850 in stock

#C5214961

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
1+	₹217.90	₹217.90
10+	₹184.65	₹1,846.50
30+	₹163.92	₹4,917.60
100+	₹142.75	₹14,275.00
500+	₹133.03	₹66,515.00
1,000+	₹128.93	₹1,28,930.00

Quantity (min 1)

1 × ₹217.90

₹217.90

excl. GST

₹257.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TAS5720MRSMR

₹217.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 4.5V~26.4V
Features: Digitally programmable gain;Enable/shutdown function;Automatic mute/no-noise switch
Total Harmonic Distortion + Noise (THD+N): 0.15%
Operating Temperature: -25℃~+85℃
Speaker Channels: 1-Channel
Efficiency: 91%;90%
Output Power: 20Wx1@4Ω
Class: Class D
Power Supply Rejection Ratio (PSRR): 87dB

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.13 g

Overview

The TAS5720x device is a high-efficiency mono Class-D audio power amplifier optimized for high transient power capability, enabling it to utilize the dynamic power margin of small speakers. The device can continuously deliver over 15W of power to a 4Ω speaker. The digital time-division multiplexing (TDM) interface supports up to 8 devices sharing the same bus. The TAS5720x device comes in a 32-pin, 4mm × 4mm, VQFN package, making the PCB form factor more compact.

Applications

Subwoofer
Speaker
Soundbar
Surround Sound System

Key features

Mono Class-D amplifier
20W continuous output power at 0.15% THD (19V/4Ω)
TDM audio input – up to 8 channels (32-bit, 48kHz)
I²C control with 8 selectable I²C addresses
Power amplifier: 4.5V to 16.5V, TAS5720L power amplifier: 4.5V to 26.4V, TAS5720M digital I/O voltage: 3.3V
Protection: thermal protection and short-circuit protection
Package: 4mm×4mm, 32-pin VQFN
