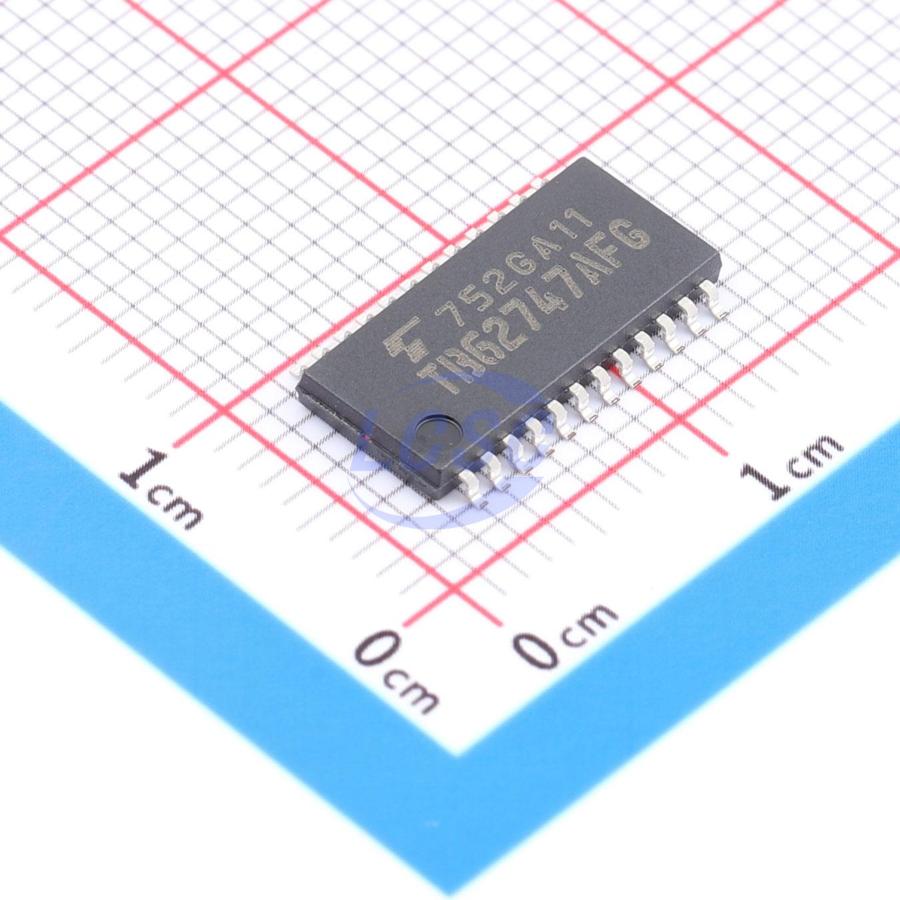

TB62747AFG,C8,EL

The TB62747 series is comprised of constant-current drivers designed for LEDs and LED panel displays. The regulated current sources are designed to provide a constant current, which is adjustable through one external resistor. The TB62747 series incorporates 16 channels of shift registers, latches, AND gates and constant-current outputs. Fabricated using the Bi-CMOS process, the TB62747 series satisfies the system requirement of high-speed data transmission. It operates with a 3.3 or 5.0 V power supply.

Key features

• 16-output built-in
• Output current setting range: 1.5 to 35 mA @ VDD = 3.3 V, VO = 0.4 to 1.0 V; 1.5 to 45 mA @ VDD = 5.0 V, VO = 0.4 to 1.2 V
• Current accuracy (@ REXT = 1.2 kΩ, VO = 0.4 V, VDD = 3.3 V, 5.0 V): Between outputs: ± 1.5 % (max); Between devices: ± 1.5 % (max)
• high-speed output switching: twOE(L) = 100 ns (min)
• Control data format: serial-in, parallel-out
• Input signal voltage level: 3.3 V and 5.0 V CMOS interfaces (Schmitt trigger input)
• Serial data transfer rate: fSCK = 25 MHz (max) @ cascade connection
• Power supply voltages: VDD = 3.0 V to 5.5 V
• Operation temperature range: Topr = -40 to 85 °C
• Output voltage: VO = 26 V (max)
• Power on reset (POR)
• Package: AFG type: SSOP24-P-300-1.00B; AFNG type: SSOP24-P-300-0.65A
