TOSHIBADatasheet (PDF)

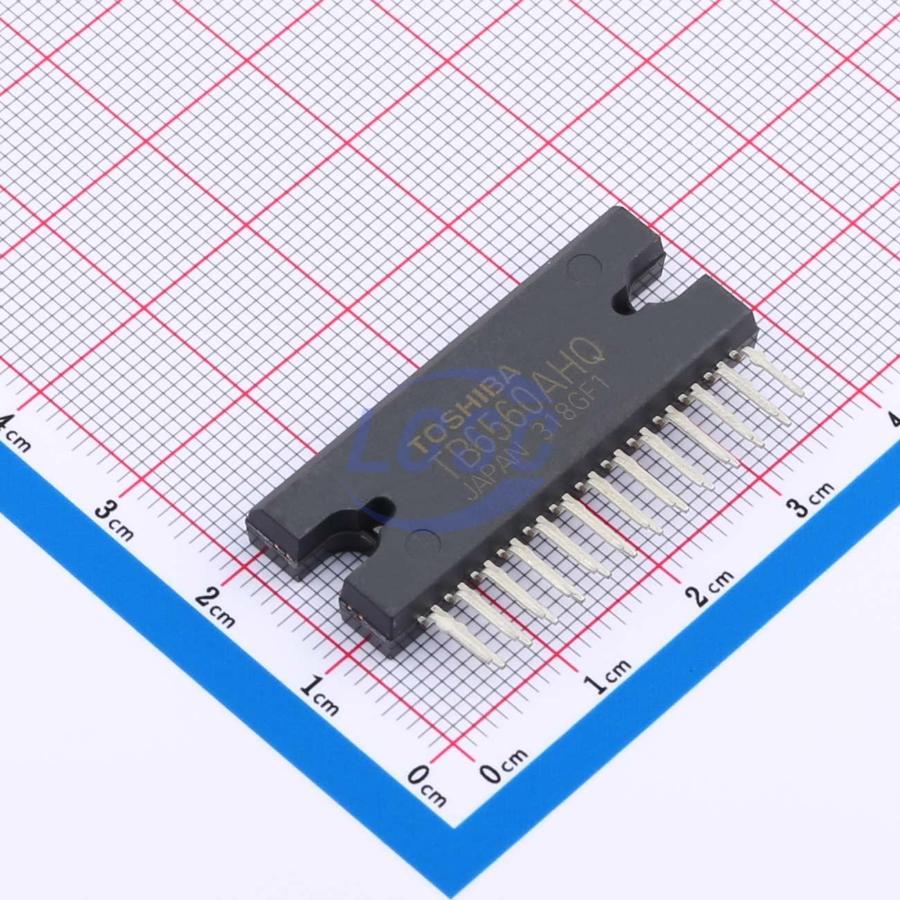

TB6560AHQ(O,8)
HZIP-25-P-1.27mm Motor Drivers, Controllers
HZIP-25-P-1.27mmRoHSActive
PWM Chopper-Type Bipolar Driver IC for Stepping Motor Control
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TB6560AHQ(O,8)
- Store part #
- C19386
- Package / case
- HZIP-25-P-1.27mm
- Category
- Motor Drivers, Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,688 in stock
#C19386
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹541.41 | ₹541.41 |
| 10+ | ₹460.13 | ₹4,601.30 |
| 28+ | ₹412.09 | ₹11,538.52 |
| 98+ | ₹363.19 | ₹35,592.62 |
| 420+ | ₹340.80 | ₹1,43,136.00 |
| 840+ | ₹330.58 | ₹2,77,687.20 |
1 × ₹541.41
₹541.41
excl. GST
₹638.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 14 per tube
TB6560AHQ(O,8)
₹541.41 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Features
- Power-on reset;Over temperature protection;Dead-time / shoot-through protection
- Technology
- Yes
- Operating Temperature
- -30℃~+85℃
- Output Current
- 3A
- Step Resolution
- 16
- Control Voltage
- 4.5V~5.5V
- RDS(on)
- 600mΩ
- Motor Drive Voltage(Vm)
- 4.5V~34V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 14 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 12.542 g
Overview
The TB6560AHQ/AFG is a PWM chopper-type stepping motor driver IC designed for sinusoidal-input microstep control of bipolar stepping motors. The TB6560AHQ/AFG can be used in applications that require 2-phase, 1-2-phase, 2W1-2-phase and 4W1-2-phase excitation modes. The TB6560AHQ/AFG is capable of low-vibration, high-performance forward and reverse driving of a two-phase bipolar stepping motor using only a clock signal.
Key features
- Single-chip motor driver for sinusoidal microstep control of stepping motors
- High output withstand voltage due to the use of BiCD process: Ron (upper and lower sum) = TB6560AHQ: 0.6 Ω (typ.) TB6560AFG: 0.7 Ω (typ.)
- Forward and reverse rotation
- Selectable phase excitation modes (2, 1-2, 2W1-2 and 4W1-2)
- High output withstand voltage: VDSS = 40 V
- High output current: IOUT = TB6560AHQ: 3.5 A (peak) TB6560AFG: 2.5 A (peak)
- Packages: HZIP25-P-1.27 HQFP64-P-1010-0.50
- Internal pull-down resistors on inputs: 100 kΩ (typ.)
- Output monitor pin: MO current (IMO (max)=1 mA)
- Reset and enable pins
- Thermal shutdown (TSD)
