TOSHIBADatasheet (PDF)

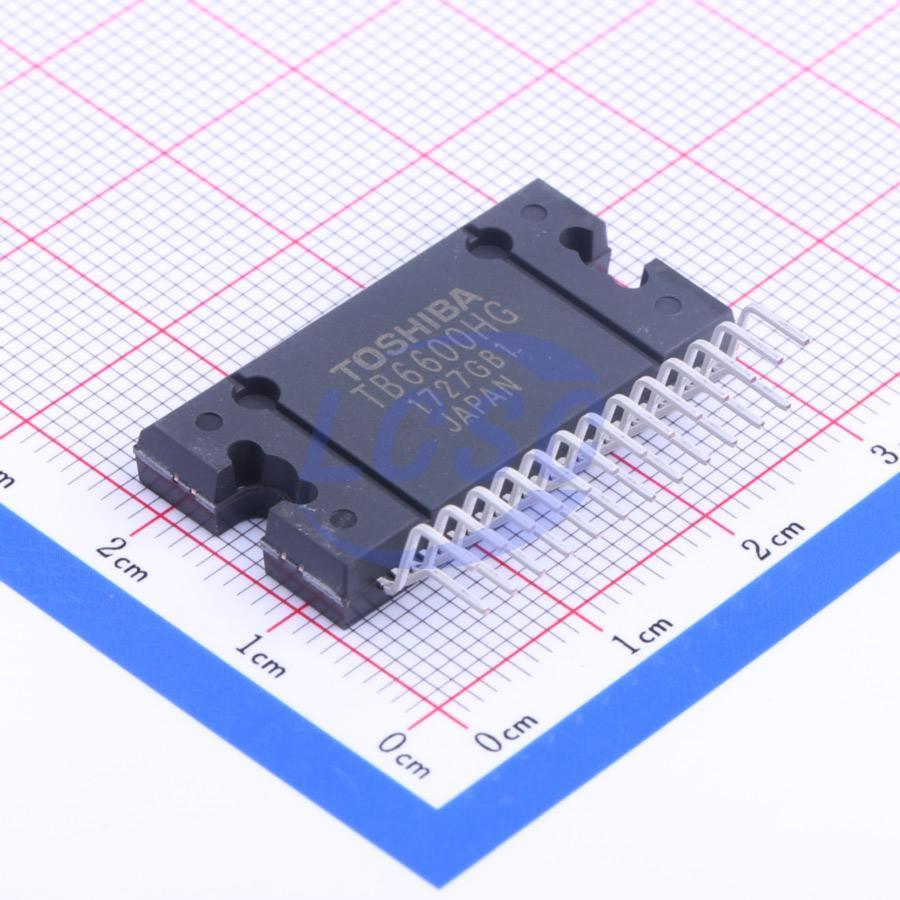

TB6600HG
HZIP-25-P-1mm Motor Drivers, Controllers RoHS
HZIP-25-P-1mmROHS3 CompliantActive
PWM Chopper-Type bipolar Stepping Motor Driver IC
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TB6600HG
- Store part #
- C66042
- Package / case
- HZIP-25-P-1mm
- Category
- Motor Drivers, Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,273 in stock
#C66042
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹551.62 | ₹551.62 |
| 10+ | ₹469.12 | ₹4,691.20 |
| 34+ | ₹420.15 | ₹14,285.10 |
| 102+ | ₹370.73 | ₹37,814.46 |
| 493+ | ₹347.87 | ₹1,71,499.91 |
| 1,020+ | ₹337.42 | ₹3,44,168.40 |
1 × ₹551.62
₹551.62
excl. GST
₹650.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 17 per tube
TB6600HG
₹551.62 for 1 + GST
Specifications
- Number of H-bridges
- 2
- Drive Type
- Bipolar Driver
- Features
- Over temperature protection;Under-voltage lockout;Overcurrent Protection;Dead-time / shoot-through protection
- Technology
- Yes
- Operating Temperature
- -30℃~+85℃
- Output Current
- 4.5A
- Step Resolution
- 1;2;4;8;16
- Control Voltage
- 8V~42V
- RDS(on)
- 400mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 17 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 10.5 g
Overview
The TB6600HG is a PWM chopper-type single-chip bipolar sinusoidal micro-step stepping motor driver. Forward and reverse rotation control is available with 2-phase, 1-2-phase, W1-2-phase, 2W1-2-phase, and 4W1-2-phase excitation modes. 2-phase bipolar-type stepping motor can be driven by only clock signal with low vibration and high efficiency.
Key features
- Single-chip bipolar sinusoidal micro-step stepping motor driver
- Ron (upper + lower)=0.4 Ω (typ.)
- Forward and reverse rotation control available
- Selectable phase drive (1/1, 1/2, 1/4, 1/8, and 1/16 step)
- Output withstand voltage: Vcc = 50 V
- Output current: IoUT = 5.0 A (absolute maximum ratings, peak), IoUT = 4.5 A (operating range, maximal value)
- Packages: HZIP25 - P - 1.00F
- Built-in input pull-down resistance: 100 kΩ (typ.), (only TQ terminal: 70ｋΩ(typ.))
- Output monitor pins (ALERT): Maximum of IALERT = 1 mA
- Output monitor pins (MO): Maximum of IMO = 1 mA
- Equipped with reset and enable pins
- Stand by function
- Single power supply
- Built-in thermal shutdown (TSD) circuit
- Built-in under voltage lock out (UVLO) circuit
- Built-in over-current detection (ISD) circuit
- 7.7 g (typ.)
