TOSHIBADatasheet (PDF)

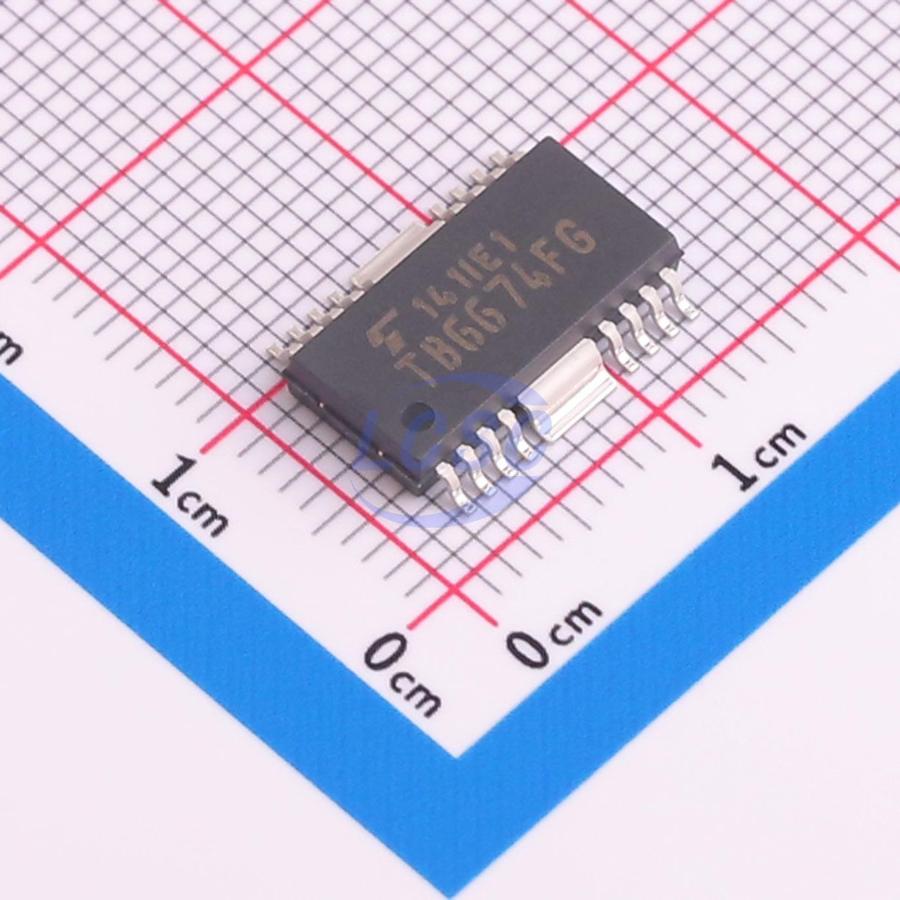

TB6674FG(Z,8,EL)
SOP-16 Motor Drivers, Controllers
SOP-16RoHSActive
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TB6674FG(Z,8,EL)
- Store part #
- C4153826
- Package / case
- SOP-16
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,952 in stock
#C4153826
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.56 | ₹152.56 |
| 10+ | ₹126.69 | ₹1,266.90 |
| 30+ | ₹112.56 | ₹3,376.80 |
| 100+ | ₹96.49 | ₹9,649.00 |
| 500+ | ₹89.32 | ₹44,660.00 |
| 1,500+ | ₹86.27 | ₹1,29,405.00 |
1 × ₹152.56
₹152.56
excl. GST
₹180.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
TB6674FG(Z,8,EL)
₹152.56 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Operating Temperature
- -30℃~+75℃
- Output Current
- 350mA
- Control Voltage
- 4.5V~5.5V
- RDS(on)
- 2.9Ω
- Motor Drive Voltage(Vm)
- 8V~22V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.52 g
Overview
TB6674FG is a stepper motor driver IC featuring MOS output transistors. The IC controls forward and reverse rotation of a two-phase stepper motor via bipolar drive, and also incorporates an energy-saving circuit and a standby circuit.
Key features
- Single-chip two-phase bipolar stepper motor driver (includes two bridge drivers)
- Energy-saving operation
- Standby operation with current consumption ≤20μA (typical)
- Built-in shoot-through current limiting circuit for improved system reliability and noise suppression
- TTL-compatible inputs: IN A, IN B, PS, and VS2B terminals
- On-resistance: 2.9Ω (typical) at PS = L; 7.9Ω (typical) at PS = H
- High drive capability: IO(START) = 350mA (max); IO(HOLD) = 100mA (max) with VS1 enabled; VS2 enabled
- Typical package: HSOP16-pin
- GND terminal = heat slug
- Overcurrent shutdown circuit (ISD)
- Thermal shutdown circuit (TSD)
- Undervoltage lockout circuit (UVLO)
- Input terminal pull-down resistance: 250kΩ
