TOSHIBADatasheet (PDF)

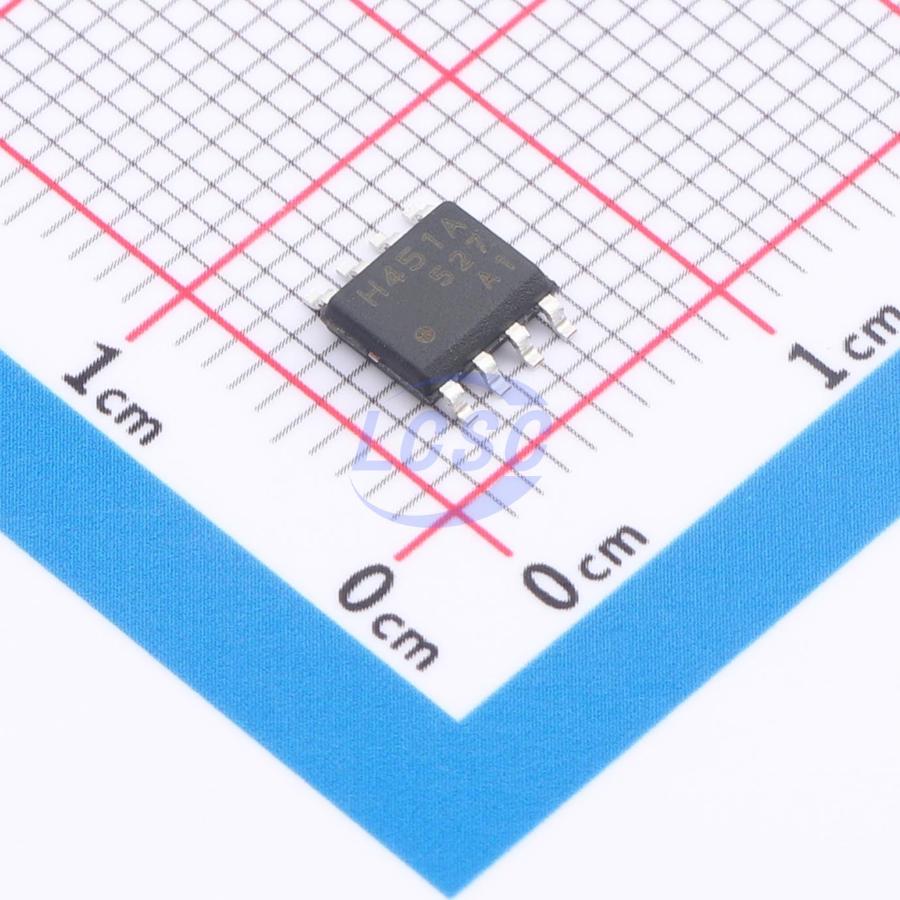

TB67H451AFNG,EL
4.5V~44V HSOP-8_EP Motor Drivers, Controllers RoHS
HSOP-8_EPROHS3 CompliantActive
PWM Chopper Type DC Brushed Motor Driver
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TB67H451AFNG,EL
- Store part #
- C5349076
- Package / case
- HSOP-8_EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,483 in stock
#C5349076
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.48 | ₹70.48 |
| 10+ | ₹56.37 | ₹563.70 |
| 30+ | ₹49.23 | ₹1,476.90 |
| 100+ | ₹42.28 | ₹4,228.00 |
| 500+ | ₹38.17 | ₹19,085.00 |
| 1,000+ | ₹36.00 | ₹36,000.00 |
1 × ₹70.48
₹70.48
excl. GST
₹83.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
TB67H451AFNG,EL
₹70.48 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Voltage - Supply
- 4.5V~44V
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1uA
- Output Current
- 3A
- RDS(on)
- 600mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.165 g
Overview
The TB67H451AFNG is a PWM chopper type DC brushed motor driver. One channel of motor output block is embedded. Fabricated with the BiCD process, the TB67H451AFNG is rated at output voltage 50 V, maximum current 3.5 A.
Key features
- Monolithic IC using BiCD process
- Capable of PWM constant current drive and direct PWM drive
- Supporting 4 operation modes, Forward / Reverse / Brake / STOP (OFF)
- Built-in output MOSFET with Low on-resistance (High side + low side = 0.6 Ω(typ.))
- Realization of high voltage and large current drive (Refer to “Absolute maximum ratings” and “Operating range”.)
- Built-in various error detection functions (Thermal shutdown (TSD), over current detection (ISD), and Under voltage lockout(UVLO))
- Built-in VCC regulator for the internal circuit operation.
