TOSHIBADatasheet (PDF)

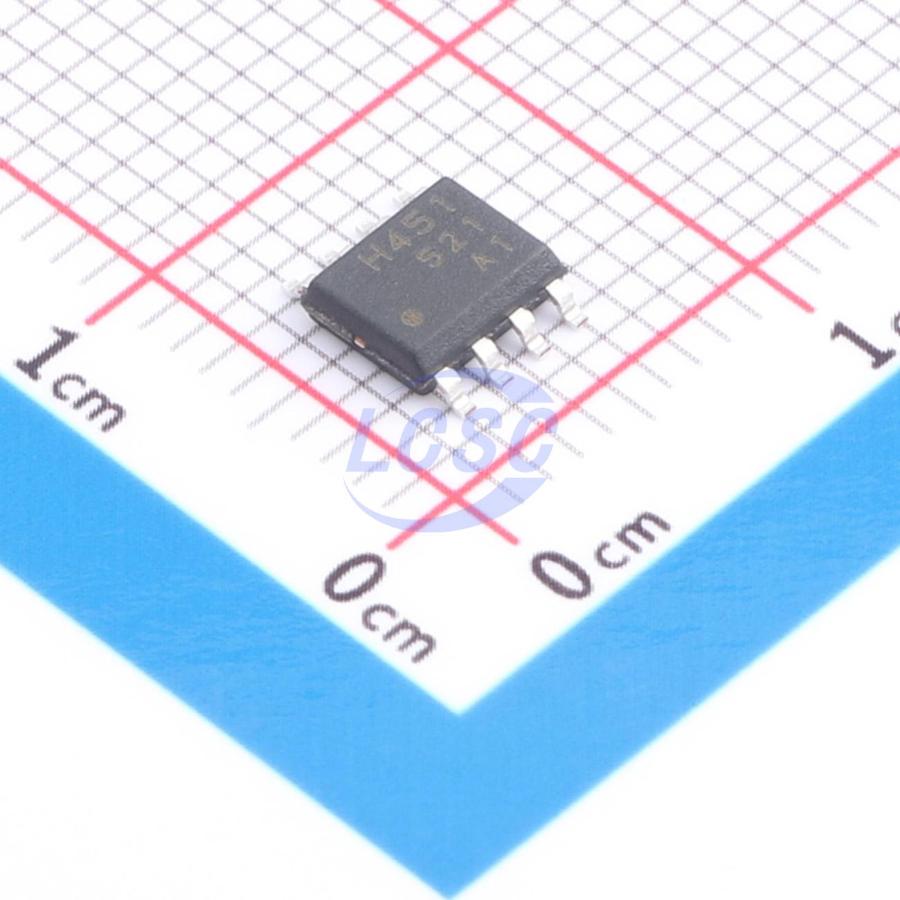

TB67H451FNG(O,EL)
4.5V~44V SOIC-8 Motor Drivers, Controllers
SOIC-8Active
PWM Chopper Type DC Brushed Motor Driver
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TB67H451FNG(O,EL)
- Store part #
- C1858375
- Package / case
- SOIC-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,651 in stock
#C1858375
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.58 | ₹87.58 |
| 10+ | ₹69.76 | ₹697.60 |
| 30+ | ₹60.63 | ₹1,818.90 |
| 100+ | ₹51.94 | ₹5,194.00 |
| 500+ | ₹46.50 | ₹23,250.00 |
| 1,000+ | ₹43.90 | ₹43,900.00 |
1 × ₹87.58
₹87.58
excl. GST
₹103.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
TB67H451FNG(O,EL)
₹87.58 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Voltage - Supply
- 4.5V~44V
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1uA
- Output Current
- 3A
- RDS(on)
- 600mΩ
Packaging & compliance
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.483 g
Overview
The TB67H451FNG is a PWM chopper type DC brushed motor driver. One channel of motor output block is embedded. Fabricated with the BiCD process, the TB67H451FNG is rated at output voltage 50 V, maximum current 3.5A.
Key features
- Monolithic IC using BiCD process
- Capable of PWM constant current drive and direct PWM drive
- Supporting 4 operation modes, Forward / Reverse / Brake / STOP (OFF)
- Built-in output MOSFET with Low on-resistance (High side + low side = 0.6Ω (typ.))
- Realization of high voltage and large current drive (Refer to “Absolute maximum ratings” and “Operating range”.)
- Built-in various error detection functions (Thermal shutdown (TSD), over current detection (ISD), and Under voltage lockout(UVLO))
- Built-in VCC regulator for the internal circuit operation.
