TOSHIBADatasheet (PDF)

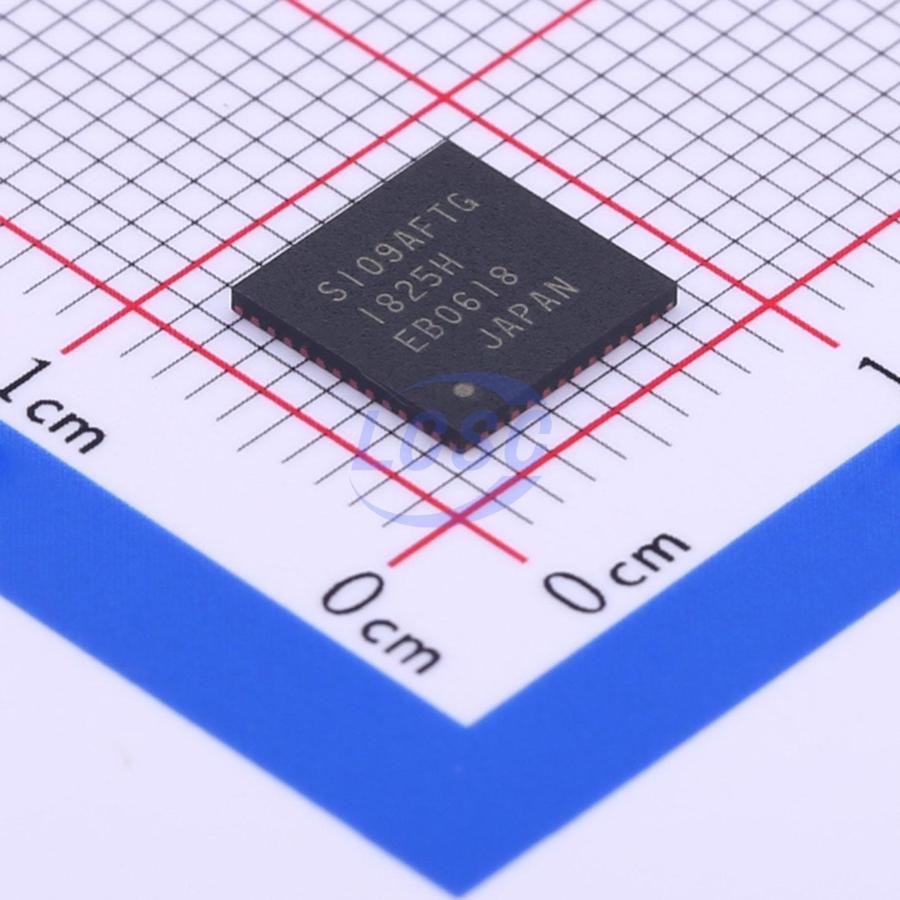

TB67S109AFTG
VQFN-48-EP(7x7) Motor Drivers, Controllers
VQFN-48-EP(7x7)RoHSActive
CLOCK-in controlled Bipolar Stepping Motor Driver
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TB67S109AFTG
- Store part #
- C92125
- Package / case
- VQFN-48-EP(7x7)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,937 in stock
#C92125
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹179.91 | ₹179.91 |
| 10+ | ₹147.98 | ₹1,479.80 |
| 30+ | ₹130.37 | ₹3,911.10 |
| 100+ | ₹110.39 | ₹11,039.00 |
| 500+ | ₹99.74 | ₹49,870.00 |
| 1,000+ | ₹95.61 | ₹95,610.00 |
1 × ₹179.91
₹179.91
excl. GST
₹212.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TB67S109AFTG
₹179.91 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Features
- Power-on reset;Overcurrent Protection;Over temperature protection
- Technology
- Yes
- Operating Temperature
- -20℃~+85℃
- Output Current
- 3A
- Step Resolution
- 1;2;4;8;16;32
- Control Voltage
- 4.75V~5.25V
- RDS(on)
- 490mΩ
- Motor Drive Voltage(Vm)
- 10V~47V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.242 g
Overview
The TB67S109A is a two-phase bipolar stepping motor driver using a PWM chopper. The clock in decoder is built in. Fabricated with the BiCD process, rating is 50 V/4.0 A.
Key features
- BiCD process integrated monolithic IC.
- Capable of controlling 1 bipolar stepping motor.
- PWM controlled constant-current drive.
- Allows full, half, quarter, 1/8, 1/16, 1/32 step operation.
- Low on-resistance (High + Low side = 0.49Ω (typ.)) MOSFET output stage.
- High efficiency motor current control mechanism (Advanced Dynamic Mixed Decay)
- High voltage and current
- Error detection (TSD/ISD) signal output function
- Built-in error detection circuits (Thermal shutdown (TSD)、over-current shutdown (ISD), and power-on reset (POR))
- Built-in VCC regulator for internal circuit use.
- Chopping frequency of a motor can be customized by external resistance and capacitor.
- Multi package lineup
