MICROCHIPDatasheet (PDF)

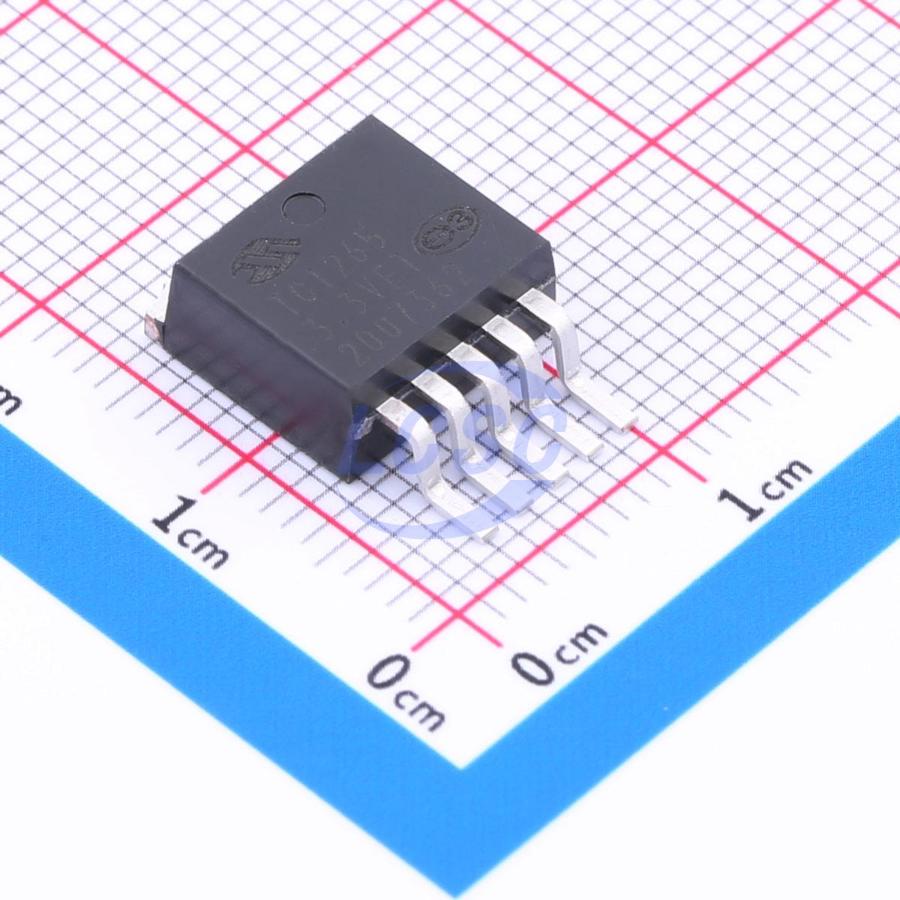

TC1265-3.3VETTR
3.3V Positive Fixed TO-252-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-5ROHS3 CompliantActive
Fixed-Output CMOS Low-Dropout Regulator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TC1265-3.3VETTR
- Store part #
- C632876
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C632876
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹302.41 | ₹302.41 |
| 10+ | ₹287.83 | ₹2,878.30 |
| 30+ | ₹279.40 | ₹8,382.00 |
| 100+ | ₹270.57 | ₹27,057.00 |
| 750+ | ₹266.66 | ₹1,99,995.00 |
| 1,500+ | ₹264.82 | ₹3,97,230.00 |
1 × ₹302.41
₹302.41
excl. GST
₹356.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
TC1265-3.3VETTR
₹302.41 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 130uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 800mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Operating status indication;Noise bypass terminal
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.44 g
Overview
A fixed-output, high-accuracy (typically ±0.5%) CMOS low dropout regulator. Designed specifically for battery-operated systems, the CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80 μA at full load (20 to 60 times lower than in bipolar regulators). Key features include ultra low noise operation, very low dropout voltage (typically 450 mV at full load) and fast response to step changes in load. It incorporates both overtemperature and overcurrent protection. It is stable with an output capacitor of only 1 μF and has a maximum output current of 800 mA. It is available in 8-Pin SOIC, 5-Pin TO-220 and 5-Pin DDPAK packages.
Applications
- Battery-operated Systems
- Portable Computers
- Medical Instruments
- Instrumentation
- Cellular/GSM/PHS Phones
- Linear Post-Regulators for SMPS
- Pagers
Key features
- Very Low Dropout Voltage
- 800 mA Output Current
- High Output Voltage Accuracy
- Standard or Custom Output Voltages
- Overcurrent and Overtemperature Protection
- SHDN Input for Active Power Management
- ERROR Output Can Be Used as a Low Battery Detector (SOIC only)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV5661DT33RKG#C904649onsemi · DPAK-5 | onsemi | DPAK-5 | 71 | ₹224.91 · 71 in stock | View |
 | BA033CC0WFP-E2#C84986ROHM · TO-252-5 | ROHM | TO-252-5 | 51 | ₹130.61 · 51 in stock | View |
 | BD33C0AWFP-CE2#C3747778ROHM · TO-252-5 | ROHM | TO-252-5 | 12 | ₹207.35 · 12 in stock | View |
 | BA33BC0WFP-E2#C3747811ROHM · TO-252-5 | ROHM | TO-252-5 | 41 | ₹190.29 · 41 in stock | View |
 | BD33FC0WFP-E2#C3752658ROHM · TO-252-5 | ROHM | TO-252-5 | 24 | ₹254.74 · 24 in stock | View |
