FMDatasheet (PDF)

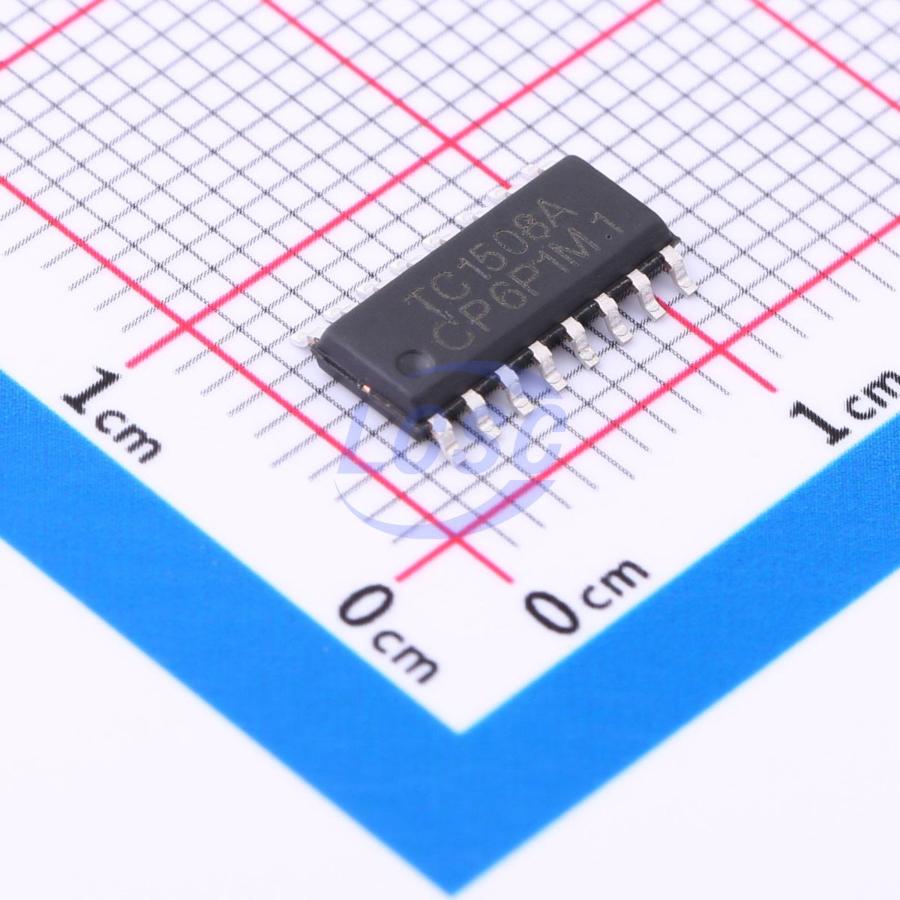

TC1508A
2.4V~7.2V SOP-16 Motor Drivers, Controllers RoHS
SOP-16ROHS CompliantActive
Dual-channel DC motor driver
- Manufacturer
- FM
- Manufacturer part #
- TC1508A
- Store part #
- C5142992
- Package / case
- SOP-16
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,480 in stock
#C5142992
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.09 | ₹85.45 |
| 50+ | ₹13.57 | ₹678.50 |
| 150+ | ₹11.80 | ₹1,770.00 |
| 500+ | ₹10.49 | ₹5,245.00 |
| 2,500+ | ₹8.98 | ₹22,450.00 |
| 4,000+ | ₹8.45 | ₹33,800.00 |
5 × ₹17.09
₹85.45
excl. GST
₹100.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC1508A
₹85.45 for 5 + GST
Specifications
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 2.4V~7.2V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 10uA
- Output Current
- 1.8A
- Peak Current
- 2.5A
- RDS(on)
- 1.6Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
Applications
- Toy motor drive
Key features
- Dual-channel integrated power MOS full-bridge driver
- Max continuous output current up to 1.8A/channel, peak 2.5A
- Forward, reverse, stop and brake function drive
- Wide operating voltage range
- Ultra-low standby and operating current
- SOP-16 package
- Low on-resistance (1.6Ω)
