MICROCHIPDatasheet (PDF)

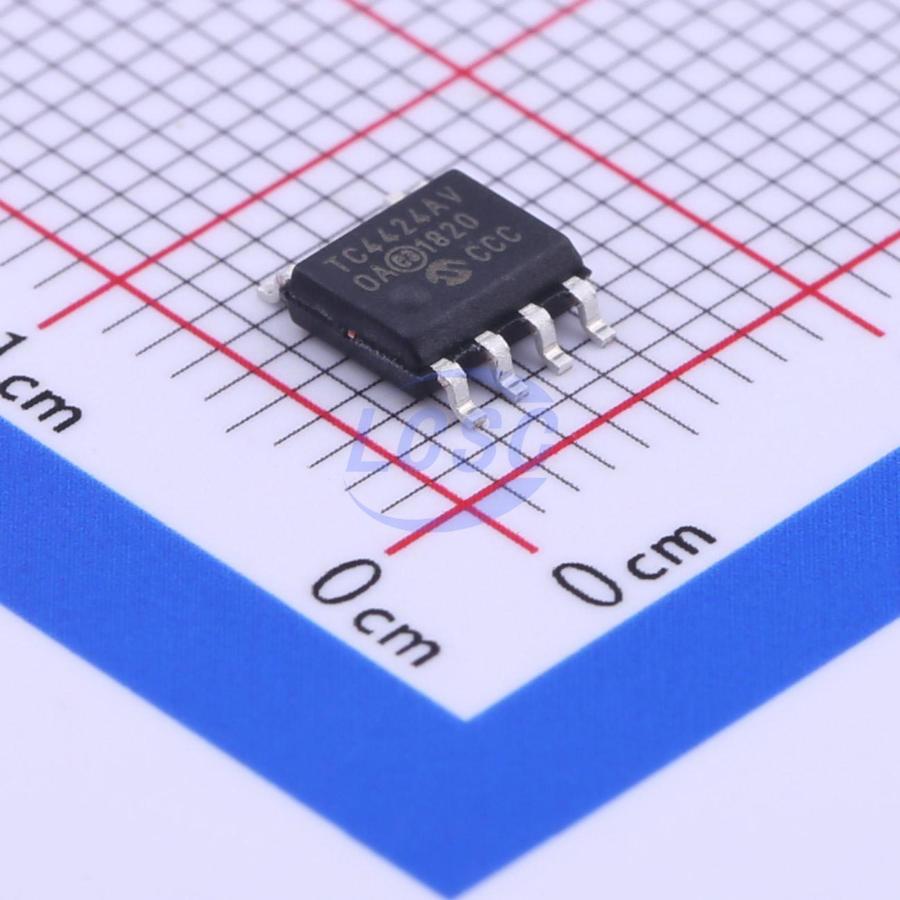

TC4424AVOA713
4.5V~18V 4.5A 4.5A SOIC-8 Gate Drivers RoHS
SOIC-8ROHS3 CompliantActive
3A Dual High-Speed Power MOSFET Drivers
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TC4424AVOA713
- Store part #
- C44150
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,515 in stock
#C44150
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.38 | ₹146.38 |
| 10+ | ₹118.98 | ₹1,189.80 |
| 30+ | ₹105.27 | ₹3,158.10 |
| 100+ | ₹91.79 | ₹9,179.00 |
| 500+ | ₹83.52 | ₹41,760.00 |
| 1,000+ | ₹79.39 | ₹79,390.00 |
1 × ₹146.38
₹146.38
excl. GST
₹172.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
TC4424AVOA713
₹146.38 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 150uA
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4.5A
- Rise Time
- 12ns
- Fall Time
- 12ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 4.5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
Applications
- Switching mode power supplies
- Pulse transformer drive
- Line drivers
- Small DC motor direct drive
Key features
- High peak output current: 4.5A (typical)
- Wide input supply voltage operating range: 4.5V to 18V
- High capacitive load drive capability: 1800 pF in 12 ns
- Short propagation delay: 40 ns (typical)
- Matched rise/fall times
- Low supply current:
- Logic '1' input – 1.0 mA (maximum)
- Logic '0' input – -150 μA (maximum)
- Low output impedance: 2.5Ω (typical)
- Latch-up protection: withstands 1.5A reverse current
- Logic inputs withstand negative swings up to 5V
- Pin-compatible with TC4423/TC4424/TC4425 and TC4426A/TC4427A/TC4428A devices
- Space-saving 8-pin 150 mil body SOIC and 8-pin 6x5 DFN packages
