MICROCHIPDatasheet (PDF)

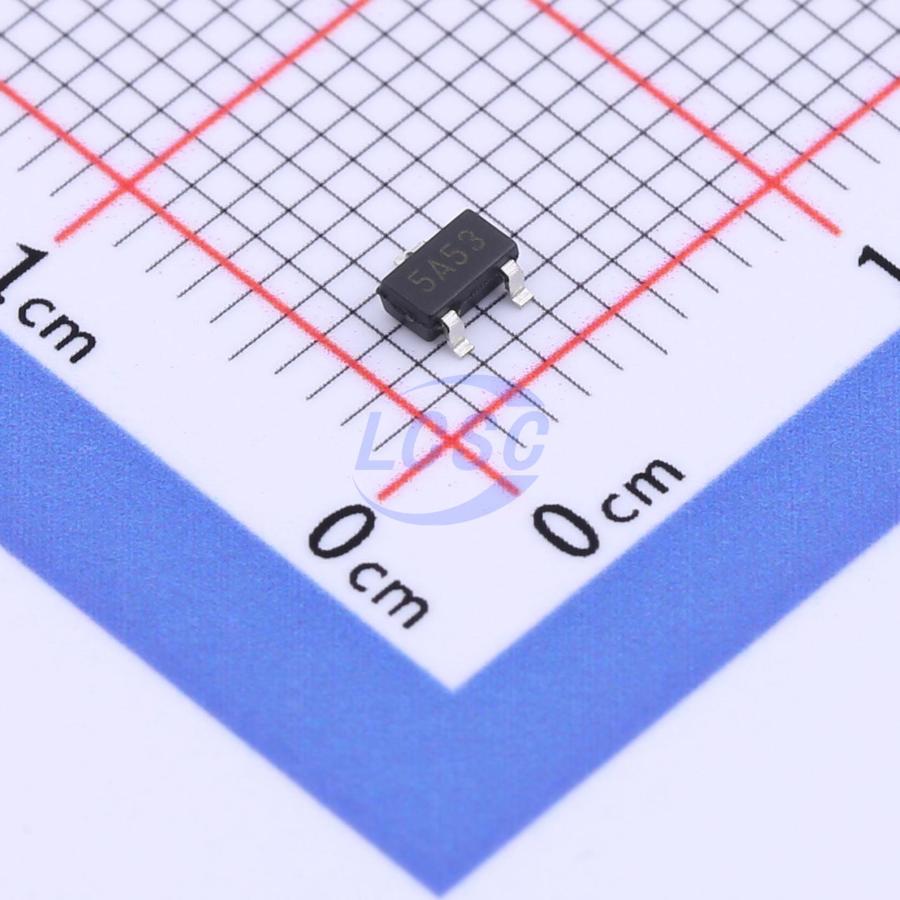

TC595002ECBTR
5V Negative Fixed SOT-23A-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23A-3ROHS3 CompliantActive
Low Dropout, Negative Output Voltage Regulator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TC595002ECBTR
- Store part #
- C626574
- Package / case
- SOT-23A-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C626574
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹289.08 | ₹289.08 |
| 10+ | ₹243.37 | ₹2,433.70 |
| 30+ | ₹214.60 | ₹6,438.00 |
| 100+ | ₹185.21 | ₹18,521.00 |
| 500+ | ₹171.90 | ₹85,950.00 |
| 1,000+ | ₹166.10 | ₹1,66,100.00 |
1 × ₹289.08
₹289.08
excl. GST
₹341.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC595002ECBTR
₹289.08 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 7uA
- Output Configuration
- Negative
- Output Current
- 100mA
- Operating Voltage
- 10V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The TC59 is a low dropout, negative output voltage regulator designed specifically for battery-operated systems. Its full CMOS construction eliminates the wasted ground current typical of bipolar LDOs. This reduced supply current significantly extends battery life, particularly when the TC59 is operated in dropout. Other TC59 key features include low supply current (typically 3.0μA) and low dropout operation (typically 120mV at 50mA). The TC59 is packaged in a small 3-Pin SOT-23A package. The TC59 is a low quiescent current, precision fixed negative output voltage LDO. Unlike bipolar linear regulators, the TC59 supply current does not increase proportionally with load current.
Applications
- Cellular Phones
- Battery Operated Systems
- Palmtops
- Portable Cameras
Key features
- Low Dropout Voltage - Typically 120mV @ 50mA; 380mV @ 100mA for -5.0V Output Part
- Tight Output Voltage Tolerance: ±2% Max
- Low Supply Current: 3.5μA, Typ
- Small Package: 3-Pin SOT-23A
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6902N501MR-G#C3037617TOREX · SOT-23 | TOREX | SOT-23 | 16 | ₹141.05 · 16 in stock | View |
 | GM1402AUJZ-5.0-R7#C48641590GONGMOSEMI · SOT-23 | GONGMOSEMI | SOT-23 | 3,582 | ₹328.66 · 3,582 in stock | View |
| XC62KN5002MR-G#C19259415TOREX · SOT-23 | TOREX | SOT-23 | On request | ₹57.06 · 0 in stock | View | |
