TOSHIBADatasheet (PDF)

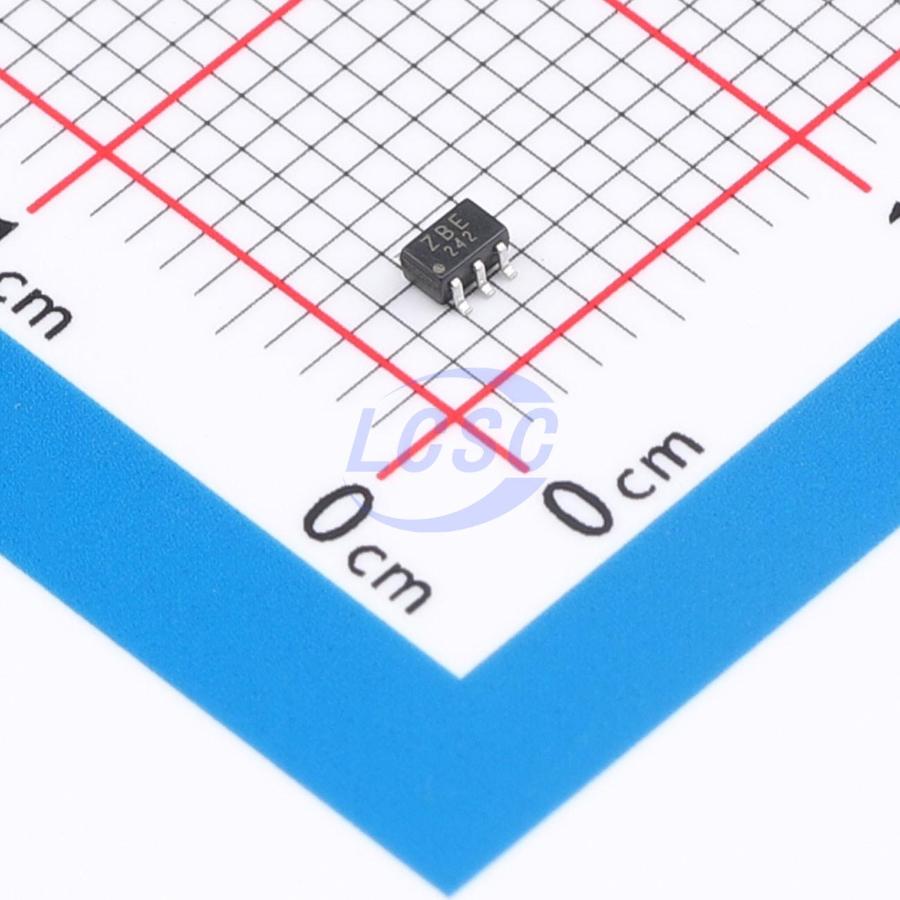

TC7PZ05FU,LJ(CT
1.65V~5.5V 3.5ns@5V,50pF 1uA 2 SOT-363 Gates and Inverters RoHS
SOT-363ROHS3 CompliantActive
CMOS Digital Integrated Circuits Dual Inverter (Open Drain)
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7PZ05FU,LJ(CT
- Store part #
- C5156526
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,845 in stock
#C5156526
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.28 | ₹61.40 |
| 50+ | ₹10.66 | ₹533.00 |
| 150+ | ₹9.87 | ₹1,480.50 |
| 500+ | ₹9.26 | ₹4,630.00 |
| 3,000+ | ₹8.78 | ₹26,340.00 |
| 6,000+ | ₹8.53 | ₹51,180.00 |
5 × ₹12.28
₹61.40
excl. GST
₹72.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7PZ05FU,LJ(CT
₹61.40 for 5 + GST
Specifications
- Logic Family
- TC7PZ
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Propagation Delay
- 3.5ns@5V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -40℃~+85℃
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T_opr = -40 to 125 ℃
- High output current: ±24 mA (min) at V_CC = 3.0 V
- Super high speed operation: tpzL = 2.3 ns (typ.) at V_CC = 5.0 V, C_L = 50 pF
- Operation voltage range: V_CC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
