TOSHIBADatasheet (PDF)

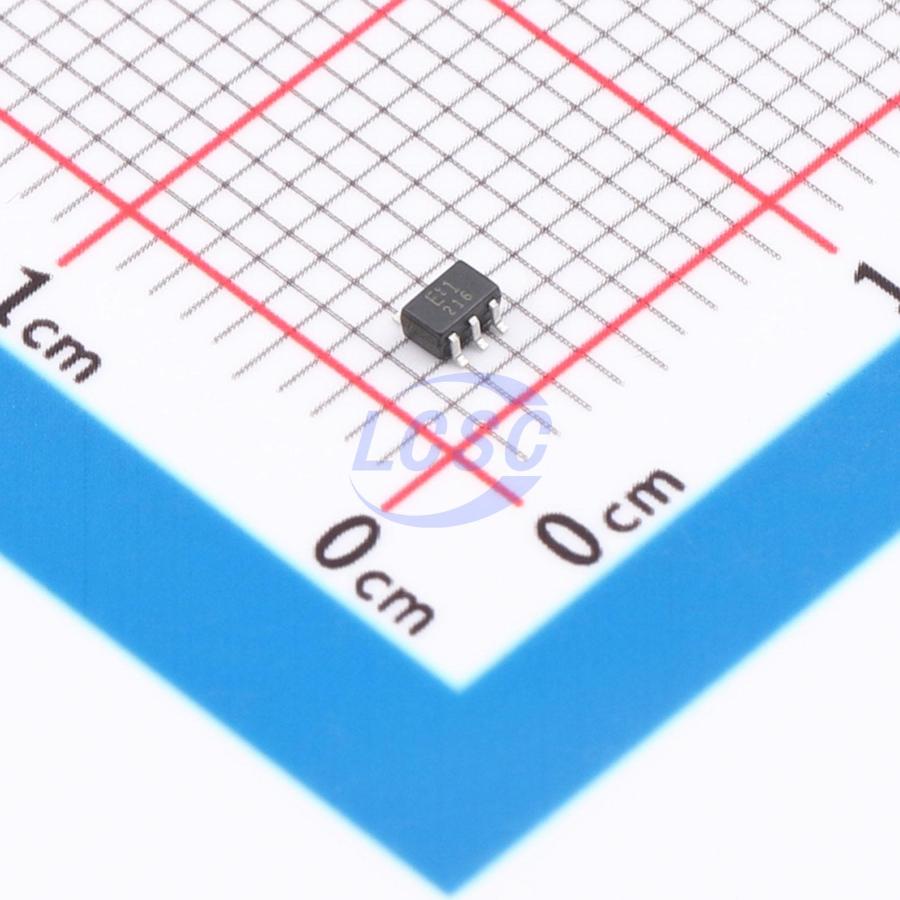

TC7S00FU,LF
NAND Gate IC 1 Channel SSOP-5
SSOP-5ROHS3 CompliantActive
2-Input NAND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S00FU,LF
- Store part #
- C5156524
- Package / case
- SSOP-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,980 in stock
#C5156524
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.09 | ₹120.45 |
| 50+ | ₹18.73 | ₹936.50 |
| 150+ | ₹16.43 | ₹2,464.50 |
| 500+ | ₹13.56 | ₹6,780.00 |
| 3,000+ | ₹12.28 | ₹36,840.00 |
| 6,000+ | ₹11.51 | ₹69,060.00 |
5 × ₹24.09
₹120.45
excl. GST
₹142.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S00FU,LF
₹120.45 for 5 + GST
Specifications
- Logic Family
- TC7S Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 0V~100mV;180mV~260mV
- Propagation Delay
- 17ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 5.68V~5.8V;5.9V~6V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Key features
- High Speed : tpd = 7 ns (typ.) at VCC = 5 V
- Low power dissipation : ICC = 1 μA (Max) at Ta = 25 °C
- High noise immunity : VNH = VNL = 28% VCC (min)
- Output drive capability : 5 LSTTL Loads
- Symmetrical Output Impedance : |IOH| = |IOL| = 2 mA (min)
- Balanced propagation delays : tPLH ≒ tPHL
- Wide operating voltage range : VCC = 2 to 6 V
