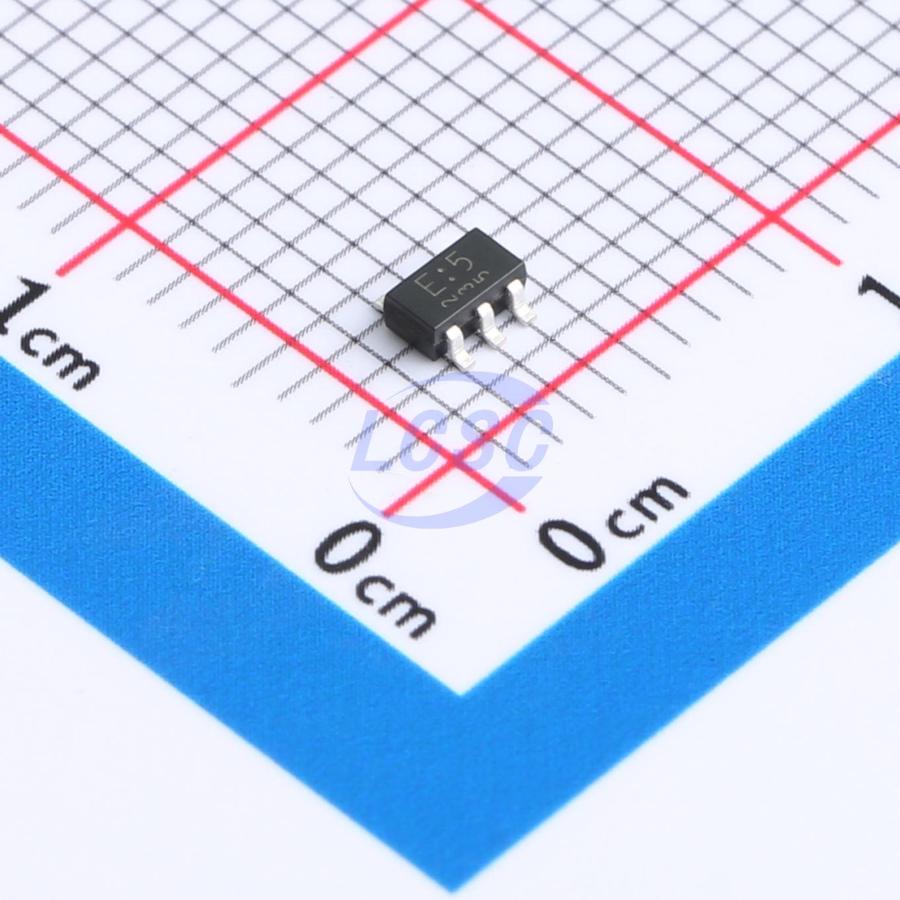

TC7S04F,LF
1uA 2V~6V 1 7ns@5V,15pF SSOP Gates and Inverters RoHS
SSOPROHS3 CompliantActive
CMOS Digital Inverter
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S04F,LF
- Store part #
- C7473284
- Package / case
- SSOP
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,025 in stock
#C7473284
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.80 | ₹129.00 |
| 50+ | ₹20.10 | ₹1,005.00 |
| 150+ | ₹17.65 | ₹2,647.50 |
| 500+ | ₹14.61 | ₹7,305.00 |
| 3,000+ | ₹13.26 | ₹39,780.00 |
| 6,000+ | ₹12.44 | ₹74,640.00 |
5 × ₹25.80
₹129.00
excl. GST
₹152.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S04F,LF
₹129.00 for 5 + GST
Specifications
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.13V;5.63V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 7ns@5V,15pF
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.067 g
Overview
The TC7S04 is a high speed C²MOS Inverter fabricated with silicon gate C²MOS technology. It achieves high speed operation similar to equivalent LSTTL while maintaining the C²MOS low power dissipation. The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output. The input is equipped with protection circuits against static discharge or transient excess voltage. Output currents are 1/2 compared to TC74HC series models.
Key features
- High speed: tpd = 7 ns (typ.) at VCC = 5 V
- Low power dissipation: ICC = 1 μA (max) at Ta = 25℃
- High noise immunity: VNI H = VNI L = 28% VCC (min)
- Output drive capability: 5 LSTTL loads
- Symmetrical output impedance: IIOHI = IOL = 2 mA (min)
- Balanced propagation delays: tpLH ≃ tpHL
- Wide operating voltage range: VCC (opr) = 2 to 6 V
