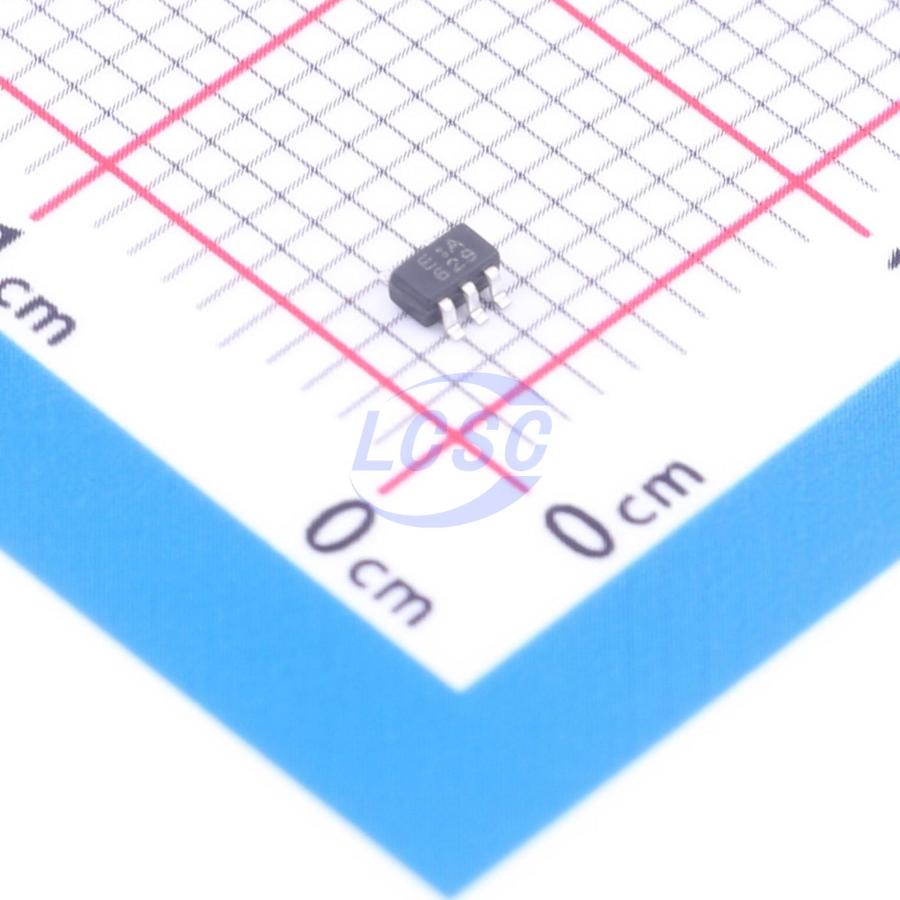

TC7S14FU-TP
Schmitt trigger 1.65V~5.5V 4.4ns@5V,15pF 10uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7S14FU-TP
- Store part #
- C54195002
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C54195002
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.34 | ₹63.40 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.34
₹63.40
excl. GST
₹74.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S14FU-TP
₹63.40 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 4.4ns@5V,15pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
TC7S14 is a single Schmitt-trigger inverter. The device is designed to operate with Vcc ranging from 1.65V to 5.5V and can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V and 5V environments. The TC7S14 contains one inverter that performs the Boolean function Y = A. The device operates as a standalone inverter with Schmitt-trigger inputs, providing different input threshold levels for positive-going inputs (Vt+), which enables the device to tolerate slow or noisy input signals. The device is fully characterized for partial power-down applications using Ioff. The Ioff circuit disables the outputs when the device is powered down, preventing current backflow into the device and thereby avoiding damage. TC7S14 is available in SOT23-5 and SOT353 packages.
Applications
- Active Noise Cancellation (ANC)
- Blood Pressure Monitor
- Embedded PC
- SSD: Client and Enterprise
- TV: LCD/Digital and HDTV
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headsets, Keyboards and Mice
- Power Supply: Telecom/Server AC/DC Controller
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Maximum propagation delay of 4.6ns at Vcc = 3.3V
- Low power consumption, maximum ICC of 10μA
- Output drive current of ±24mA at Vcc = 3.3V
- Latch-up performance exceeds 100mA per JESD 78 Class II
- ESD protection exceeds JESD 22
- Human Body Model (A114-A): 2000V
- Charged Device Model (C101): 1000V
- Operating temperature range: -40°C to 125°C
- Available packages: SOT23-5 and SOT353
