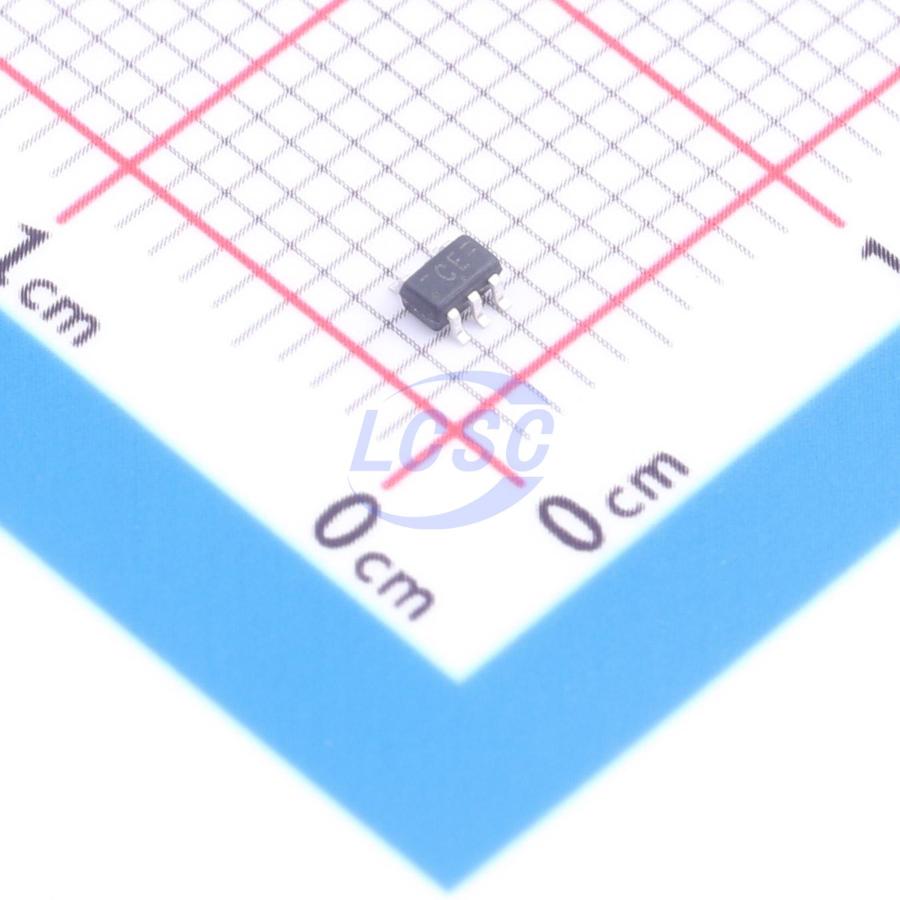

TC7SET08FU-TP
TTL-compatible CMOS 1uA 4.5V~5.5V 7.9ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7SET08FU-TP
- Store part #
- C54780954
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C54780954
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.38 | ₹63.80 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.34 | ₹1,302.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.21 | ₹28,890.00 |
10 × ₹6.38
₹63.80
excl. GST
₹75.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SET08FU-TP
₹63.80 for 10 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Input Logic Level - Low
- 800mV
- Logic Family
- TC7SET
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 4.4V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 4.5V~5.5V
- Number of Channels
- 2;1
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.9ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
