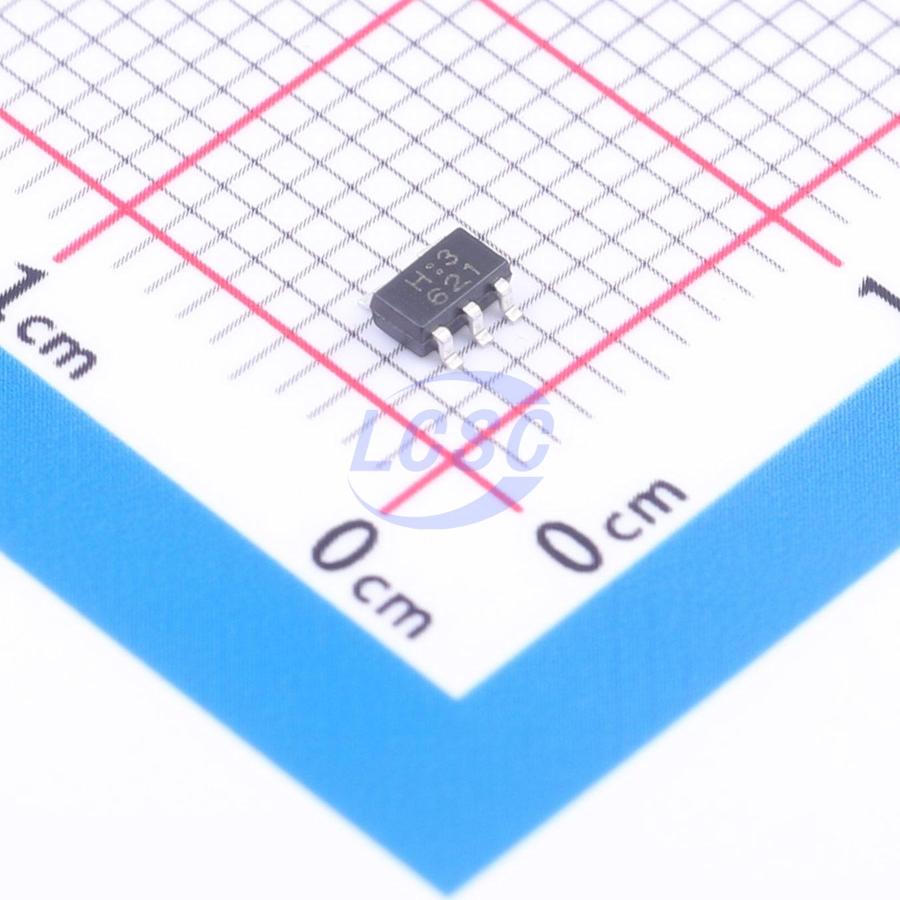

TC7SH02F-TP
10uA 2V~5.5V 7.2ns@2V,15pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7SH02F-TP
- Store part #
- C54195007
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C54195007
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.81 | ₹58.10 |
| 100+ | ₹4.58 | ₹458.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.81
₹58.10
excl. GST
₹68.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH02F-TP
₹58.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 7.2ns@2V,15pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
TC7SH02 is a single 2-input NOR gate. The device is designed for operation with Vcc from 2 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. The TC7SH02 performs the Boolean function Y = (A + B)‾ (i.e., Y = Ā · B̄) in positive logic. This CMOS device maintains low quiescent power consumption over a wide Vcc operating range while providing high output drive capability. The TC7SH02 is offered in SOT23-5 and SOT353 packages.
Key features
- Wide supply voltage range: 2 V to 5.5 V
- Maximum propagation delay Tpp of 3.6 ns at Vcc = 3.3 V
- Low power consumption, maximum Icc of 10 μA
- Output drive current ±24 mA at Vcc = 3.3 V
- Latch-up performance exceeds 100 mA per JESD 78 Class I
- ESD protection exceeds JESD 22
- HBM ESD protection 2000 V (A114-A)
- CDM ESD protection 1000 V (C101)
- Operating temperature range: -40°C to 125°C
- Available in SOT23-5 and SOT353 packages
