TOSHIBADatasheet (PDF)

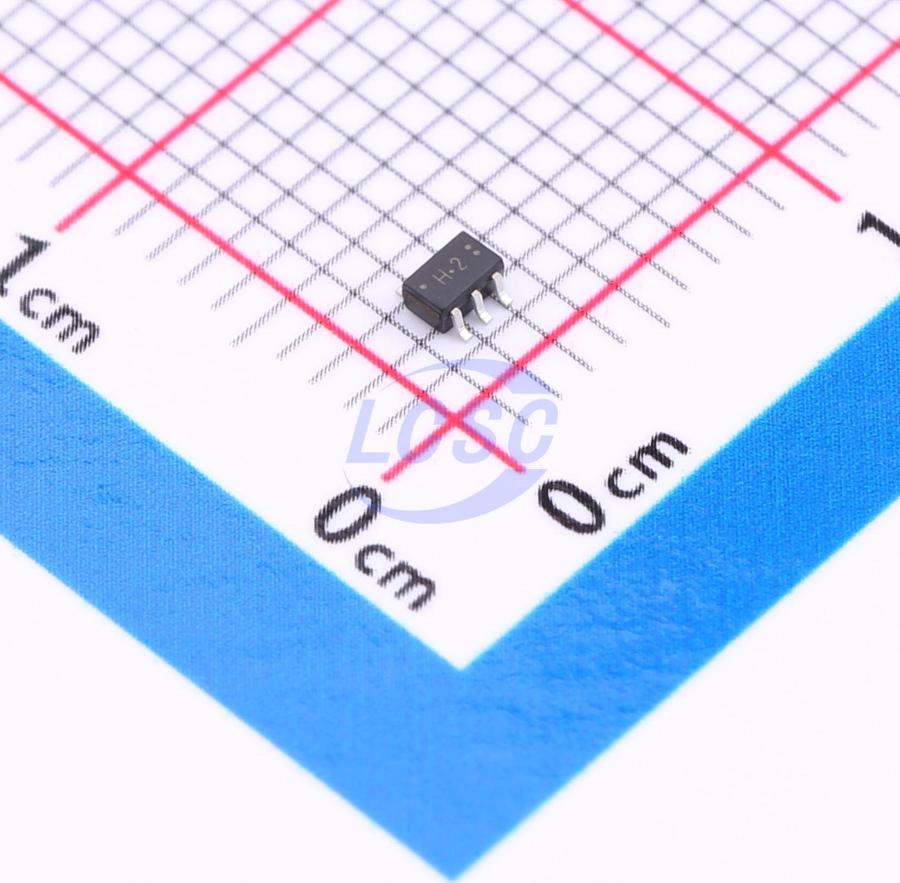

TC7SH08FU(TE85L,JF
AND Gate IC 2 Channel SOT-353-5
SOT-353-5RoHSActive
CMOS Digital Integrated Circuits
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SH08FU(TE85L,JF
- Store part #
- C4153821
- Package / case
- SOT-353-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,530 in stock
#C4153821
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.65 | ₹126.50 |
| 100+ | ₹10.57 | ₹1,057.00 |
| 300+ | ₹9.53 | ₹2,859.00 |
| 3,000+ | ₹8.75 | ₹26,250.00 |
| 6,000+ | ₹8.12 | ₹48,720.00 |
| 9,000+ | ₹7.81 | ₹70,290.00 |
10 × ₹12.65
₹126.50
excl. GST
₹149.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH08FU(TE85L,JF
₹126.50 for 10 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- TC7SH
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 2;2
- Propagation Delay
- 4.3ns@5V,15pF
- Output Logic Level - Low
- 100mV;360mV
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
Dual-Input AND Gate
Key features
- AEC-Q100 (Revision H) compliant
- Wide operating temperature range: Topr = -40 to 125°C
- High-speed operation: tpd = 4.3 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
- Low power consumption: ICC = 2.0 μA (max.) (Ta = 25°C)
- High noise immunity: V NIH = V NIL = 28%VCC (min.)
- 5.5 V tolerant inputs
- Wide operating voltage range: VCC = 2.0 to 5.5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | U74AHC1G08G-AL5-R#C5148445UTC · SOT-353 | UTC | SOT-353 | 1,100 | ₹7.81 · 1,100 in stock | View |
