TOSHIBADatasheet (PDF)

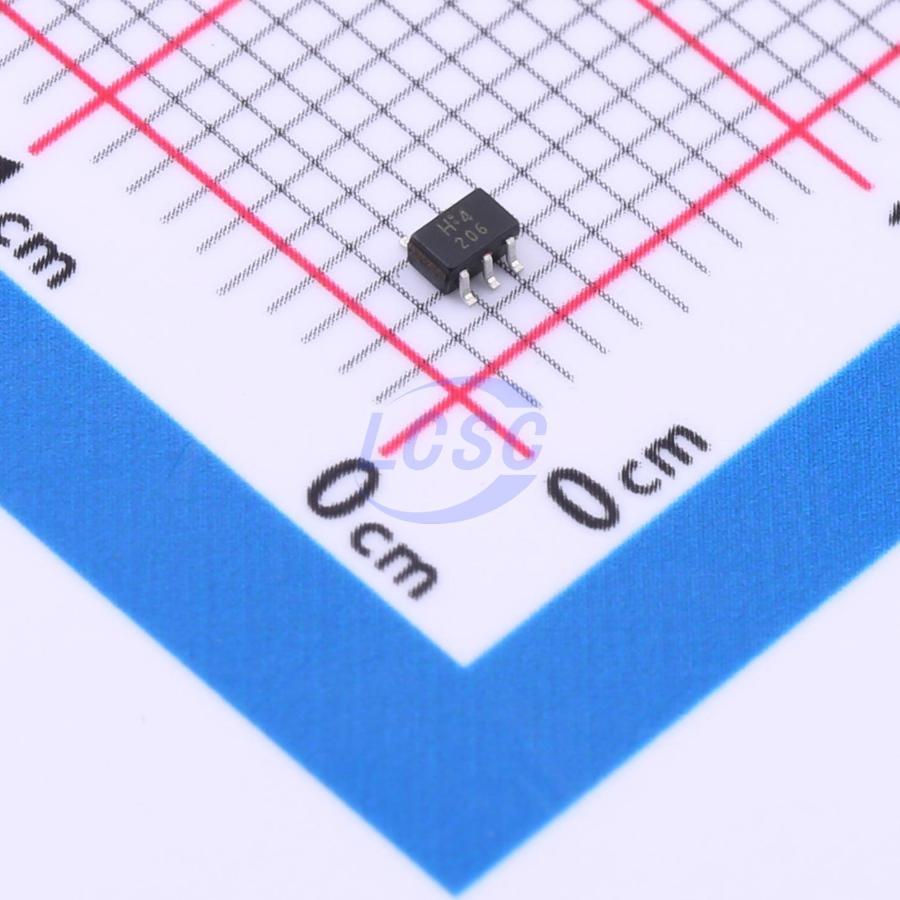

TC7SH32FU,LJ(CT
2uA 2V~5.5V 11.4ns@3.3V,50pF SOT-353-5 Gates and Inverters RoHS
SOT-353-5ROHS3 CompliantActive
2-Input OR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SH32FU,LJ(CT
- Store part #
- C4153822
- Package / case
- SOT-353-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,840 in stock
#C4153822
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.71 | ₹77.10 |
| 100+ | ₹6.20 | ₹620.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 3,000+ | ₹4.88 | ₹14,640.00 |
| 6,000+ | ₹4.42 | ₹26,520.00 |
| 9,000+ | ₹4.19 | ₹37,710.00 |
10 × ₹7.71
₹77.10
excl. GST
₹90.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH32FU,LJ(CT
₹77.10 for 10 + GST
Specifications
- Logic Family
- TC7SH
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V
- Input Logic Level - Low
- 500mV
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 2;1
- Current - Output High(IOH)
- 8mA
- Propagation Delay
- 11.4ns@3.3V,50pF
- Output Logic Level - Low
- 100mV;360mV
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Key features
- High speed operation : propagation delay time (t_pd) = 3.8 ns (typ.) at supply voltage (V_CC) = 5 V, 15 pF
- Low power dissipation : supply current (I_CC) = 2 μA (max) at ambient temperature (Ta) = 25 ℃
- High noise immunity : high-level noise margin (V_NH) = low-level noise margin (V_NL) = 28% of supply voltage (V_CC) (min)
- 5.5-V tolerant inputs
- Wide operating voltage range : supply voltage (V_CC) = 2 to 5.5 V
