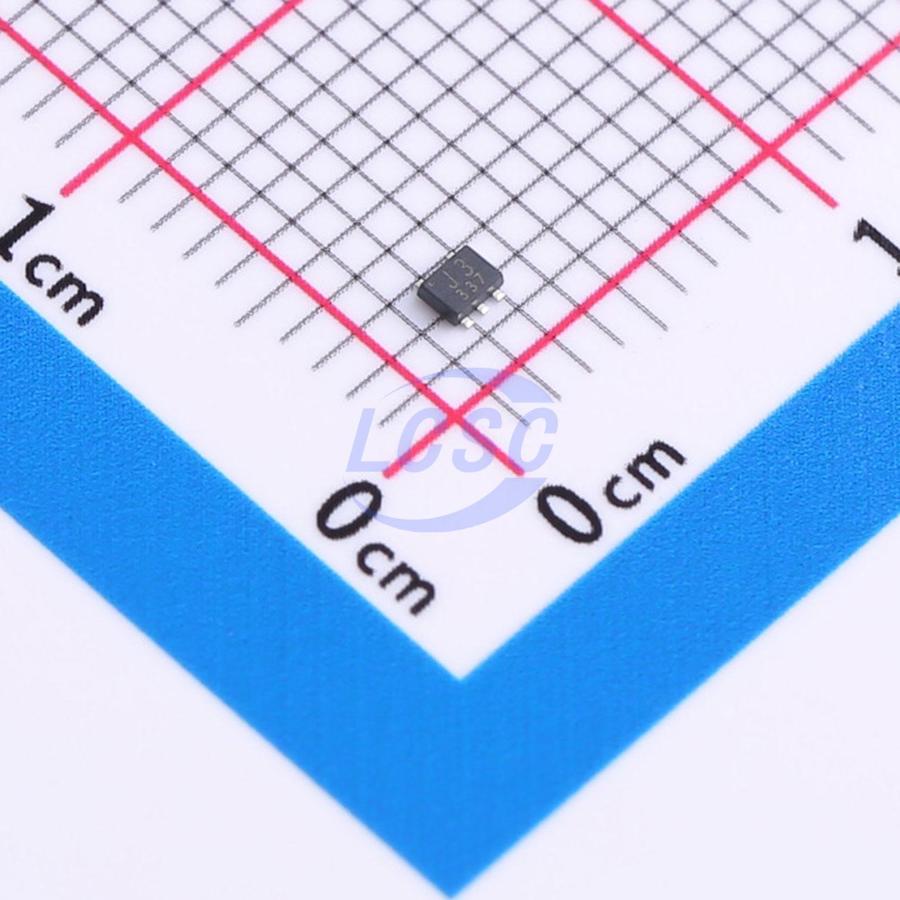

TC7SZ02FE,LJ(CT
2uA 1.65V~5.5V 4.3ns@5V,50pF SOT-553 Gates and Inverters RoHS
SOT-553ROHS3 CompliantActive
2-Input NOR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ02FE,LJ(CT
- Store part #
- C7066982
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,875 in stock
#C7066982
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.44 | ₹62.20 |
| 50+ | ₹10.82 | ₹541.00 |
| 150+ | ₹10.03 | ₹1,504.50 |
| 500+ | ₹9.42 | ₹4,710.00 |
| 2,500+ | ₹8.94 | ₹22,350.00 |
| 4,000+ | ₹8.69 | ₹34,760.00 |
5 × ₹12.44
₹62.20
excl. GST
₹73.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC7SZ02FE,LJ(CT
₹62.20 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Logic Family
- TC7SZ Series
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.8V~4.2V;4.4V~4.5V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 0V~100mV;220mV~550mV
- Propagation Delay
- 4.3ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
2-Input NOR Gate
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T opr = -40 to 125 °C
- High output current: ±24 mA (min) at V CC = 3.0 V
- Super high speed operation: t pd = 2.4 ns (typ.) at V CC = 5.0 V, C L = 50 pF
- Operation voltage range: V CC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V V CC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G02DRLR#C194998TI · SOT-553-5 | TI | SOT-553-5 | 95 | ₹21.96 · 95 in stock | View |
 | 74LVC1G02Z-7#C842515DIODES · SOT-553-5 | DIODES | SOT-553-5 | 180 | ₹21.46 · 180 in stock | View |
