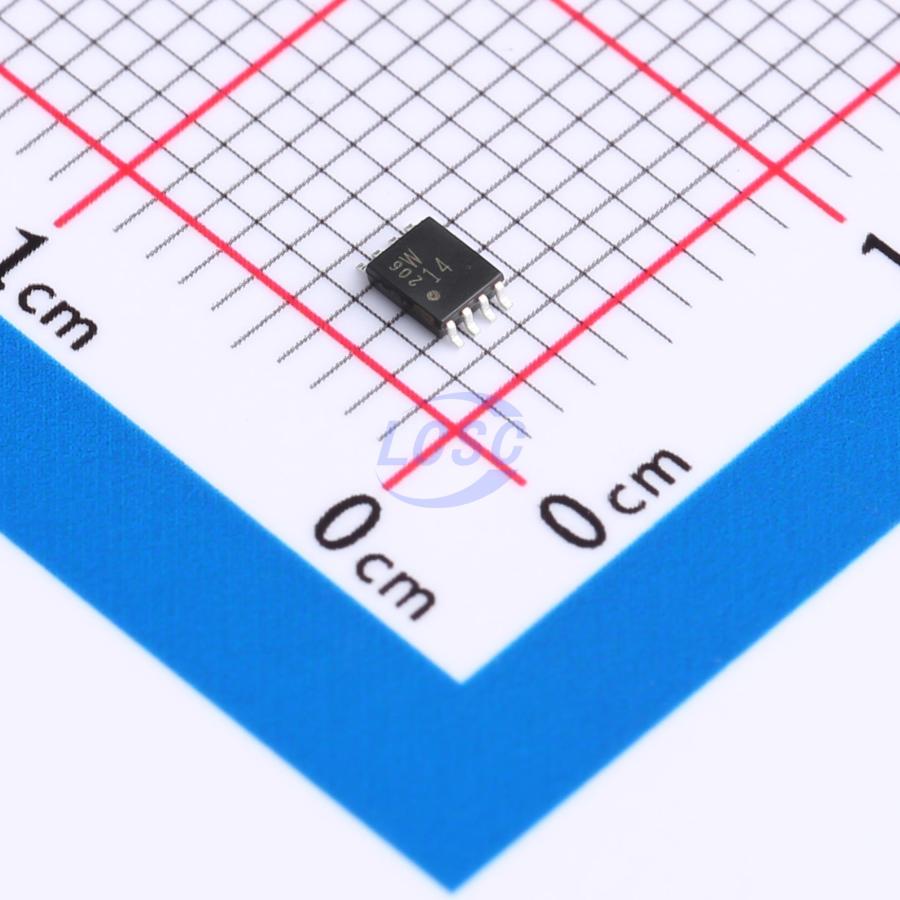

TC7W14FK,LF

The TC7W14 is high speed C²MOS Schmitt Inverter fabricated with silicon gate C²MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the C²MOS low power dissipation. Pin configuration and function are the same as the TC7WU04 but the inputs have 25% VCC hysteresis and with its Schmitt trigger function, the TC7W14 can be used as a line receivers which will receive slow input signals. All inputs are equipped with protection circuits against static discharge or transient excess voltage.

Key features

• High speed: tₚd = 11 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 1 μA (max) at Ta = 25 °C
• High noise immunity: VH = 1.1 V at VCC = 5 V
• Output drive capability: 10 LSTTL loads
• Symmetrical output impedance: |IOH| = IOL = 4 mA (min)
• Balanced propagation delays: ΔpLH ≃ ΔpH
• Wide operating voltage range: VCC (opr) = 2 to 6 V
