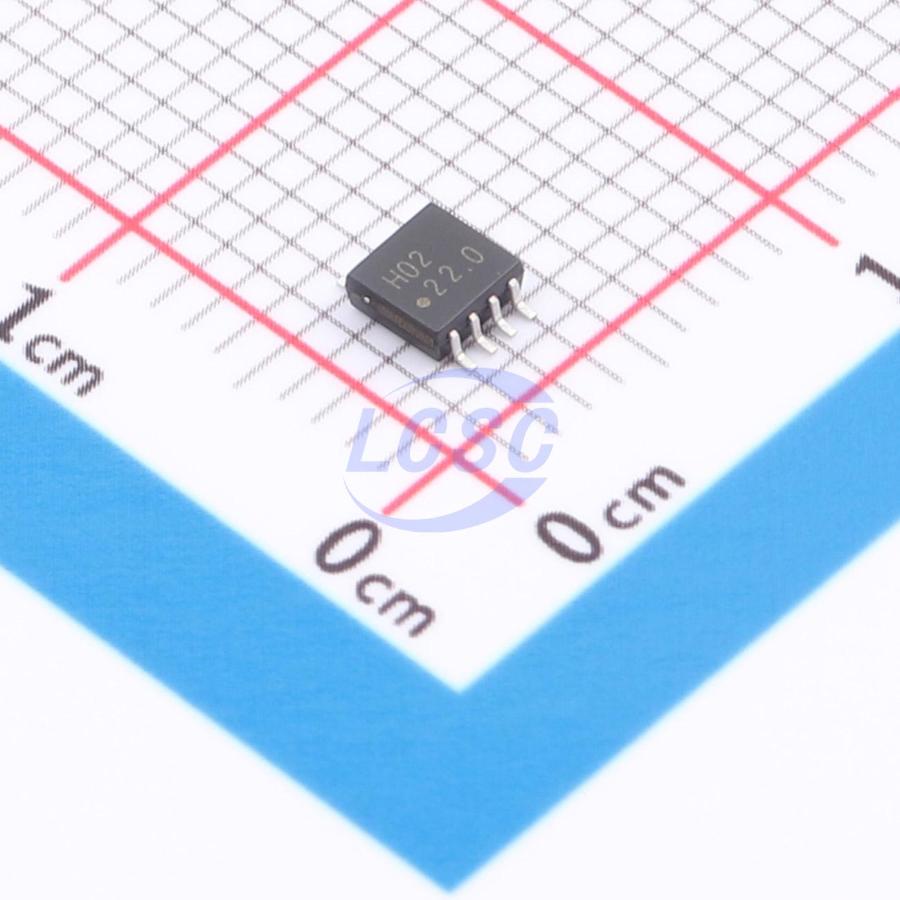

TC7WH02FU,LJ(CT
2uA 2V~5.5V 7.5ns@5V,50pF MSOP-8-2.8mm(TSSOP-8) Gates and Inverters RoHS
MSOP-8-2.8mm(TSSOP-8)ROHS3 CompliantActive
Dual 2-Input NOR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WH02FU,LJ(CT
- Store part #
- C6880163
- Package / case
- MSOP-8-2.8mm(TSSOP-8)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C6880163
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.39 | ₹91.95 |
| 50+ | ₹15.90 | ₹795.00 |
| 150+ | ₹14.84 | ₹2,226.00 |
| 500+ | ₹13.51 | ₹6,755.00 |
| 3,000+ | ₹12.91 | ₹38,730.00 |
| 6,000+ | ₹12.56 | ₹75,360.00 |
5 × ₹18.39
₹91.95
excl. GST
₹108.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WH02FU,LJ(CT
₹91.95 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV
- Input Logic Level - High
- 1.5V
- Logic Family
- TC7WH Series
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 2;2
- Output Logic Level - Low
- 100mV;360mV;440mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
Dual 2-Input NOR Gate
Key features
- Wide operating temperature range: Topr = -40 to 125°C
- High-speed operation: tpd = 3.6 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
- Low power consumption: ICC = 2.0 μA (max.) (Ta = 25°C)
- High noise immunity: VNI H = VNIL = 28%VCC (min.)
- 5.5 V tolerant inputs
- Balanced propagation delay: tpLH ≈ tpHL
- Wide supply voltage range: VCC = 2.0 to 5.5 V
- Pin-compatible and functionally equivalent to TC7W02
