TOSHIBADatasheet (PDF)

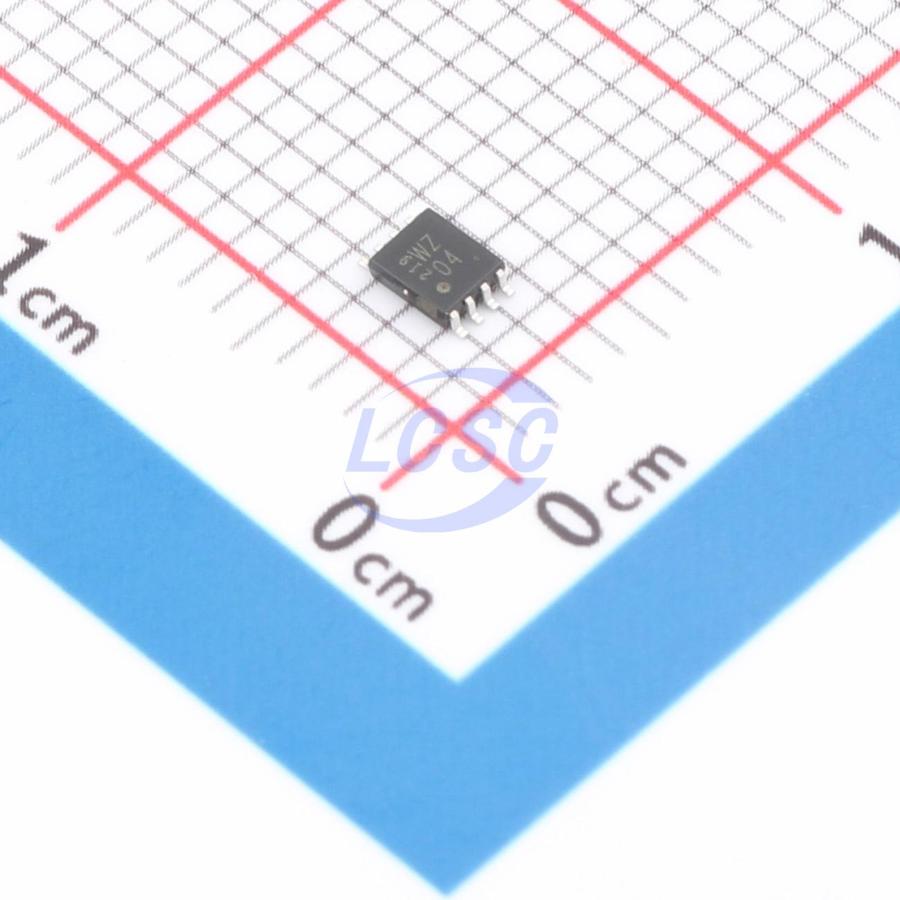

TC7WZ04FK,LJ(CT
1.65V~5.5V 3.6ns@5V,50pF 10uA 3 US-8 Gates and Inverters RoHS
US-8ROHS CompliantActive
CMOS Digital Integrated Circuits Silicon Monolithic
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WZ04FK,LJ(CT
- Store part #
- C5956636
- Package / case
- US-8
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,865 in stock
#C5956636
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.12 | ₹50.12 |
| 10+ | ₹43.61 | ₹436.10 |
| 30+ | ₹40.79 | ₹1,223.70 |
| 100+ | ₹37.31 | ₹3,731.00 |
| 500+ | ₹35.58 | ₹17,790.00 |
| 1,000+ | ₹34.72 | ₹34,720.00 |
1 × ₹50.12
₹50.12
excl. GST
₹59.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WZ04FK,LJ(CT
₹50.12 for 1 + GST
Specifications
- Logic Family
- 7WZ
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3.6ns@5V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 3
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T(opr) = -40 to 125 °C
- High output current: ±24 mA (min) at V(CC) = 3.0 V
- Super high speed operation: t(pd) = 2.3 ns (typ.) at V(CC) = 5.0 V, C(L) = 50 pF
- Operation voltage range: V(CC) = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V V(CC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC3GU04DCUR#C2876507TI · VFSOP-8-2.3mm | TI | VFSOP-8-2.3mm | 216 | ₹89.06 · 216 in stock | View |
