TOSHIBADatasheet (PDF)

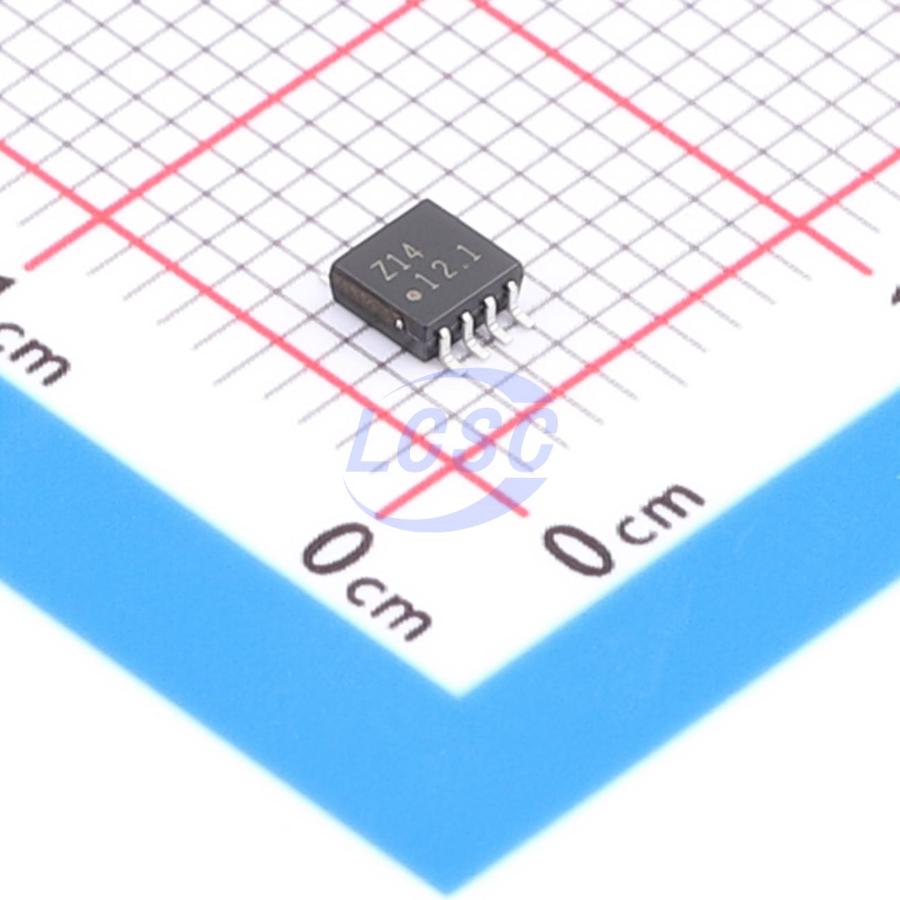

TC7WZ14FU,LJ(CT
Schmitt trigger 1.65V~5.5V 3.7ns@5V,50pF 1uA 3 SOT-505 Gates and Inverters RoHS
SOT-505ROHS CompliantActive
Triple Schmitt Inverter
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WZ14FU,LJ(CT
- Store part #
- C7421352
- Package / case
- SOT-505
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C7421352
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.88 | ₹164.40 |
| 50+ | ₹28.95 | ₹1,447.50 |
| 150+ | ₹27.27 | ₹4,090.50 |
| 500+ | ₹25.16 | ₹12,580.00 |
| 3,000+ | ₹24.22 | ₹72,660.00 |
| 6,000+ | ₹23.67 | ₹1,42,020.00 |
5 × ₹32.88
₹164.40
excl. GST
₹193.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WZ14FU,LJ(CT
₹164.40 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Propagation Delay
- 3.7ns@5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.55V;2.2V;2.9V;4.4V;1.29V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 3
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
Key features
- Wide operating temperature range: Topr = -40 to 125 ℃
- High output current: ±24 mA (min) at VCC = 3.0 V
- Super high speed operation: tpd = 3.7 ns (typ.) at VCC = 5.0 V, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V VCC
