TOSHIBADatasheet (PDF)

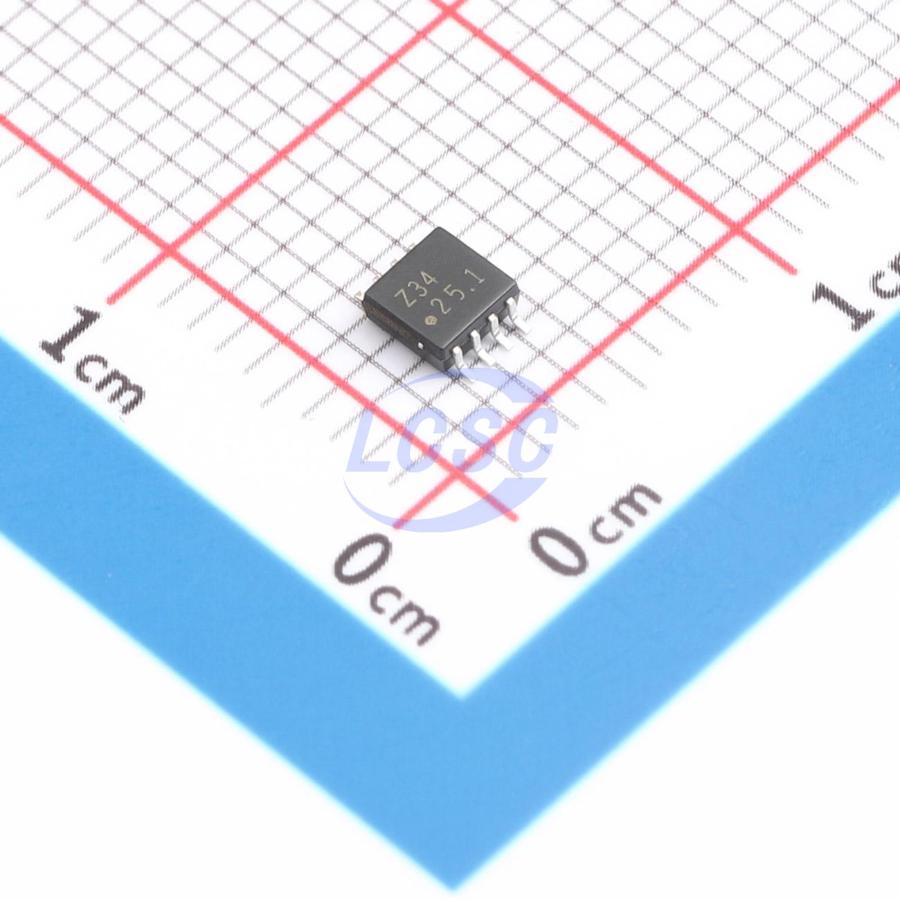

TC7WZ34FU,LJ(CT
1uA 1.65V~5.5V 4.4ns@1.8V,15pF SOT-505 Gates and Inverters
SOT-505RoHSActive
CMOS Digital Integrated Circuits
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WZ34FU,LJ(CT
- Store part #
- C7421353
- Package / case
- SOT-505
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,520 in stock
#C7421353
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.91 | ₹114.55 |
| 50+ | ₹20.43 | ₹1,021.50 |
| 150+ | ₹19.36 | ₹2,904.00 |
| 500+ | ₹18.02 | ₹9,010.00 |
| 3,000+ | ₹15.37 | ₹46,110.00 |
| 6,000+ | ₹15.02 | ₹90,120.00 |
5 × ₹22.91
₹114.55
excl. GST
₹135.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WZ34FU,LJ(CT
₹114.55 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.55V;1.7V;2.2V;2.9V;4.4V;1.29V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;3
- Propagation Delay
- 4.4ns@1.8V,15pF
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.083 g
Overview
Key features
- Wide operating temperature range: T_opr = -40 to 125 ℃
- High output current: ±24 mA (min) at V_CC = 3.0 V
- Super high speed operation: t_pd = 2.4 ns (typ.) at V_CC = 5.0 V, C_L = 50 pF
- Operation voltage range: V_CC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V V_CC
