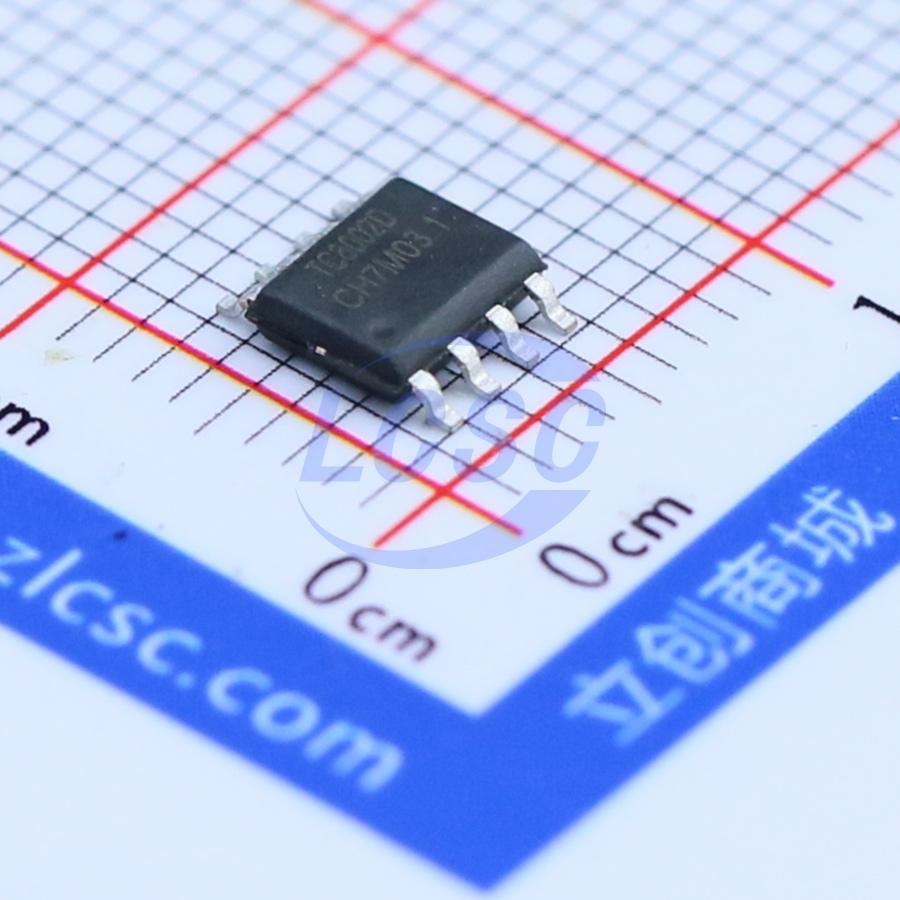

TC8002D

6.5mA 2V~5.5V 1-Channel 3Wx1@3Ω SOIC-8 Audio Amplifiers RoHS

SOIC-8ROHS CompliantActive

3W Audio Power Amplifier IC

Manufacturer: FM
Manufacturer part #: TC8002D
Store part #: C87265
Package / case: SOIC-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

21,640 in stock

#C87265

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹14.47	₹72.35
50+	₹11.51	₹575.50
150+	₹10.03	₹1,504.50
500+	₹8.92	₹4,460.00
2,500+	₹8.02	₹20,050.00
4,000+	₹7.58	₹30,320.00

Quantity (min 5, multiples of 5)

5 × ₹14.47

₹72.35

excl. GST

₹85.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TC8002D

₹72.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Quiescent Current: 6.5mA
Voltage - Supply: 2V~5.5V
Features: Enable/shutdown function
Total Harmonic Distortion + Noise (THD+N): 0.25%
Operating Temperature: -65℃~+150℃
Speaker Channels: 1-Channel
Output Power: 3Wx1@3Ω
Power Supply Rejection Ratio (PSRR): 60dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.166 g

Overview

TC8002D is an audio power amplifier IC with shutdown mode. Operating at a 5V supply voltage, it delivers an average output power of 3W into a 3Ω load with THD not exceeding 10%. For portable devices, when VDD is applied to the shutdown pin, TC8002D enters shutdown mode with extremely low power consumption — quiescent current IQ as low as 0.6μA. TC8002D is an audio power amplifier IC designed for high-power, high-fidelity applications. It requires minimal external components and operates over a supply voltage range of 2.0V to 5.5V.
