TIDatasheet (PDF)

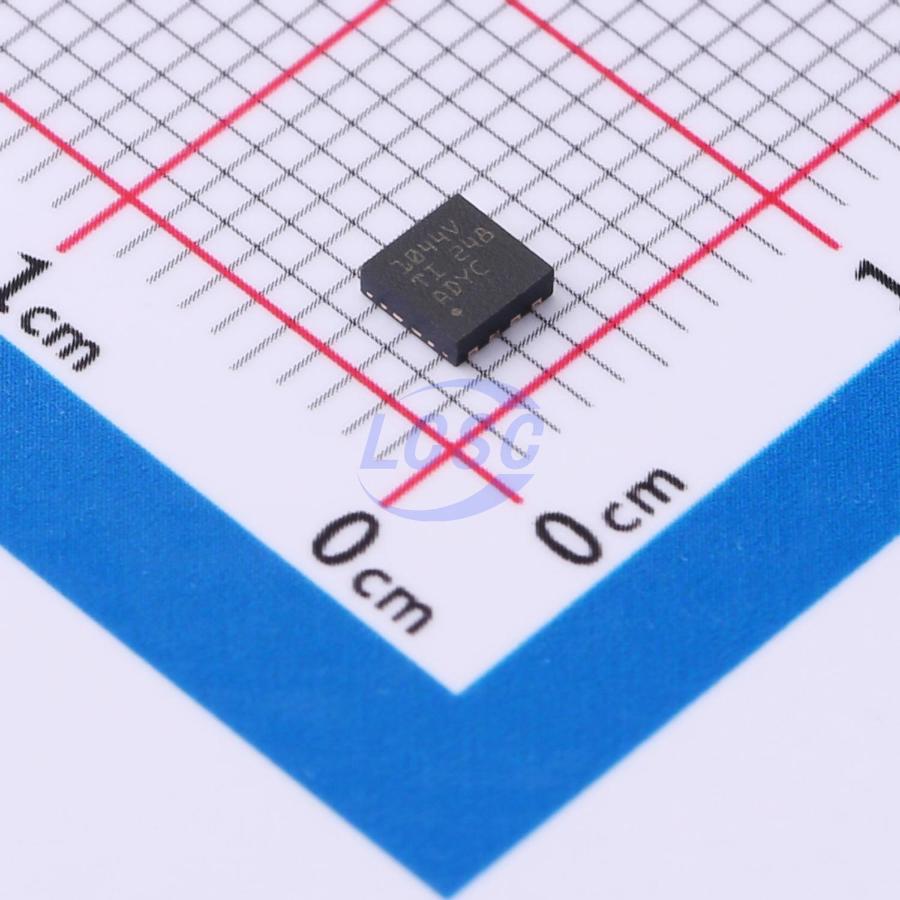

TCAN1044VDRBRQ1
4.5V~5.5V CAN FD Transceiver 8Mbps SON-8(3x3) Drivers, Receivers, Transceivers RoHS
SON-8(3x3)ROHS3 CompliantActive
Automotive CAN FD transceiver with 1.8V I/O support and fault protection
- Manufacturer
- TI
- Manufacturer part #
- TCAN1044VDRBRQ1
- Store part #
- C5215851
- Package / case
- SON-8(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,542 in stock
#C5215851
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.63 | ₹76.63 |
| 10+ | ₹61.18 | ₹611.80 |
| 30+ | ₹54.43 | ₹1,632.90 |
| 100+ | ₹46.16 | ₹4,616.00 |
| 500+ | ₹42.46 | ₹21,230.00 |
| 1,000+ | ₹40.27 | ₹40,270.00 |
1 × ₹76.63
₹76.63
excl. GST
₹90.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TCAN1044VDRBRQ1
₹76.63 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN FD Transceiver
- number of channels
- 1
- Data Rate
- 8Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Low-power mode;Wake-up function;Bus fault protection;Undervoltage Protection;TXD dominant timeout;Thermal shutdown protection;Hot-swap protection;Integrated level shifting;ESD protection
- Supply Current
- 70mA
- Quiescent Supply Current
- 1uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
The TCAN1044-Q1 is a high-speed Controller Area Network (CAN) transceiver that meets the physical layer requirements of the ISO 11898-2:2016 high-speed CAN specification. The TCAN1044-Q1 transceiver supports both traditional CAN and CAN FD networks (with data rates up to 8 megabits per second (Mbps)). The TCAN1044-Q1 includes an internal logic level conversion function via the V₁₀ terminal, allowing the transceiver I/O to be directly connected to 1.8V, 2.5V, 3.3V, or 5V logic I/O. This transceiver supports a low-power standby mode and can be awakened via CAN in accordance with the wake-up mode (WUP) defined in ISO 11898-2:2016. Additionally, the TCAN1044-Q1 transceiver also includes protection and diagnostic functions, supporting thermal shutdown (TSD), TXD dominant timeout (DTO), power supply undervoltage detection, and bus fault protection up to ±58V. Protection Features: Bus fault protection: ±58V Undervoltage protection TXD dominant timeout (DTO) Data rates as low as 9.2 kbps Thermal shutdown protection (TSD) Operating Modes: Normal mode Low-power standby mode with support for remote wake-up request function Optimized performance when not powered on Bus and logic pins are high impedance (no load on the running bus or application) Support for hot-plugging: Interference-free operation during power-on/power-off on the bus and RXD output Junction temperature range: -40°C to 150°C Receiver common-mode input voltage: ±12V Available in SOIC (8), SOT23 (8) packages (2.9mm × 1.60mm), and leadless VSON (8) packages (3.0mm x 3.0mm), with improved automated optical inspection (AOI) capabilities.
Applications
- Automotive & Transportation
- Body Control Module
- Automotive Gateway
- Advanced Driver Assistance Systems (ADAS)
- Infotainment Systems
Key features
- AEC-Q100 qualified: automotive application compliant
- Temperature Grade 1: -40°C to 125°C TA
- Compliant with ISO 11898-2:2016 and ISO 11898-5:2007 physical layer standards
- Short symmetrical propagation delay for increased timing margin
- Higher data rates on loaded CAN networks
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TCAN1044DRBRQ1#C3234120TI · SON-8(3x3) | TI | SON-8(3x3) | 105 | ₹93.89 · 105 in stock | View |
 | TCAN1462VDRBRQ1#C5215833TI · SON-8(3x3) | TI | SON-8(3x3) | 977 | ₹482.72 · 977 in stock | View |
 | SIT1462QTK#C52953434SIT · DFN-8L(3x3) | SIT | DFN-8L(3x3) | 5,629 | ₹66.57 · 5,629 in stock | View |
 | MCP2542FDT-E/MF#C623190MICROCHIP · DFN-8-EP(3x3) | MICROCHIP | DFN-8-EP(3x3) | 953 | ₹237.66 · 953 in stock | View |
 | MCP2542FD-E/MF#C635109MICROCHIP · DFN-8-EP(3x3) | MICROCHIP | DFN-8-EP(3x3) | 290 | ₹262.92 · 290 in stock | View |
