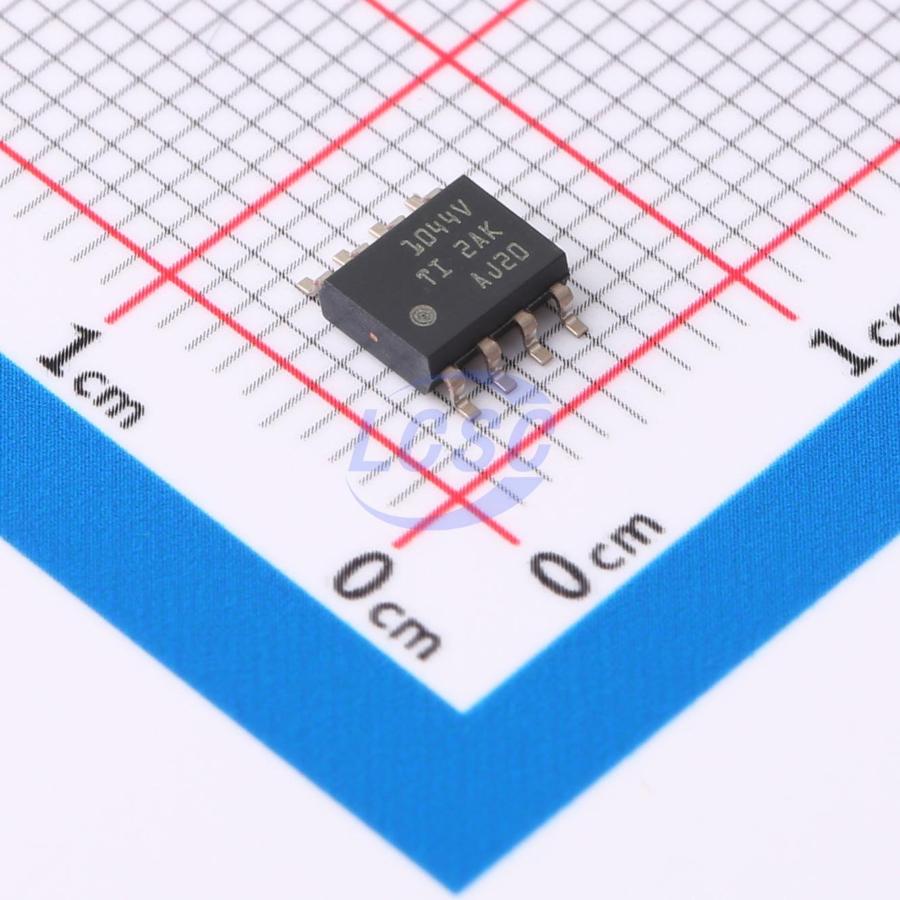

TCAN1044VDRQ1
4.5V~5.5V CAN FD Transceiver 8Mbps SOIC-8 Drivers, Receivers, Transceivers RoHS
SOIC-8ROHS3 CompliantActive
TCAN1044V-Q1 Automotive CAN FD Transceiver with 1.8V I/O Support and Fault Protection
- Manufacturer
- TI
- Manufacturer part #
- TCAN1044VDRQ1
- Store part #
- C1852061
- Package / case
- SOIC-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,154 in stock
#C1852061
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.26 | ₹59.26 |
| 10+ | ₹46.68 | ₹466.80 |
| 30+ | ₹41.03 | ₹1,230.90 |
| 100+ | ₹34.31 | ₹3,431.00 |
| 500+ | ₹31.26 | ₹15,630.00 |
| 1,000+ | ₹29.53 | ₹29,530.00 |
1 × ₹59.26
₹59.26
excl. GST
₹69.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TCAN1044VDRQ1
₹59.26 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN FD Transceiver
- number of channels
- 1
- Data Rate
- 8Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Low-power mode;Wake-up function;Bus fault protection;Undervoltage Protection;TXD dominant timeout;Thermal shutdown protection;Hot-swap protection;Integrated level shifting;ESD protection
- Supply Current
- 70mA
- Quiescent Supply Current
- 1uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
The TCAN1044-Q1 is a high-speed Controller Area Network (CAN) transceiver that meets the physical layer requirements of the ISO 11898-2:2016 high-speed CAN specification. The TCAN1044-Q1 transceiver supports both traditional CAN and CAN FD networks (with data rates up to 8 megabits per second (Mbps)). The TCAN1044-Q1 includes an internal logic level conversion function via the V₁₀ terminal, allowing the transceiver I/O to be directly connected to 1.8V, 2.5V, 3.3V, or 5V logic I/O. This transceiver supports a low-power standby mode and can be awakened via CAN in accordance with the wake-up mode (WUP) defined in ISO 11898-2:2016. Additionally, the TCAN1044-Q1 transceiver also includes protection and diagnostic functions, supporting thermal shutdown (TSD), TXD dominant timeout (DTO), power supply undervoltage detection, and bus fault protection up to ±58V. Protection Features: Bus fault protection: ±58V Undervoltage protection TXD dominant timeout (DTO) Data rates as low as 9.2 kbps Thermal shutdown protection (TSD) Operating Modes: Normal mode Low-power standby mode with support for remote wake-up request function Optimized performance when not powered on Bus and logic pins are high impedance (no load on the running bus or application) Support for hot-plugging: Interference-free operation during power-on/power-off on the bus and RXD output Junction temperature range: -40°C to 150°C Receiver common-mode input voltage: ±12V Available in SOIC (8), SOT23 (8) packages (2.9mm × 1.60mm), and leadless VSON (8) packages (3.0mm x 3.0mm), with improved automated optical inspection (AOI) capabilities.
Applications
- Automotive & Transportation
- Body Control Module
- Automotive Gateway
- Advanced Driver Assistance Systems (ADAS)
- Infotainment Systems
Key features
- AEC-Q100 qualified: automotive application compliant
- Temperature Grade 1: -40°C to 125°C TA
- Compliant with ISO 11898-2:2016 and ISO 11898-5:2007 physical layer standards
- Short symmetrical propagation delay for increased timing margin
- Higher data rates on loaded CAN networks
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TCAN1044DRQ1#C3235017TI · SOIC-8 | TI | SOIC-8 | 3,351 | ₹98.54 · 3,351 in stock | View |
 | MCP2542FDT-E/SN#C191251MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 50 | ₹292.93 · 50 in stock | View |
 | MCP2542FD-E/SN#C220598MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 758 | ₹294.66 · 758 in stock | View |
 | TPT1462VQ-SO1R-S#C519335273PEAK · SOP-8 | 3PEAK | SOP-8 | 7 | ₹282.39 · 7 in stock | View |
 | MCP2544WFDT-E/SN#C623206MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 37 | ₹192.31 · 37 in stock | View |
