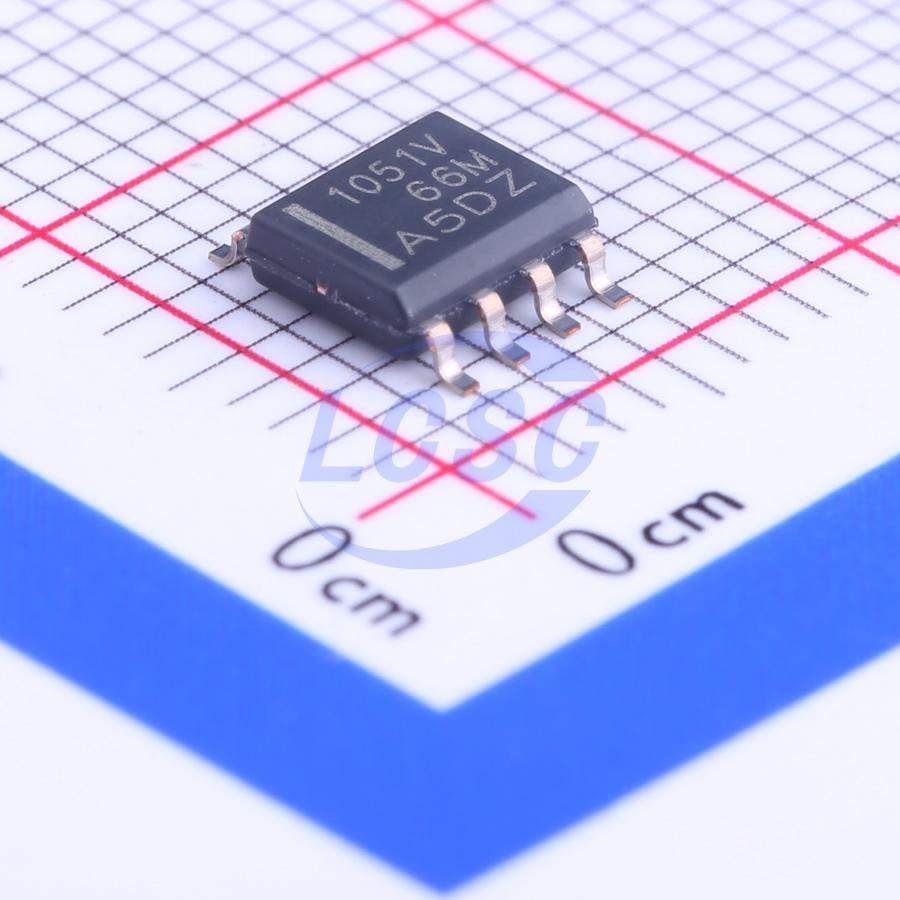

TCAN1051HGVDR

4.5V~5.5V CAN Transceiver 5Mbps SOIC-8 Drivers, Receivers, Transceivers RoHS

SOIC-8ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: TCAN1051HGVDR
Store part #: C124013
Package / case: SOIC-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

188 in stock

#C124013

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
1+	₹195.10	₹195.10
10+	₹159.87	₹1,598.70
30+	₹140.52	₹4,215.60
100+	₹118.54	₹11,854.00
500+	₹108.75	₹54,375.00
1,000+	₹104.41	₹1,04,410.00

Quantity (min 1)

1 × ₹195.10

₹195.10

excl. GST

₹230.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TCAN1051HGVDR

₹195.10 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 4.5V~5.5V
Type: CAN Transceiver
Data Rate: 5Mbps
Operating Temperature: -55℃~+125℃
Features: ESD protection;Bus fault protection;TXD dominant timeout;Thermal shutdown protection;Undervoltage Protection;Silent mode
Quiescent Supply Current: 2.5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

This CAN transceiver family meets the ISO11898-2 (2016) High Speed CAN (Controller Area Network) physical layer standard. All devices are designed for use in CAN FD networks up to 2 Mbps (megabits per second). Devices with part numbers that include the "G" suffix are designed for data rates up to 5 Mbps, and versions with the "V" have a secondary power supply input for I/O level shifting the input pin thresholds and RXD output level. This family of devices comes with silent mode which is also commonly referred to as listen-only mode. Additionally, all devices include many protection features to enhance device and network robustness.

Applications

All devices support highly loaded CAN networks
Heavy Machinery ISOBUS Applications – ISO 11783
Industrial Automation, Control, Sensors and Drive Systems
Building, Security and Climate Control Automation
Telecom Base Station Status and Control
CAN Bus Standards Such as CANopen, DeviceNet, NMEA2000, ARNIC825, ISO11783

Key features

Meets the ISO 11898-2:2016 and ISO 11898-5:2007 Physical Layer Standards
'Turbo' CAN:
All Devices Support Classic CAN and 2 Mbps CAN FD (Flexible Data Rate) and "G" Options Support 5 Mbps
Short and Symmetrical Propagation Delay Times and Fast Loop Times for Enhanced Timing Margin
Higher Data Rates in Loaded CAN Networks
I/O Voltage Range Supports 3.3 V and 5 V MCUs
Ideal Passive Behavior When Unpowered
Bus and Logic Terminals are High Impedance (no load)
Power Up/Down With Glitch Free Operation On Bus and RXD Output
Protection Features
HBM ESD Protection: ±16 kV
IEC ESD Protection up to ±15 kV
Bus Fault Protection: ±58 V (non-H variants) and ±70 V (H variants)
Undervoltage Protection on VCC and V10 (V variants only) Supply Terminals
Driver Dominant Time Out (TXD DTO) - Data rates down to 10 kbps
Thermal Shutdown Protection (TSD)
Receiver Common Mode Input Voltage: ±30 V
Typical Loop Delay: 110 ns
Junction Temperatures from -55°C to 150°C
Available in SOIC(8) Package and Leadless VSON(8) Package (3.0 mm × 3.0 mm) with Improved Automated Optical Inspection (AOI) Capability
