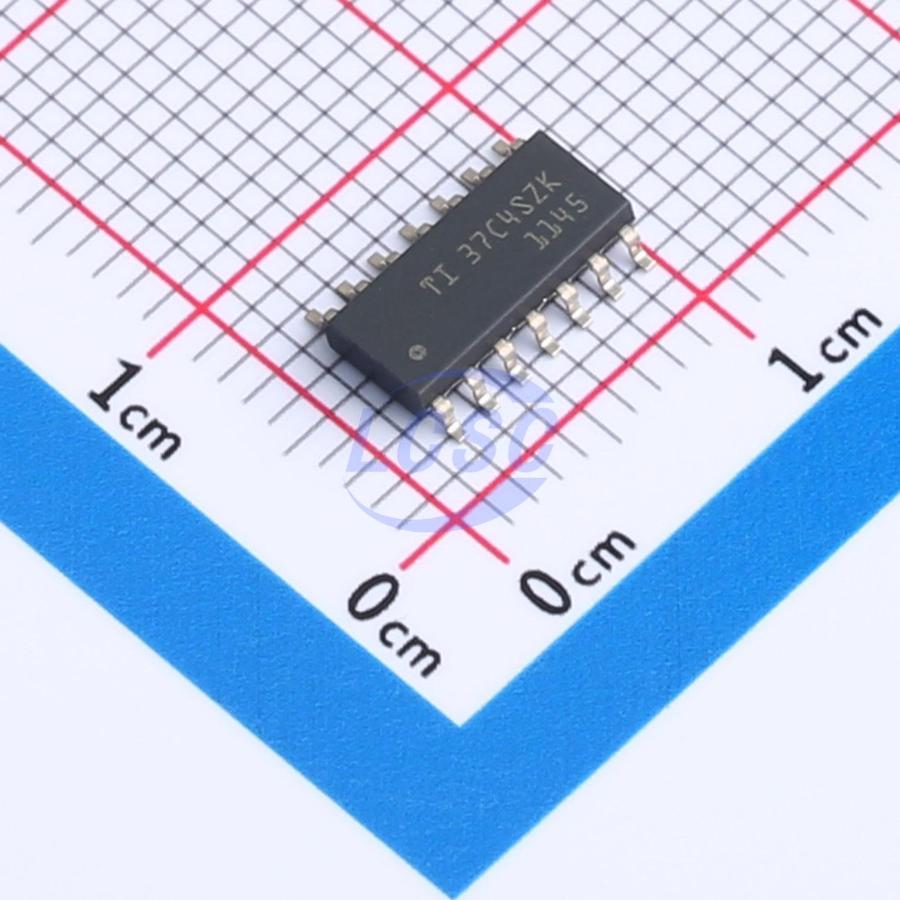

TCAN1145DRQ1

CAN FD Transceiver 4.5V~28V 5Mbps SOIC-14 Drivers, Receivers, Transceivers RoHS

SOIC-14ROHS CompliantActive

Enhanced CAN FD Transceiver with Partial Networking Functionality for TCAN114x-Q1

Manufacturer: TI
Manufacturer part #: TCAN1145DRQ1
Store part #: C3234148
Package / case: SOIC-14
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,091 in stock

#C3234148

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹98.01	₹98.01
10+	₹87.82	₹878.20
30+	₹82.40	₹2,472.00
100+	₹76.11	₹7,611.00
500+	₹73.29	₹36,645.00
1,000+	₹71.98	₹71,980.00

Quantity (min 1)

1 × ₹98.01

₹98.01

excl. GST

₹115.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TCAN1145DRQ1

₹98.01 for 1 + GST

Specifications

Type: CAN FD Transceiver
Voltage - Supply: 4.5V~28V
Data Rate: 5Mbps
Operating Temperature: -40℃~+150℃
Features: Low-power mode;Wake-up function;Local wake-up;SPI interface;Bus fault protection;TXD dominant timeout;ESD protection
Quiescent Supply Current: 3.5uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.176 g

Overview

The TCAN114x-Q1 is a family of enhanced high-speed CAN FD transceivers supporting data rates up to 5 Mbps. These devices are configured via SPI to enable full feature support. By applying an appropriate voltage to the V₁₀ pin, the TCAN114x-Q1 supports processor IO nominal voltages from 1.8V to 5V, enabling the use of low-power processors. The TCAN1145-Q1 and TCAN1146-Q1 transceivers support selective wake functionality (wake-up based on WUF frames). This feature enables system partitioning into local networks, allowing operation with fewer active nodes while the remaining nodes remain in a low-power sleep mode. The transceiver and selective wake functionality comply with the ISO 11898-2:2016 standard. The TCAN1144-Q1 and TCAN1146-Q1 are full-featured devices with watchdog and advanced bus diagnostic capabilities. For debugging purposes, advanced bus fault diagnosis and communication features can be used to identify specific bus faults. The TCAN114x-Q1 is a register-compatible family of enhanced high-speed CAN FD transceivers, giving system designers the flexibility to achieve desired functionality with minimal software changes and no hardware modifications. The TCAN1144-Q1 and TCAN1146-Q1 inhibit (INH) pin can be used to enable node power supplies, or configured as a limp-home pin activated upon watchdog fault.

Applications

Body electronics and lighting
Automotive infotainment systems and instrument clusters
Hybrid, electric, and powertrain systems
Industrial transportation

Key features

AEC-Q100 (Grade 1): compliant with automotive application requirements
Compliant with ISO 11898-2:2016
TCAN1145-Q1 and TCAN1146-Q1 support selective wake/local networking while transmitting/receiving error-free Classic CAN or CAN FD data
CAN FD communication rate up to 5 Mbps
Functional Safety Quality Managed (TCAN1144-Q1 and TCAN1146-Q1) – documentation to assist functional safety system design
Functional Safety Ready (TCAN1145-Q1) – documentation to assist functional safety system design
TCAN114x-Q1 supports processor IO nominal voltages from 1.8V to 5V
Wide operating voltage range:
±58V bus fault protection
±12V common mode
TCAN1144-Q1 and TCAN1146-Q1 support:
Watchdog: timeout, window, and Q&A bus fault diagnostics and reporting
Programmable INH/LIMP pin
14-pin SOIC, VSON, and SOT23 packages
VSON package for enhanced AOI capability
