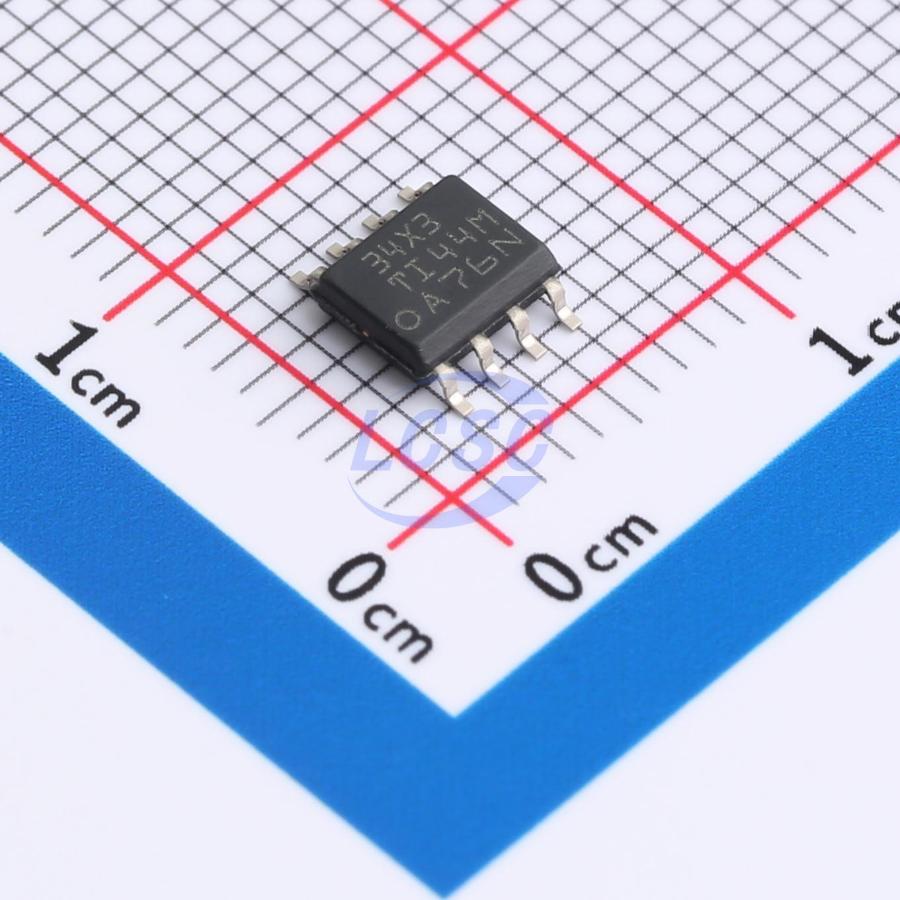

TCAN3413DR

The TCAN3413 and TCAN3414 are controller area network (CAN) FD transceivers that are compatible with the physical layer requirements of the ISO 11898-2:2016 high-speed CAN specification. The transceivers have certified electromagnetic compatibility (EMC) operation for use with classical CAN and CAN FD networks up to 5 megabits per second (Mbps). Up to 8 Mbps operation in simpler networks is possible with these devices. The TCAN3413 includes internal logic level translation through the V₁₀ pin, allowing the direct interface of the transceiver I/O to 1.8-V, 2.5-V, or 3.3-V logic levels. The transceivers support a low-power standby mode, and a wake over CAN which is compliant to the ISO 11898-2:2016 defined wake-up pattern (WUP). The transceivers include thermal-shutdown (TSD), TXD-dominant time-out (DTO), supply undervoltage detection, and ±58-V bus fault protection. The devices have defined fail-safe behavior in supply undervoltage or floating pin scenarios. The transceivers are available in industry-standard SOIC-8, the VSON-8, and a space-saving small footprint SOT-23 packages.

Applications

• Factory automation
• Grid Infrastructure
• Industrial transport
• Motor drives

Key features

• 3.3 V Single supply operation – Eliminates the 5 V regulator saving BOM cost and reducing PCB space
• Excellent EMC operation in homogeneous and heterogeneous networks
• Compatible with the requirements of ISO 11898-2:2016 physical layer standard
• Support of classical CAN and optimized CAN FD performance at 2, 5, and 8 Mbps
• Short and symmetrical propagation delays for enhanced timing margin
• TCAN3413: I/O voltage range supports: 1.7 V to 3.6 V
• Receiver common mode input voltage: ±30 V
• Protection features:
• Bus fault protection: ±58 V
• IEC ESD protection on bus pins: ±10 kV
• Undervoltage protection
• TXD-dominant time-out (DTO)
• Thermal-shutdown protection (TSD)
• Operating modes:
• Normal mode
• Low power standby mode supporting remote wake-up request
• Ultra-low power shutdown mode: TCAN3414 only
• Optimized behavior when unpowered
• Bus and logic pins are high impedance (no load to operating bus or application)
• Hot-plug capable: power up or down glitch-free operation on bus and RXD output
• 8-Pin SOIC, small footprint SOT-23 and lead less VSON-8 package with improved automated optical inspection (AOI) capability
