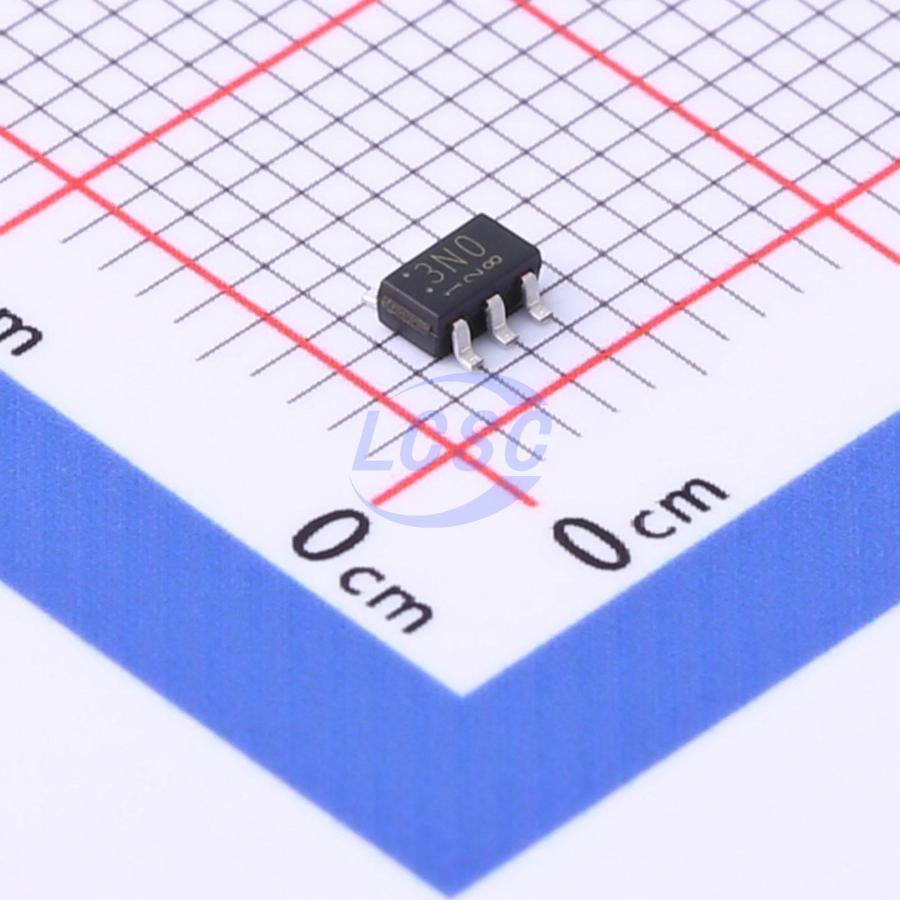

TCR2EF30,LM(CT

3V Positive Fixed SOT-25-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-25-5ROHS CompliantActive

200 mA CMOS Low Dropout Regulator with Fast Load Transient Response

Manufacturer: TOSHIBA
Manufacturer part #: TCR2EF30,LM(CT
Store part #: C2692312
Package / case: SOT-25-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,285 in stock

#C2692312

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.04	₹70.20
50+	₹11.38	₹569.00
150+	₹10.05	₹1,507.50
500+	₹9.06	₹4,530.00
3,000+	₹7.58	₹22,740.00
6,000+	₹7.18	₹43,080.00

Quantity (min 5, multiples of 5)

5 × ₹14.04

₹70.20

excl. GST

₹82.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TCR2EF30,LM(CT

₹70.20 for 5 + GST

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 35uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 200mA
Features: Enable control;Over Current Protection;Output discharge
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

The TCR2EF and TCR2EE series are CMOS single output voltage regulators with an on/off control input, featuring low dropout voltage, low output noise voltage and fast load transient response. These voltage regulators are available in fixed output voltages between 1.0 V and 5.0 V and capable of driving up to 200 mA. They feature overcurrent protection, an Auto-discharge function. The TCR2EF and TCR2EE series has a low dropout voltage of 180 mV (2.5 V output, IOUT = 150 mA) with low output noise voltage of 35 μVrms (2.5 V output) and a load transient response of only ΔVOUT = ±60 mV (IOUT = 1 mA ⇔ 150 mA, COUT = 1.0 μF). Thus, the TCR2EF and TCR2EE series are suitable for sensitive power supply such as Analog and RF applications.

Applications

Analog and RF applications

Key features

Low dropout voltage:
VDO = 150 mV (typ.) at 3.0 V output, IOUT = 150 mA (SMV (SOT - 25)(SC - 74A))
VDO = 180 mV (typ.) at 2.5 V output, IOUT = 150 mA (ESV (SOT - 553))
VDO = 230 mV (typ.) at 1.8 V output, IOUT = 150 mA
VDO = 380 mV (typ.) at 1.2 V output, IOUT = 150 mA
VDO = 510 mV (typ.) at 1.0 V output, IOUT = 150 mA
Low output noise voltage (VNO = 35 μVrms (typ.) at 2.5 V output, IOUT = 10 mA, 10 Hz < f < 100 kHz)
Fast load transient response (ΔVOUT = ±60 mV (typ.) at IOUT = 1 mA ⇔ 150 mA, COUT = 1.0 μF)
Low quiescent bias current (IB = 35 μA (typ.) at IOUT = 0 mA)
High ripple rejection ratio (73 dB (typ.) at 2.5 V output, IOUT = 10 mA, f = 1 kHz)
Wide range output voltage line up (VOUT = 1.0 to 5.0 V)
High VOUT accuracy ±1.0% (1.8 V ≤ VOUT)
Overcurrent protection
Auto - discharge
Pull down connection between CONTROL and GND
Ceramic capacitors can be used (CIN = 0.1 μF, COUT = 1.0 μF)
Small package ESV (SOT - 553) (1.6 mm × 1.6 mm × 0.55 mm)
General package SMV (SOT - 25) (2.8 mm × 2.9 mm × 1.1 mm)
